Chapter 8 Analog Input Option Board (XBO-AD02A)
8.8 Operation Parameter Setting
Analog input option board’s operation parameters can be specified through XG5000’s [I/O parameters].
(1) Settings
For the user’s convenience, XG5000 provides GUI (Graphical User Interface) for parameters setting
of analog option board. Setting items available through [I/O parameters] on the XG5000 project
window are as described below in the table.
Item Details
(a) Specify the following setting items necessary for the option board
operation.
1) Channel Enable/Disable setting
2) Setting ranges of input voltage/current
3) Output data format setting
4) Count averaging
5) Input gain
(b) If downloading is complete, Parameter set by user in XG5000 is
saved in Flash memory of XGB main unit.
(2) Usage of [I/O Parameter]
(a) Create a project with XG5000. See XG5000 Program Manual for project creation.

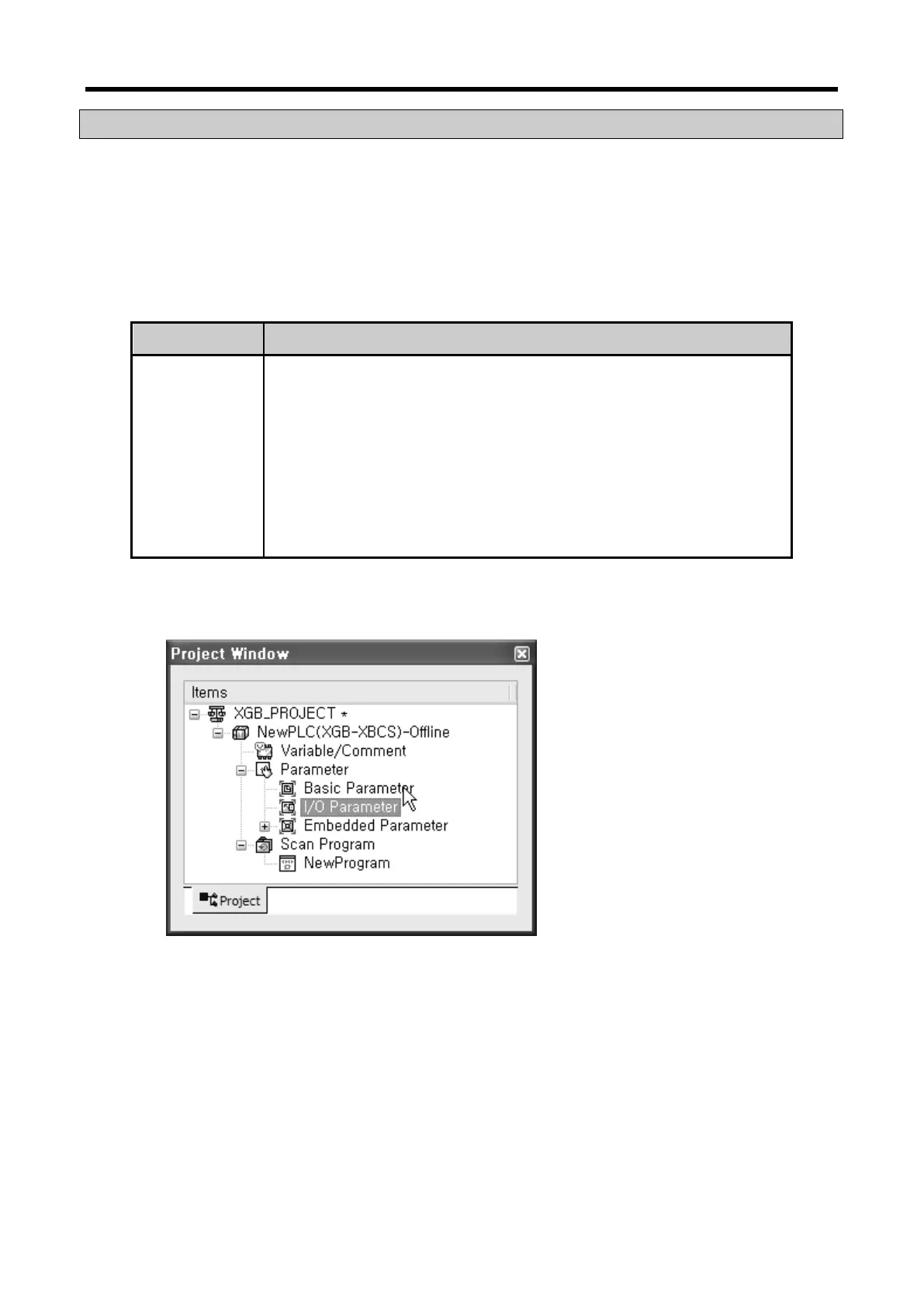

(b) In the Project window, double-click [I/O Parameter].
8 - 13
