XGB Analog edition manual

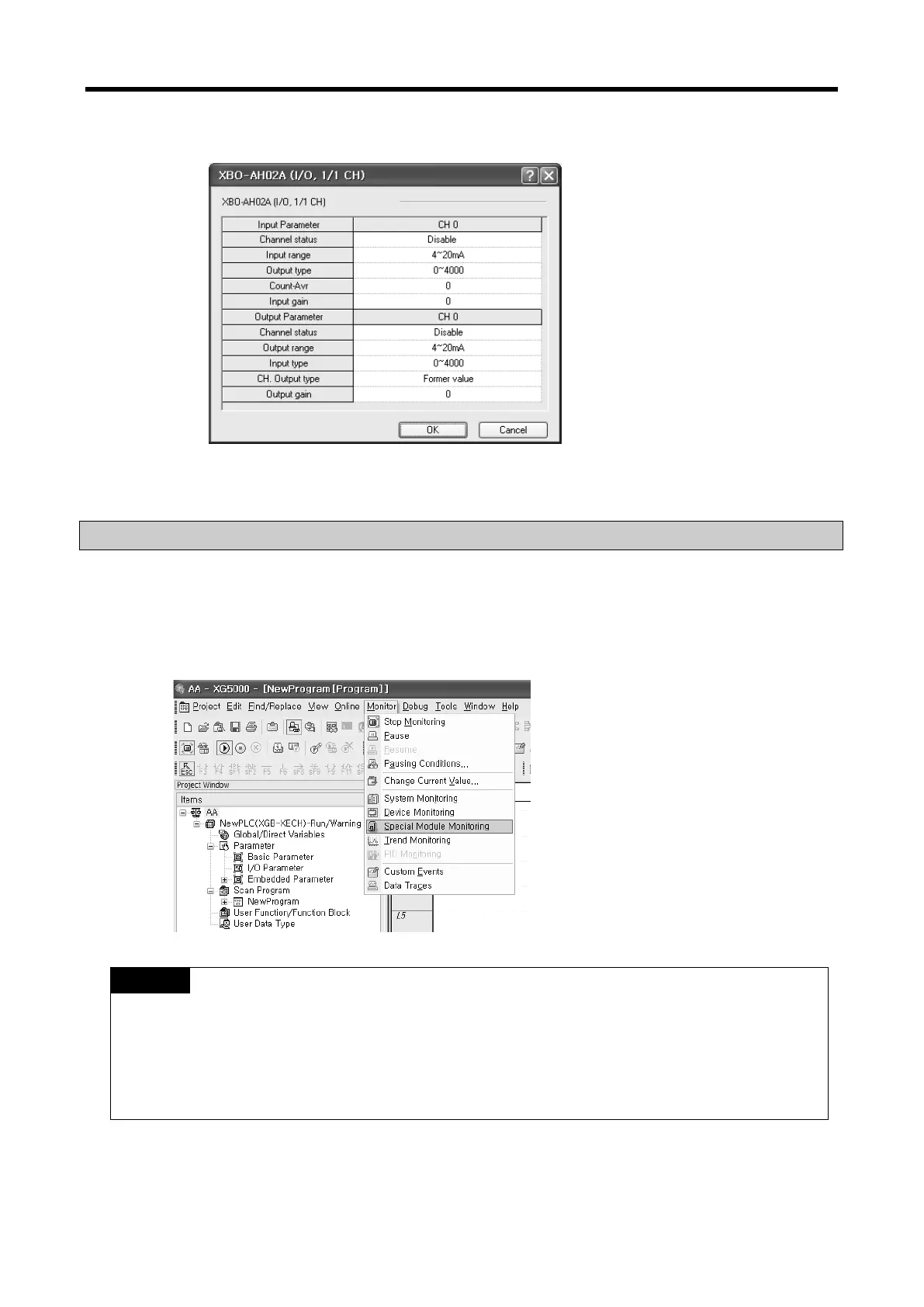

(f) The window below where parameters can be set up by channel appears. Click the item to set
up. The parameters which can be set up appear by item.
The functions of the special module monitor are as follows.
(1) Start-up of [Special Module Monitor]
Select [Online] -> [Connect], and [Monitor] -> [Special Module Monitor] to start up. [Special Module
Monitor] menu is enabled only in the [Online] condition.
Note
1) The screen may not function properly if the system resources are not sufficient. In this case, close
the screen, exit other applications, and rerun XG5000.
2) The I/O parameters set up in [Special Module Monitor] condition are temporarily set up for testing
purpose. Therefore, these I/O parameters are deleted after exit from [Special Module Monitor].
3) The test function of the [Special Module Monitor] enables testing analog input option board without
sequence programming.
10.9 Special Module Monitoring Functions
10 - 22
