Chapter14 Analog Output Module (XBF-DV04C/XBF-DC04C)

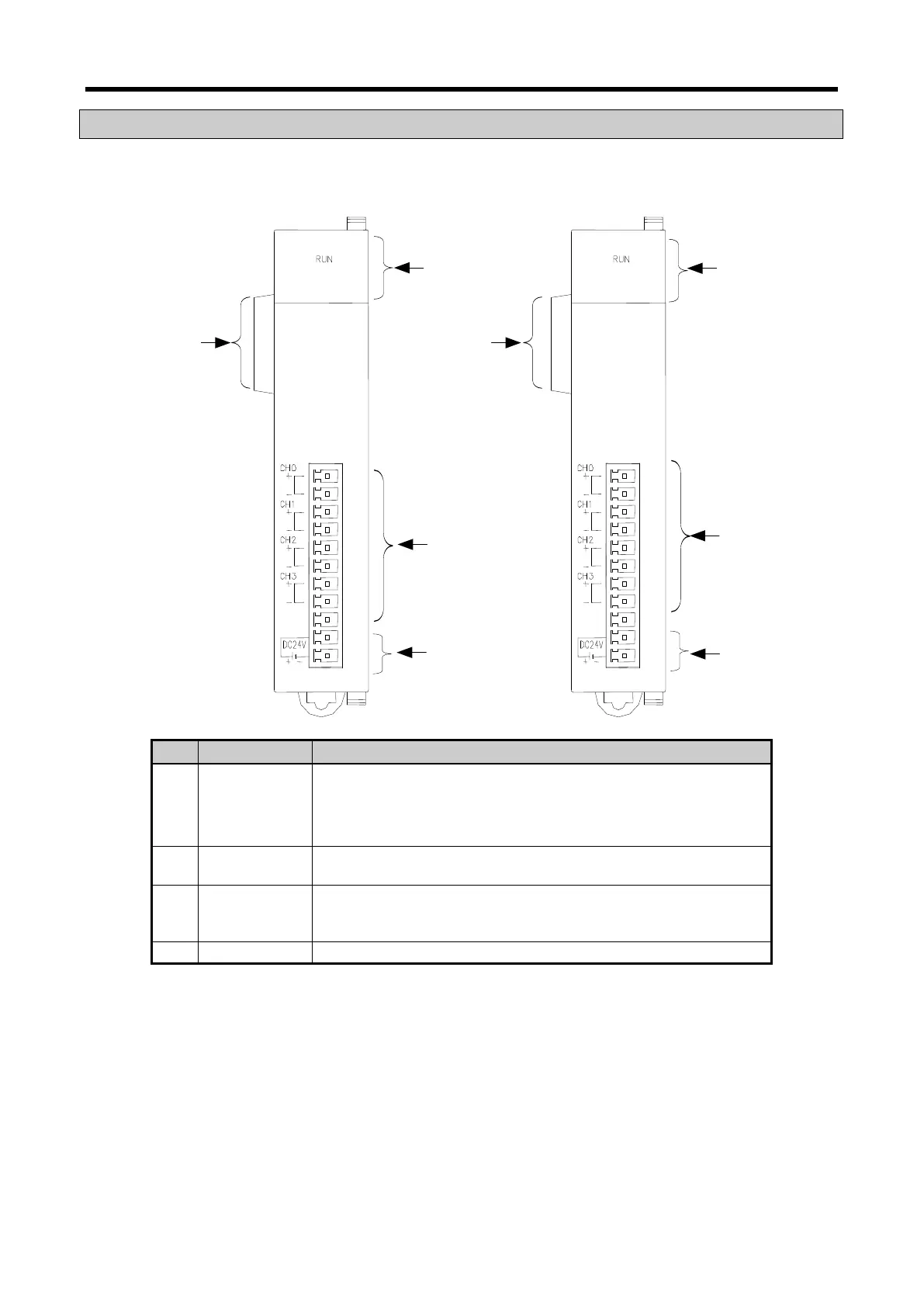

14.3 Name of each Part and Functions
Respective designations of the parts are as described below.
①
②
③
④
XBF-DV04C
XBF-DV04C
①
②
③
④
XBF-DC04C
XBF-DC04C
No.
Name
Description
①
RUN LED
▶
Displays the operation status of analog output module
On: Normal operation
Flickers: Error occurs (Flickering 1s intervals)
Off: Power off or Module error
②
Terminal block
▶
Analog output(voltage, current) terminal, whose respective
channels can be connected with external devices
③
External power
supply
terminal
▶ Terminal for supplying the external DC24V
④
Ext. Connector
▶
Connector for extension modules
14 - 5
