Chap. 6 Analog I/O Module (XBF-AH04A)

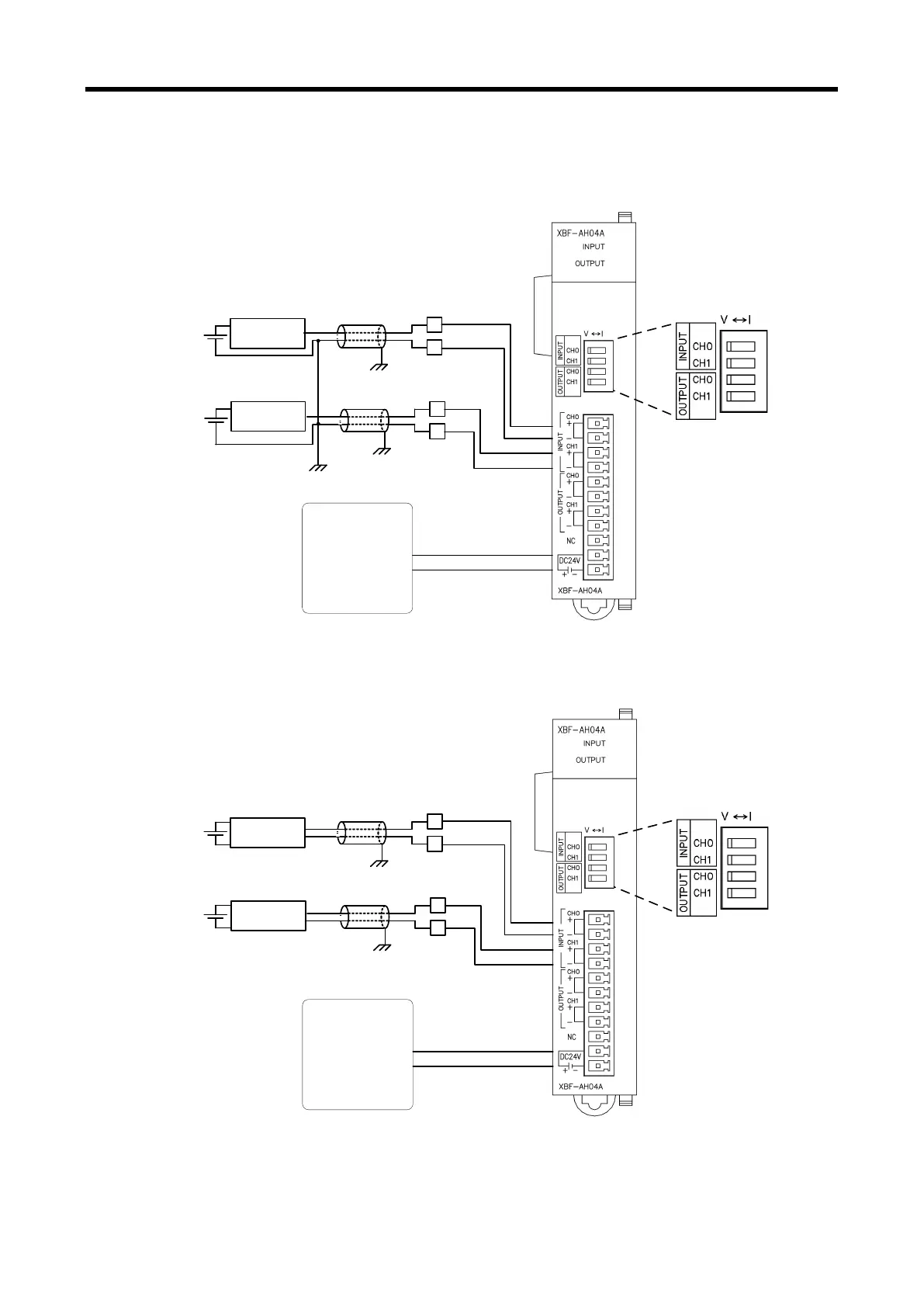

(6) Exemplary Wiring for Analog Input 2-Wire Sensor/Transmission
Same wiring scheme is applied to voltage and current inputs, except that voltage/current setting
switch must be set up accordingly.
+
-
CH0
+
-
CH1
DC power
(For analog module)
CH0+
CH0-
CH1+
CH1-
DC24V+
DC24V-
Voltage/Current
selection switch
DC
+
-
DC
+
-
2-Wire
Transmitter
2-Wire
Transmitter
(7) Exemplary Wiring for Analog Input 4-Wire Sensor/Transmission
Same wiring scheme is applied to voltage and current inputs, except that voltage/current setting
switch must be set up accordingly.
+
-
CH0
+
-
CH1
DC power
(For analog module)
CH0+
CH0-
CH1+
CH1-
DC24V+
DC24V-
Voltage/Current
selection switch
DC
+
-
4-Wire
Transmitter
4-Wire
Transmitter
DC
+
-
6 - 19
