Chap. 6 Analog I/O Module (XBF-AH04A)
`

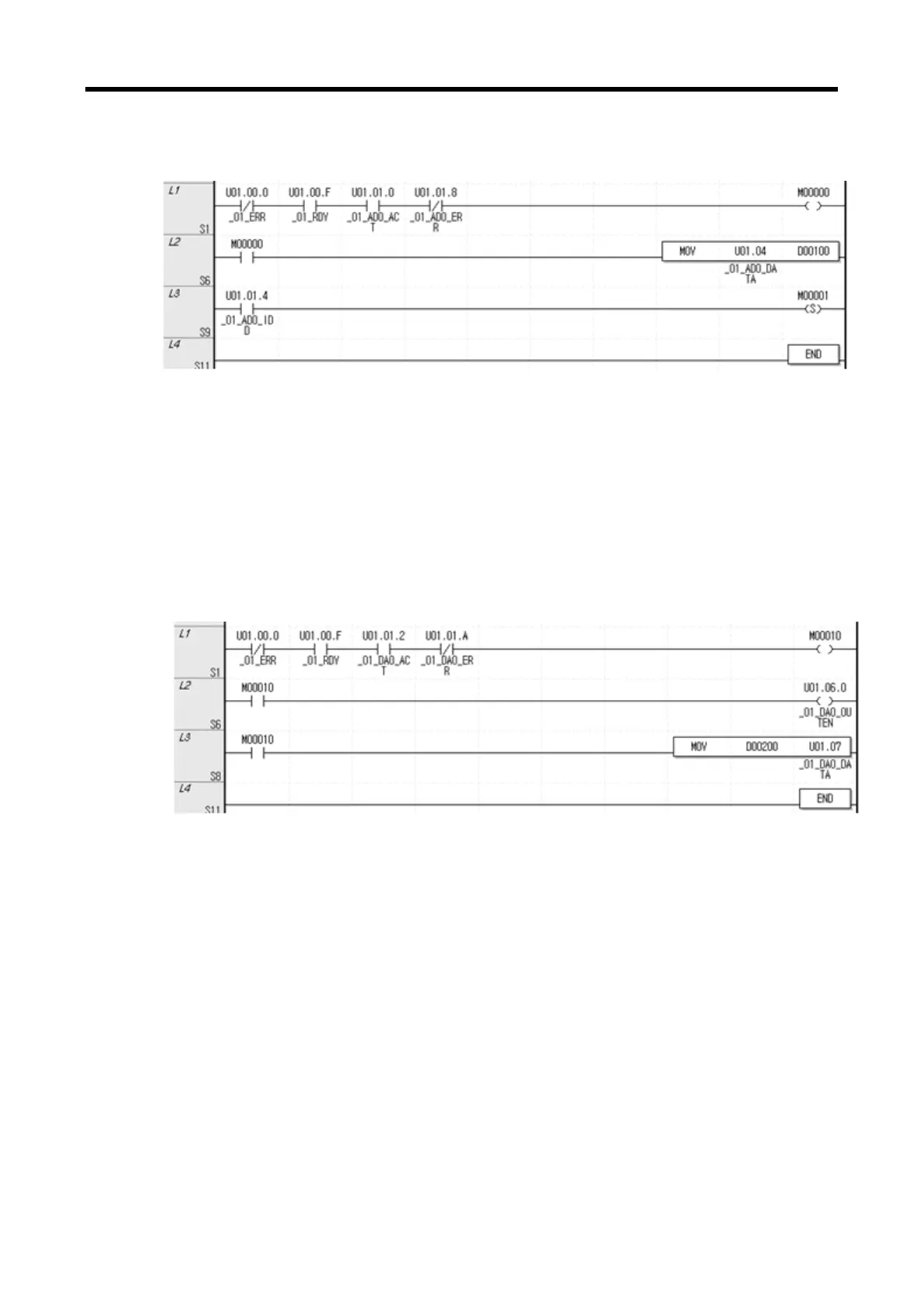

(2) Sample Input Program
(a) When the module is in normal operation, M0000 is turned On.
U01.00.0(Module Error) = Off
U01.00.F(Module Ready) = On
U01.01.0(Input Channel 0 in-operation) = On
U01.01.8(Input Channel 0 Error) = Off
(b) When M0000 is ON, Input Channel 0 Converted Value(U01.04) is moved to D00100.
(c) If open-wire error occurs in channel 0, U01.01.4(channel 0 open-wire) is ON, and M0001 bit is
set.
(3) Sample Output Program
(a) When the module is in normal operation, M00010 is turned ON.
U01.00.0(Module Error) = Off
U01.00.F(Module Ready) = On
U01.01.2(Output Channel 0 in-operation) = On
U01.01.A(Output Channel 0 Error) = Off
(b) When M00010 is On, channel 0 output status setting (U01.06.0) is turned ON and output is
permitted.
(c) When M00010 is On, the data in D00200 is transmitted to Output Channel 0 input value
(U01.07) and outputted.
Input CH0 program
Output CH0 program
6 - 41
