XGB Analog edition manual

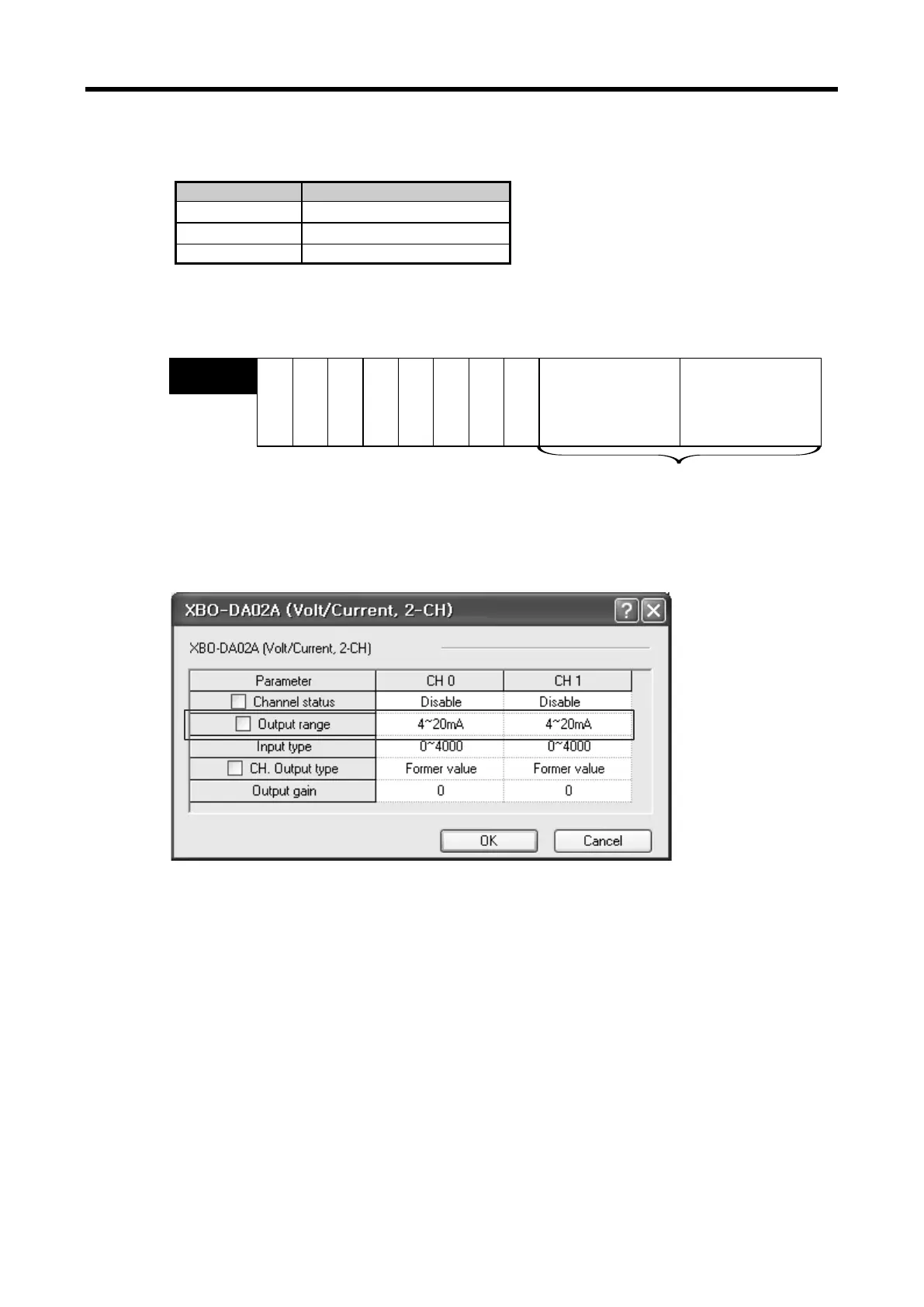

(2) Output range setting area (address 1)
(a) Set the type of output range with the following code
Bit (HEX)
Input range
0000 (0)
4 ~ 20
㎃
0001 (1)
0 ~ 20
㎃
0010 (2)
0 ~ 10 V
(b) If you set more than 3, 0 (4~20) will be set forcibly
But, U0X.01.A~ U0X.01.B (Setup error flag) will be ON.
(c) When using PUT instruction, address is as follows.
bit15
bit14
bit13
bit12 bit11 bit10 bit9 bit8 bit7 bit6
bit5
bit4
bit3
bit2 bit1 bit0
Output CH 0
1
Output range (4bit per channel)
0
: 4 ~ 20 
1 : 0 ~ 20 
2 : 0 ~ 10 V
Output CH 1-
-
-- ---
-
(d) The values set in bit 8~15 are ignored.
(e)This area is same as setting in “Output range” of I/O parameter
9 - 26
