Chapter 10 Analog I/O Option Board (XBO-AH02A)
(b) If you set more than 4, 0 (former value) will be set forcibly.
But, U0X.01.A (Setup error flag) will be ON.

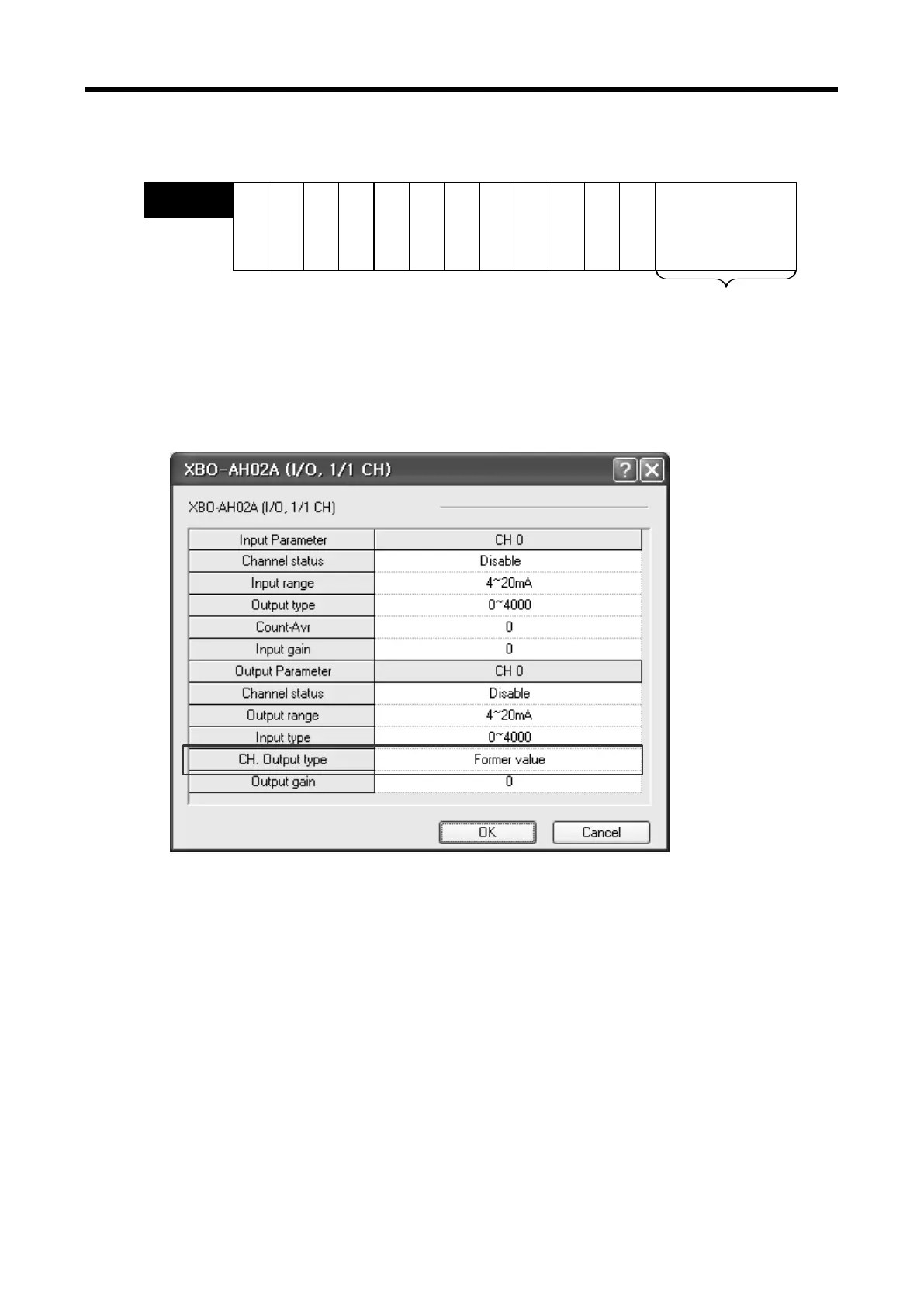

(c) When using PUT instruction, address is as follows
bit15 bit14 bit13 bit12 bit11 bit10 bit9 bit8
bit7
bit6
bit5 bit4 bit3 bit2 bit1 bit0
Output CH 0
8
Output CH state setting( 4 bit)
0 : Former value
1 : min value
2 : middle value
3 : max value
----
----
(d) The values set in bit 8~15 are ignored.
(e)This area is same as setting in “CH. Output type” of I/O parameter
10 - 39
