Chapter 2 Analog Input Module (XBF-AD04A)
2 - 7
2.5.2 If the range is DC 0 ~ 20mA

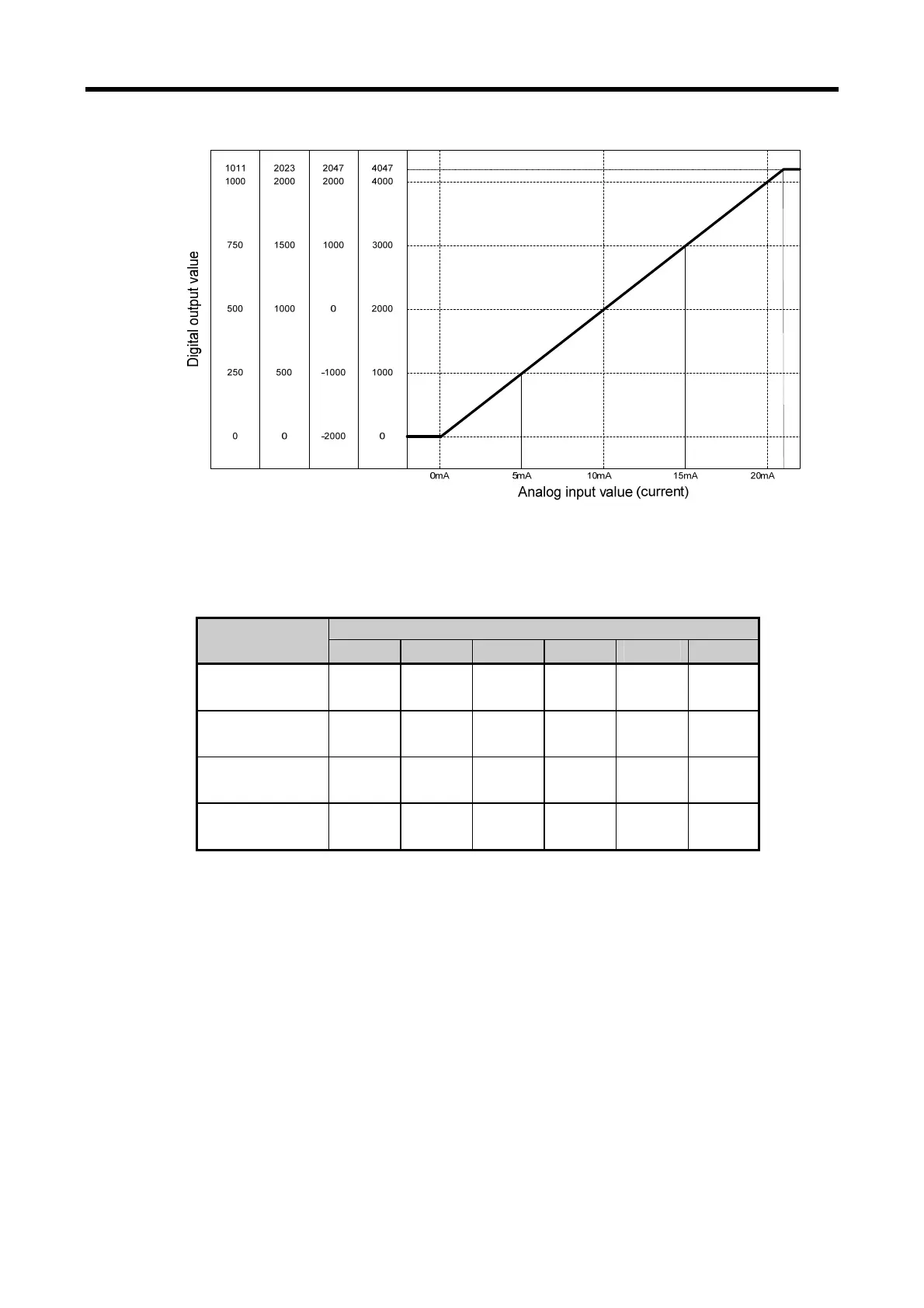

▪ Digital output value for current input characteristic is as specified below.
(Resolution (based on 1/4000): 5 ㎂)
Digital output
range
Analog input current (㎃)
0 5 10 15 20 20.23
Unsigned value
(0 ~ 4047)
0 1000 2000 3000 4000 4047
Signed value
(-2000 ~ 2047)
-2000 -1000 0 1000 2000 2047
Precise value
(0 ~ 2023)
0 500 1000 1500 2000 2023
Percentile value
(0 ~ 1011)
0 250 500 750 1000 1011
