Lucent Technologies Round Cell Batteries
6 - 8 Installation Issue 3 December 1999
Installation Guidelines, continued
Bases and Cable
Guards
Bases are fastened together by inserting a plastic dovetail key into the
cavity formed by two adjoining base shelves. The modules can be
combined to provide as many mounting positions as needed, and cable
guards can be assembled directly to the stands. See Figure 6-4.

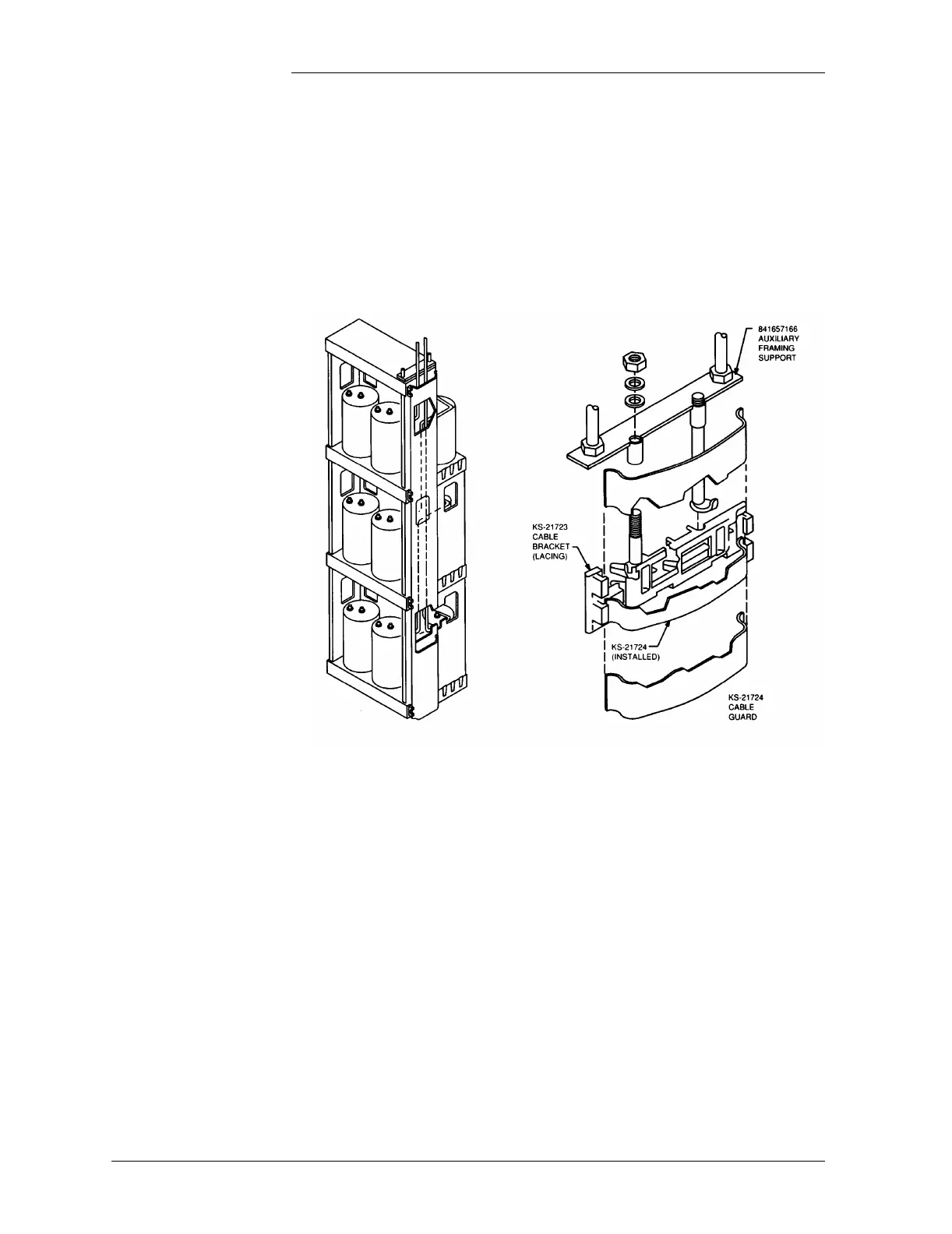

Figure 6-4: Typical Method of Supporting Cable Guard
and Equipment on Top of a Round Cell Battery Stand
