Lucent Technologies Round Cell Batteries
Issue 3 December 1999 Installation 6 - 9
Installation Guidelines, continued
Soft Site
Installations
For soft-site installations, the stands can be arranged as follows:
• free-standing 4-tier, 2-row (except with List 1S cells)
• free-standing 3-tier, 2-row
• free-standing 2-tier, 2-row
• 2-tier, single-row for mounting against a wall
Additional bracing is required for earthquake and hardened-site
installations. Figure 6-5 shows an array of stands with earthquake braces
installed. (Consult your Lucent Technologies Systems Account
Representative for additional information.)

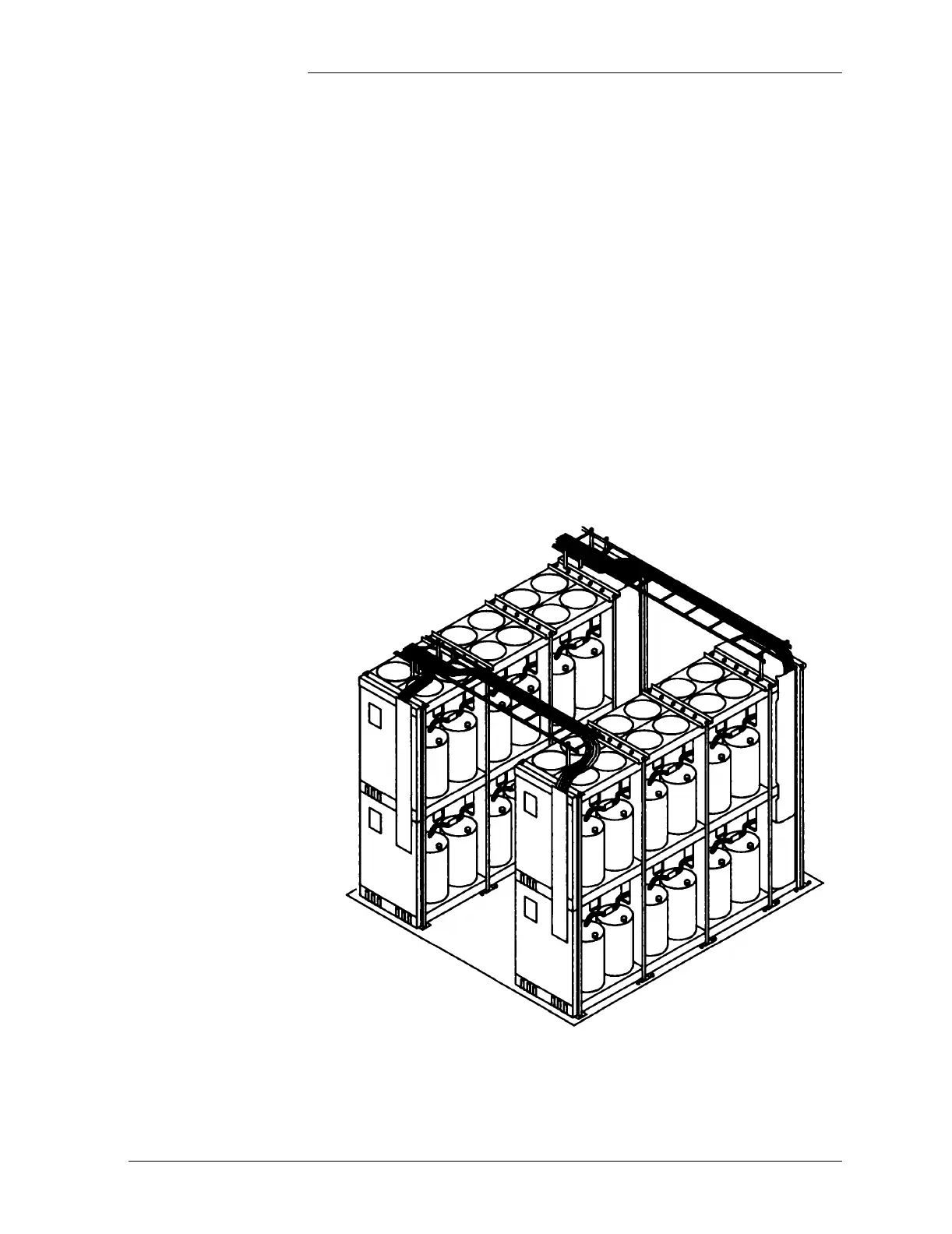

Figure 6-5: Battery Stands Showing Earthquake
Bracing and Cable Routing
