Lucent Technologies Round Cell Batteries
Issue 3 December 1999 Installation 6 - 11
Orienting and Spacing Cells in Stands, continued
Black and Orange
Plugs
The Round Cell is shipped with two types of plugs installed. The black
plug is solid and the orange shipping plug is vented. After unpacking,
orient the cell on the stand for proper polarity (see Figure 6-6). Once the
cells are properly oriented in the stand, insure that the orange plug is in
the hole facing the aisle. The black plug is installed in the other hole. In
some arrangements, the cell orientation will not allow removal of the
black plug after the intercell connectors are installed (see Figure 6-6).
This is not a problem since removal of this plug is not required or
recommended during normal maintenance.

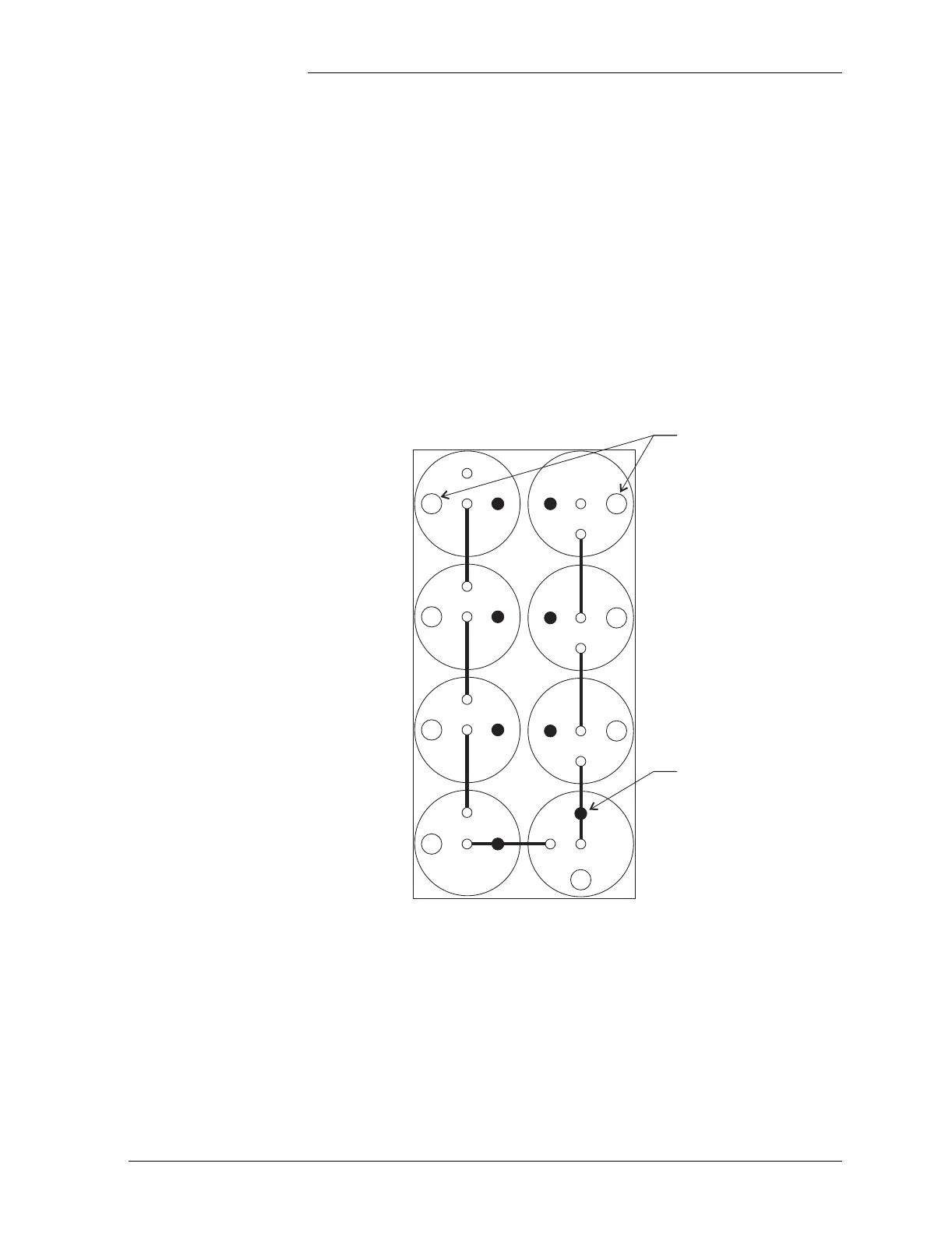

Figure 6-6: Round Cell Orientation
Black Plug
Orange plug must be removed and vent
funnel installed before initial charge.
Orange Plug or
Vent Funnel
Facing Aisle
