ND30PNET-09 - User's Manual
10
6 OPERATION OF THE METER

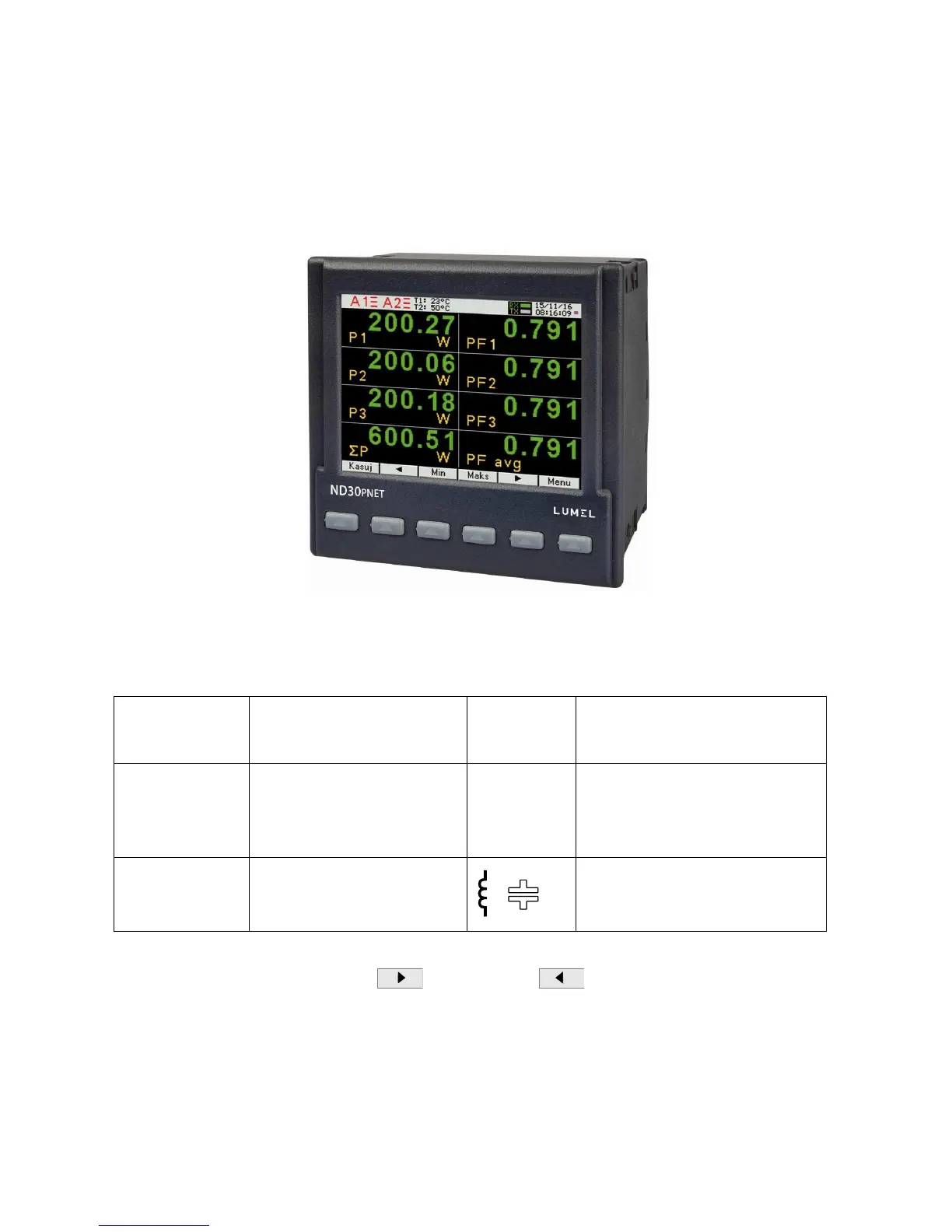

6.1 Front panel
Fig.8. Front panel
ND30PNET meter has 6 buttons and a graphical color display. Description of the front panel:
f1,...,f8
8 display fields - digits for
readings and settings,
DMD
indicator of averaged quantity
(Demand)
V,A,W,var,
VA, Wh, varh,
Hz,
units of displayed quantities
k, M
kilo = 10
3,
Mega = 10
6
U1,I1, P1,
.....EnQ
markings of displayed
parameters
markers of the type of load
inductive, capacitive
The values of measured parameters are presented on active pages selected by
subsequent pressing of the buttons (next page ) or (previous page).
Page size is determined by 8 quantities selected from Table 1 and displayed on the screen.
Defining pages has been described under Displaying. The buttons of the meter can perform
different functions, depending on the site of application. Functions are described on the bar at
the bottom of the screen. If no description is present, it means that the button is inactive at the
given moment.
