7.5 Displaying
In this group we configure the pages displayed during normal operation of the meter.

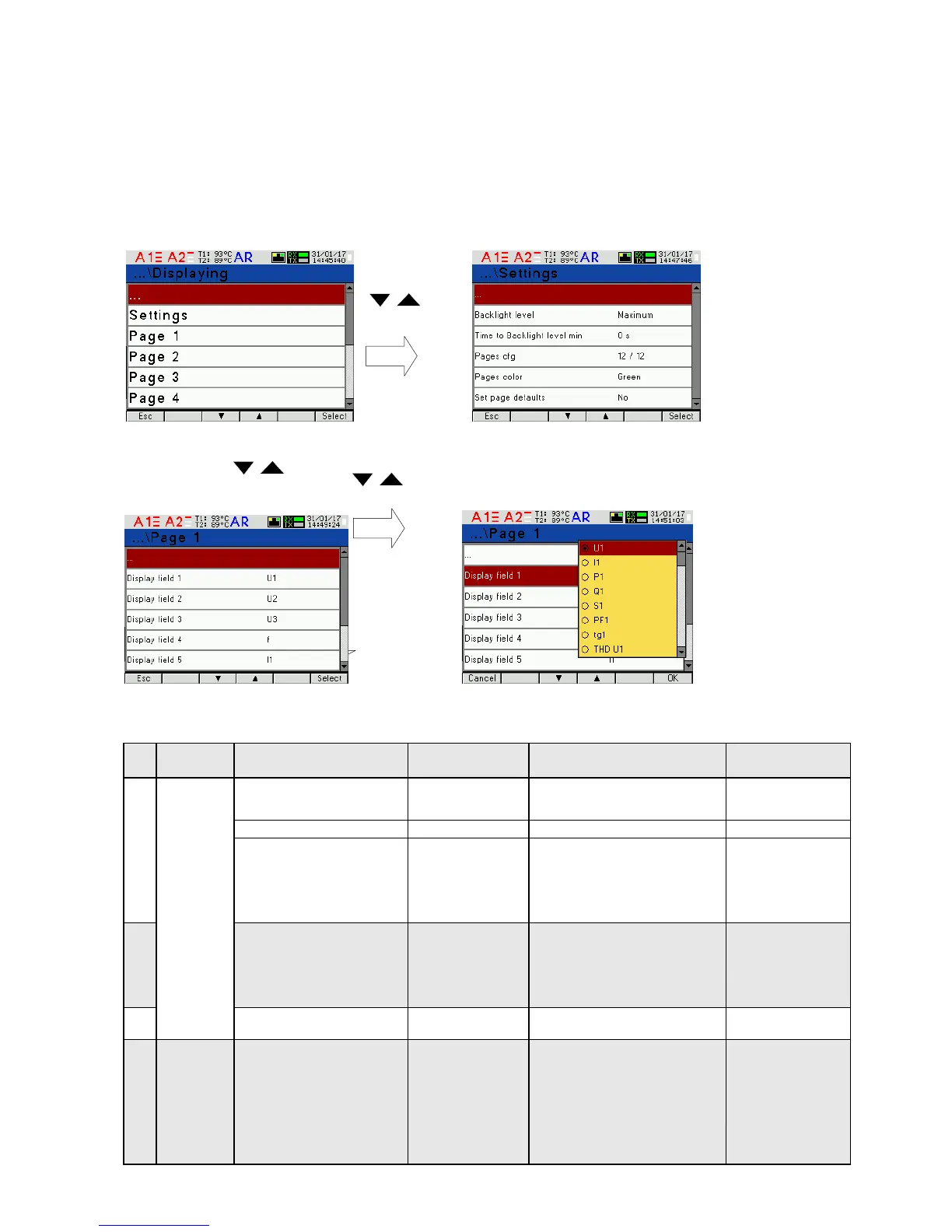

Fig.19. Screens of Displaying group
Table 4
No.
Parameter name
Range
Notes /
description
Default
value
1
Settings
Backlight level
Minimum, Medium,
Maximum
Maximum
Time to Backlight level min
0 .. 9999
in seconds
0
Pages cfg
Page 1
Page 2
:
Page 11
Page 12
Selection of pages visualized in
Measurement mode
Page 1
Page 2
:
Page 11
Page 12
2
Pages color
Green
Red
Yellow
:
Olive
Color of values displayed
in Measurement mode
Green
3
Set page defaults
No
Yes
No
4
Page 1
:
:
Page 10
Display field 1
:
:
Display field 8
Off
U1
I1
P1
Q1
:
En S
Selection of quantities
displayed on a chosen
page and field in
accordance with table 5.
Table 6a or 6b
or 6c depending
on connections
layout
the buttons
and Select
the buttons
and Select
and Select
the buttons
