ND30PNET-09 - User's Manual
5
5 DESCRIPTION OF THE INSTRUMENT
5.1 Current inputs
All current inputs are galvanically isolated (internal current transformers). The meter is adapted
for use with external current transformers / 1 A or 5 A /. Displayed values of the current and the
derived quantities are automatically calculated by the value of the introduced external
transformer ratio.
5.2 Voltage inputs
All voltage inputs are galvanically isolated (internal voltage transformers). Quantities at voltage
inputs are automatically calculated by the amount of introduced ratio of the external voltage
transformer. Voltage inputs are defined in the order as 3x57.7/100 V, 3x230/400V or
3x110/190V; 3x400/690 V.
5.3 External connections diagram
External connections are shown in Figure 4.
2120191816 1715141312
A1
26252422 23
A2
BGNDI
Ethernet /
Profinet
ND30 PNET
L1 L2 L3 N
A
RS485
+
0.. 20
27
296 7431 1185
I
L1
I
L2
I
L3
Pt100
T1
Pt100
T2
Opcja
mA

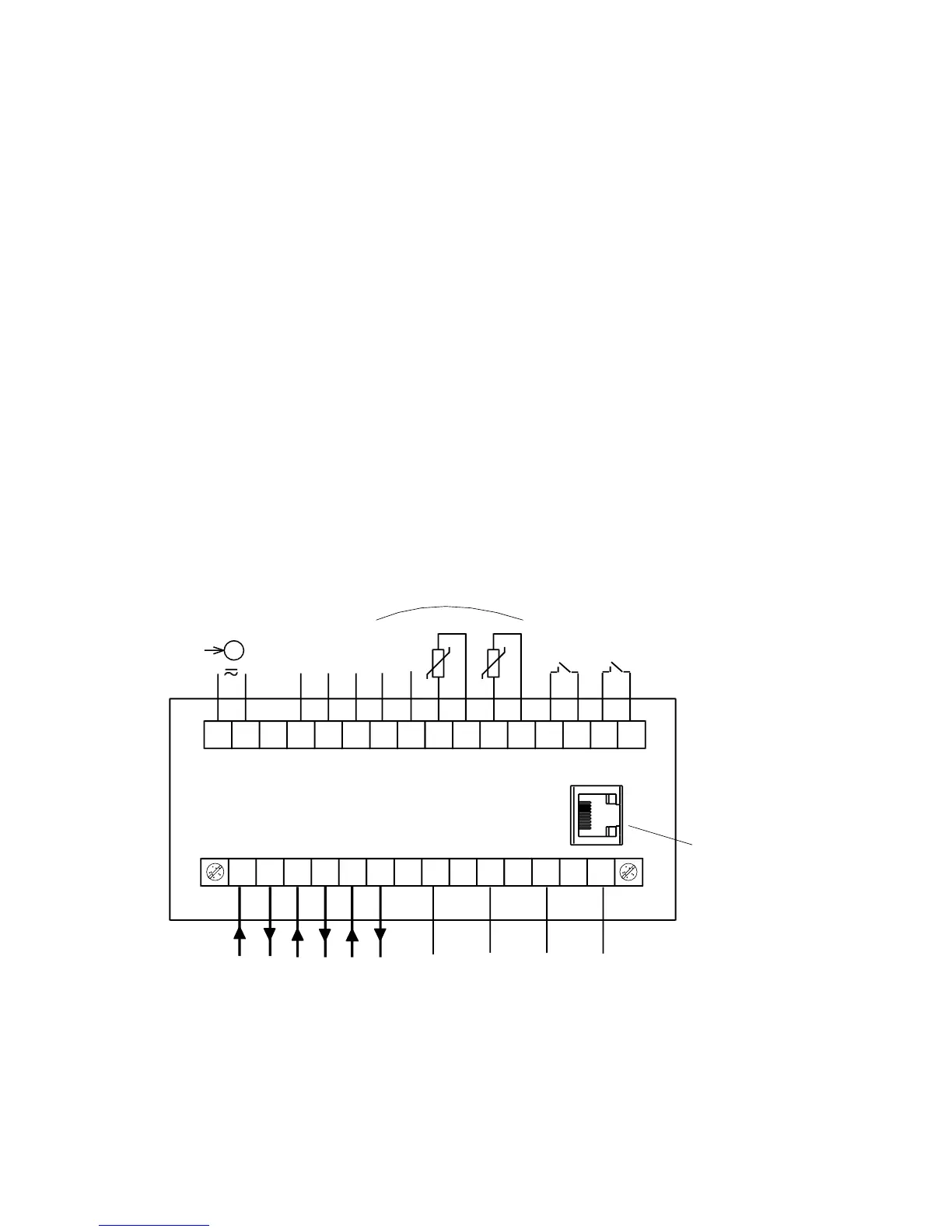

Fig.4. Connection of the meter
option
