ND30PNET-09 - User's Manual
11
Function
Function
Function
Function
Function
Function
of button 1
of button 2
of button 3
of button 4
of button 5
of button 6

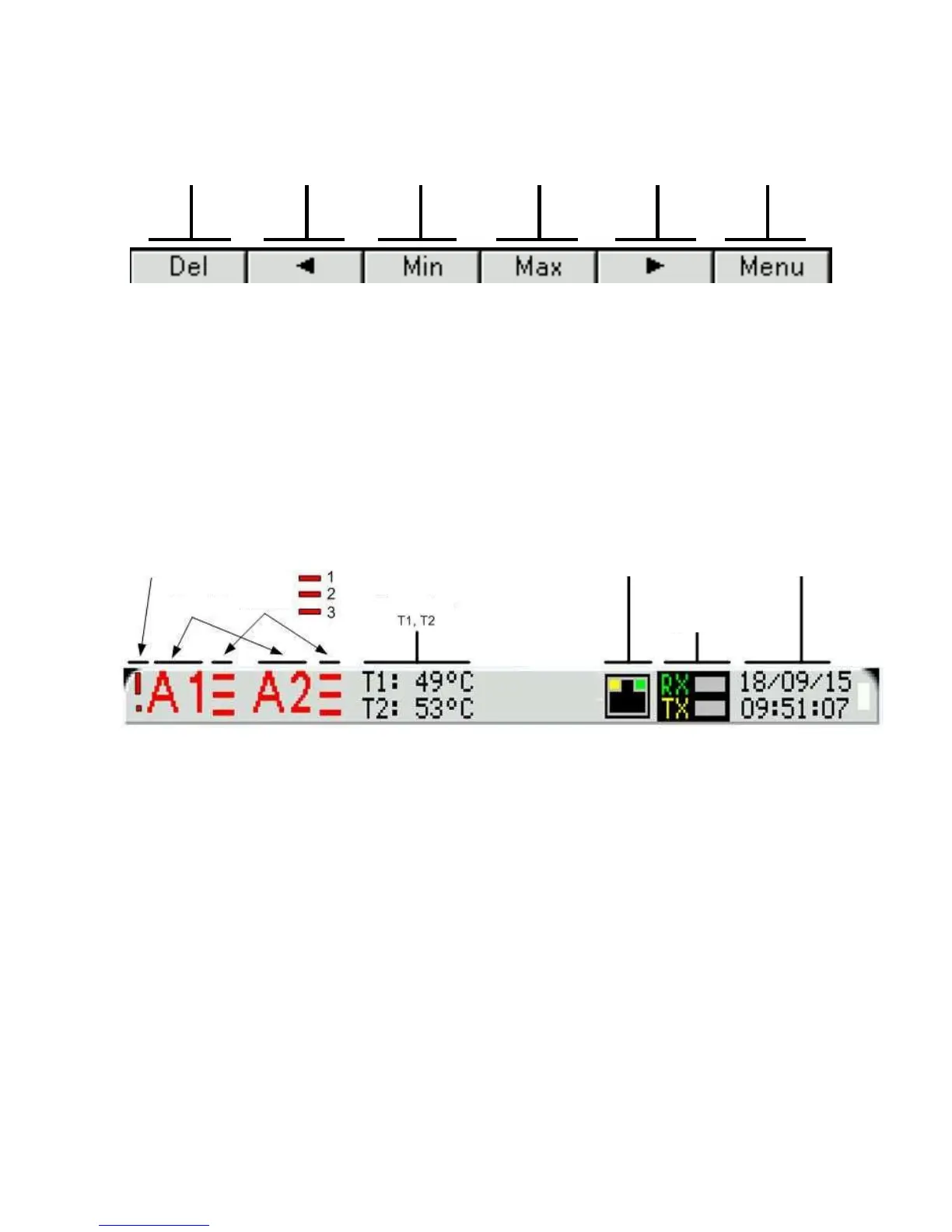

Fig.9. Sample designation of buttons
The information bar at the top of the screen shows the status of the alarm outputs, alarm
conditions, T1 and T2 temperature of the sensors connected to the first and second input of
PT100, the symbol of Ethernet / Profinet connection, indicators of receiving and transmitting data
to the RS485 line, the date and real-time clock . In case of reverse phase sequence, "phase
sequence error” flashes.
Fig.10, Information bar
6.2 Starting operation
After powering the meter displays the logo, the name of the meter ND30PNET, the ordered
version, the current version of the program and the MAC, and then proceeds to the
measurement mode and sets itself on the page which was set as the last one. Displayed
information:
ND30PNET v:1.00– type of the meter, program
version number Bootloader v.01.05 bootloader
version number
U: 57.7/230.0 V – version for voltage
Phase sequence
error
Alarm 1,2
Alarm
conditions
Temperature
Etherney/Profinet
connected
Data transmissions
RS485
Date,
time
