Select
7.6 Ethernet / Profinet
We choose Profinet group in the options and confirm with .

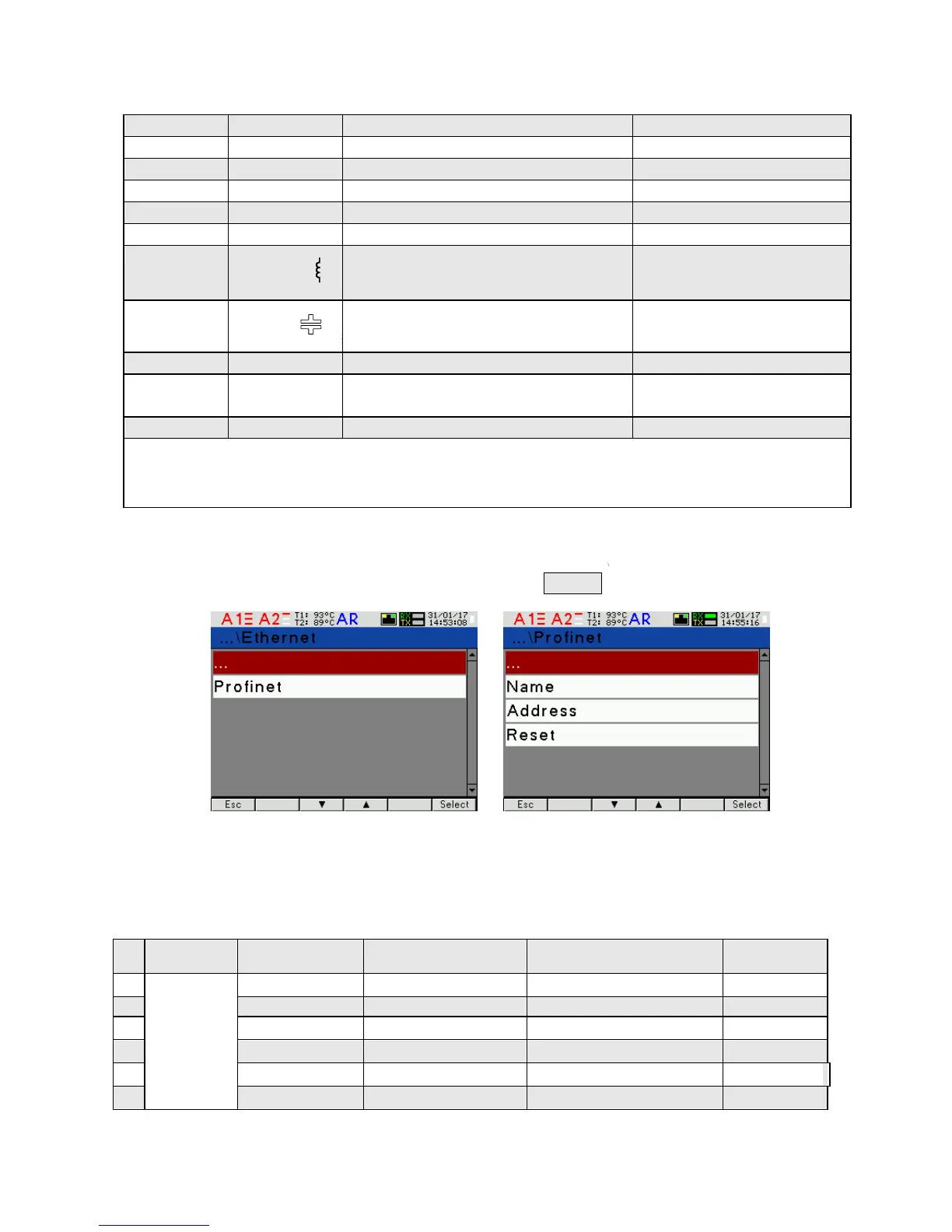

Fig.20. Screens of Ethernet / Profinet group
Table 9
44
I DMD
averaged current (I Demand)*
In [A] *
45
I(N)
current in neutral wire
In [A] *
46
T1
Temperature T1 of input 1
400 [C]
47
T2
Temperature T2 of input 2
400 [C]
48
En P+
3-phase imported active energy
100000 [kWh]
49
En P-
3-phase exported active energy
100000 [kWh]
50
En Q
3-phase reactive inductive energy
100000 [kvarh]
51
En Q
3-phase reactive capacitive energy
100000 [kvarh]
52
En S
3-phase apparent energy
100000 [kVAh]
53
Sequence of
phases
Sequence of phases
L1,L2,L3 - 0.00 [%]
L1,L3,L2 - 100.00 [%]
54
hh:mm
time, ggx100+mm
2400 - 100 [%]
*Un,In - nominal values of nominal voltages and currents
** In 3-phase 3-wire system (3Ph/3W) respectively THD U12, THD U23, THD U31, THD U123
No.
Parameter name
range
Notes / description
(example)
Default
value
1
Addresses
Name
240 characters
nd30pnet-xxxx
-
2
IP Address
0.0.0.0255.255.255.255
10.0.1.190
-
3
Subnet mask
0.0.0.0255.255.255.255
255.0.0.0
-
4
Default gateway
0.0.0.0255.255.255.255
10.10.10.203
-
5
MAC Address
Aa:bb:cc:00:21:01
6
Reset
No/Yes
No
