4 INSTALLATION
The meter is adapted to be fixed to the panel by means of mounting brackets, according
to fig. 1. The housing of the meter is made of self-extinguishing plastic.

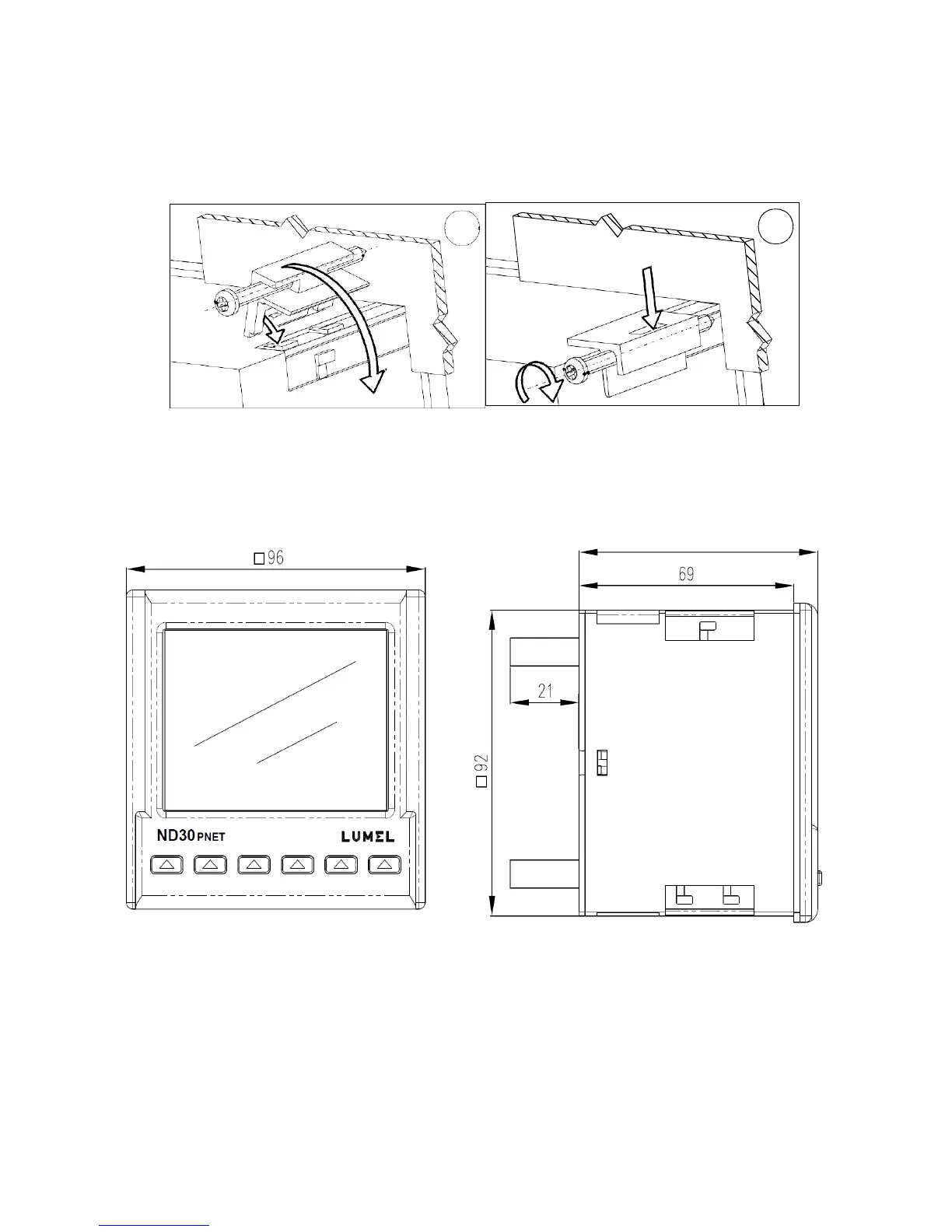

Fig.2. Meter fixing
Housing dimensions 96 x 96 x 77 mm, mounting hole dimensions 92.5 x 92.5 mm. Outside the
meter there are screw terminal strips that allow the connection of external wires with diameter up
to 2.5 mm
2
.
.
Fig.3. Overall dimensions of ND30PNET
2
1
