standard EN 50173 with RJ-45 plug with core color (according to Table 13) in the following
standard :
• EIA/TIA 568A for both connectors at the so-called simple connection of
ND30PNET to the network hub or switch,
• EIA/TIA 568A for the first connector and EIA/TIA 568B for the second connector at the
so-called patch cord connection (crossover) used, among others, when connecting
ND30PNET to the computer.
Table 13

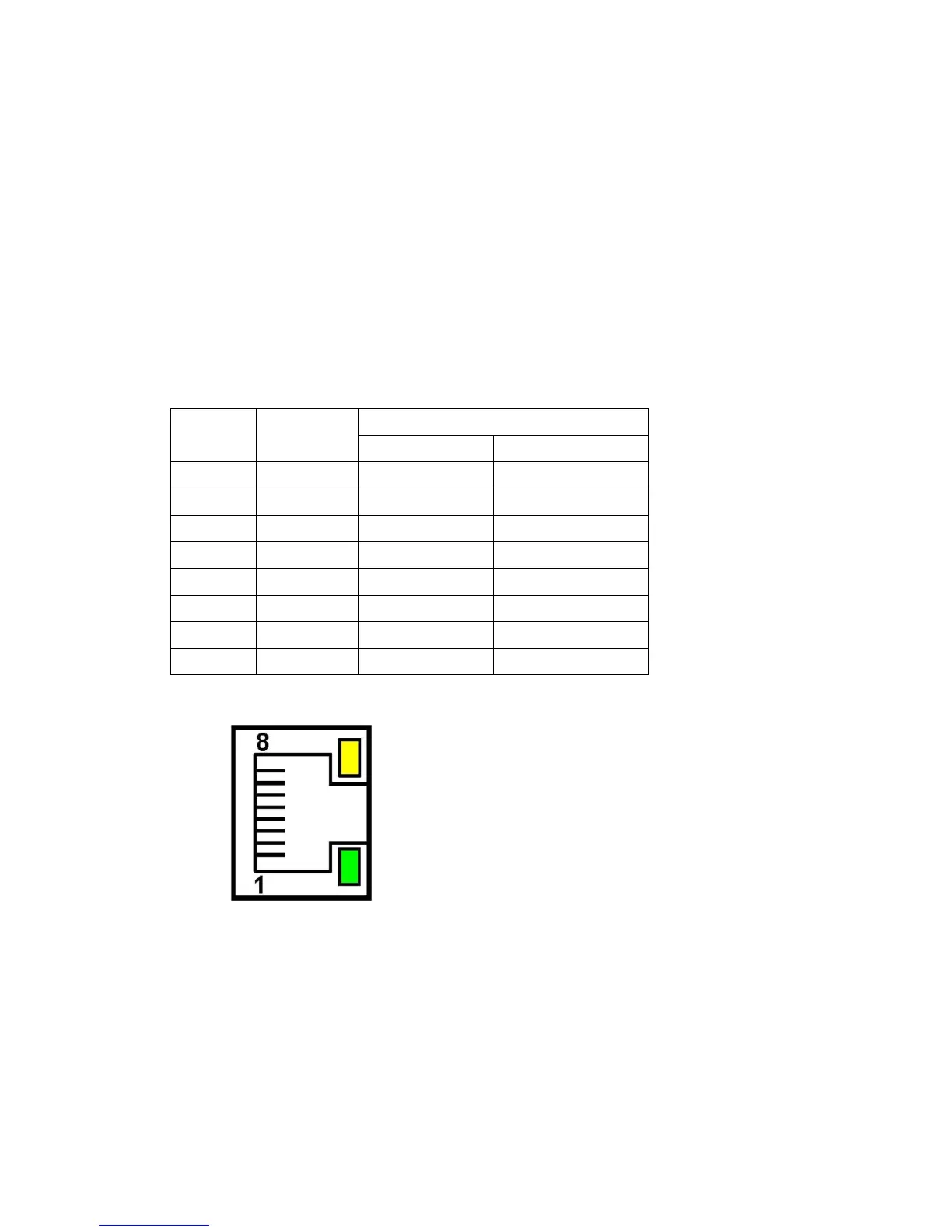

Fig.28. View and numbering of RJ45 slot pins
