LX Navigation Colibri User Manual

Colibri Manual Ver. 4.2 Dec 2006
LX Navigation d.o.o. www.lxnavigation.si
21
1
6
2
7
3
8
4
9
5
SUBD 9 Male
Blue +12 V
White GND
Black GND Red +12 V
LX 5000 - via cross cable
IPAQ - via LX IPQ, Power and
1
6
2
7
3
8
4
9
5
SUBD 9 Female
White GND
Black Rx (DATA IN)
Red Tx (DATA OUT)
Blue +12 V
Wall Charger
PC
White GND
Black
Red
Green LED A
Yellow Event
Blue +12 V
Red + 12 V
Black GND

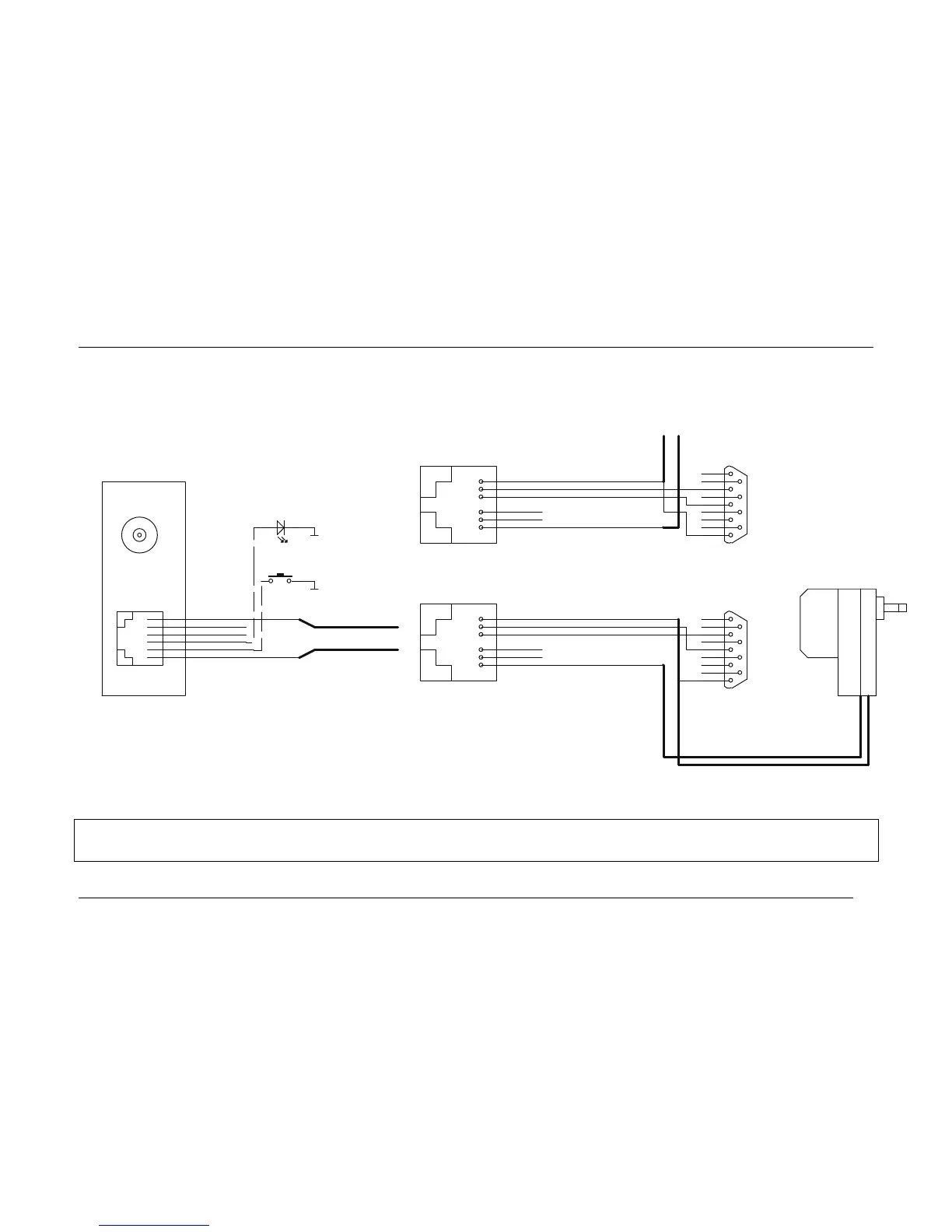

COLIBRI WIRING DIAGRAM
STATUS LED (Not wired!)
RJ 6/6
RJ 6/6
COLIBRI / POSIGRAPH
RJ 6/6
EVENT KEY (Not wired!)
GND
GND
3 flashes/sec -> GPS BAD
1 flash/sec -> OK
Black Rx (DATA IN)
Red Tx (DATA OUT)
Data adapter (Plug 'n' Play)
If the unit has been installed in a non visible position, it may be helpful if a remote Event key and LED status indicator are added.
Note!
The unit has no internal fuse, accordingly it is mandatory to fit a 1A external fuse when connecting to the glider power supply, thus preventing any damage to the unit in case
of malfunction.
