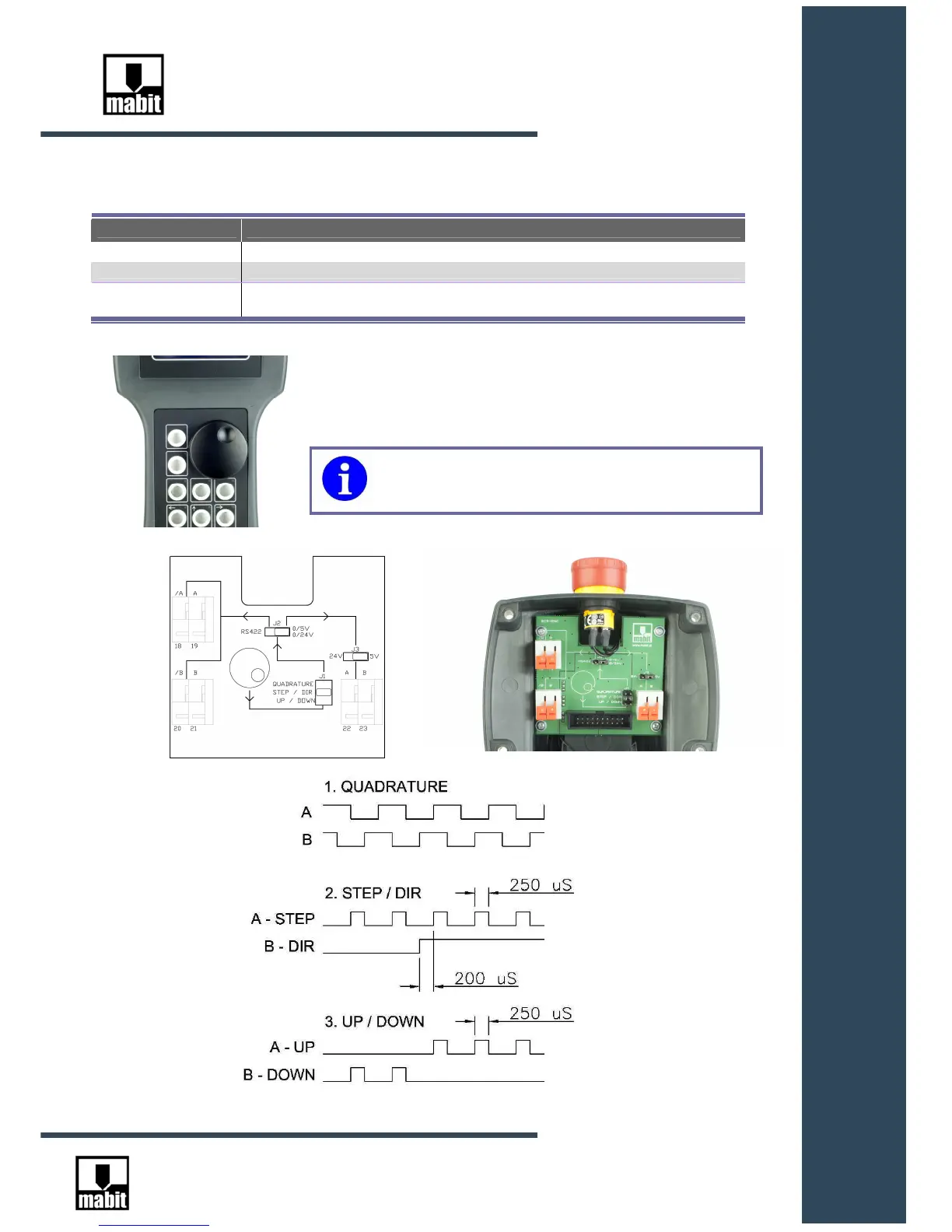

3.2. Technical data of Hand wheel
SC5-.-.-.-ENC
Resolution 50 PPR ( with recognition of each edge - x4 )
Work mode 1- Phase quadrature A/B 2-STEP/DIR 3-UP/DOWN ( jumper-selectable)
Output types 1- Line driver RS422 2- 5V (push-pull) 3- 24V (push-pull) ( jumper-selectable )
After setting of jumpers, switch OFF and ON
