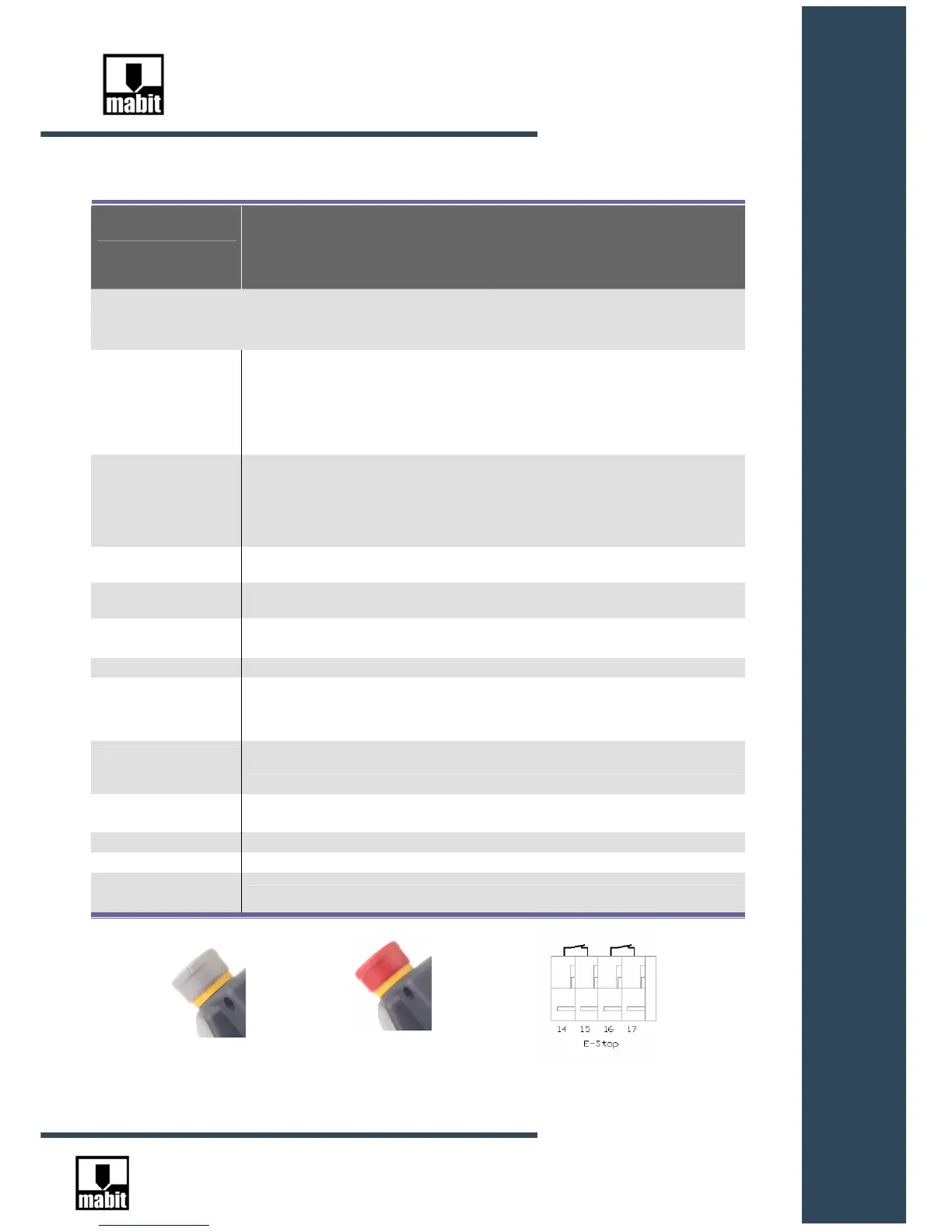

3.3. Technical data of butli-in emergency off switch/stop (IDEC)
SC5-R-E-A SC5-R-E-A-ENC
SC5-R-E-M SC5-R-E-M-ENC
SC5-R-E-W SC5-R-E-W-ENC
SC5-R-N-M SC5-R-N-M-ENC
SC5-R-N-W SC5-R-N-W-ENC
SC5-G-E-A SC5-G-E-A-ENC
SC5-G-E-M SC5-G-E-M-ENC
SC5-G-E-W SC5-G-E-W-ENC
SC5-G-N-M SC5-G-N-M-ENC
SC5-G-N-W SC5-G-N-W-ENC
Emergency off switch /
stop (IDEC)– catalog no.
of the manufacturer
XA1E-BV3U02R XA1E-BV3U02N
Applicable Standards
UL508
CSA C22.2 No.14
IEC 60947-5-1
EN 60947-5-1
IEC 60947-5-5
EN 60947-5-5
JIS C8201-5-1
UL508
CSA C22.2 No.14
IEC 60947-5-1
EN 60947-5-1
JIS C8201-5-1
Applicable Standards for
Use
ISO 12100 / EN292
IEC 60204-1 / EN 60204-1
ISO 13849-1
EN954-1
IEC 61508
Key diameter 29mm
Contact Resistance 50mΩ max
Impulse Withstand
Voltage
2,5 kV
Operating Frequency 900 / hour max
Durability
Mechanical - 250 000
Electrical – 100 000
250 000 (24V DC, 100mA)
Recommended circuit fuse
of emergency off
switch/stop
250V/10A ( Type aM IEC 60269-1/IEC 60269-2 )
Conditional Short-circuit
Current
1000A
Rated Voltage 24V DC
Number of contacts 2NC
Maximum operating
current
2A – resistive load 1A – inductive load
