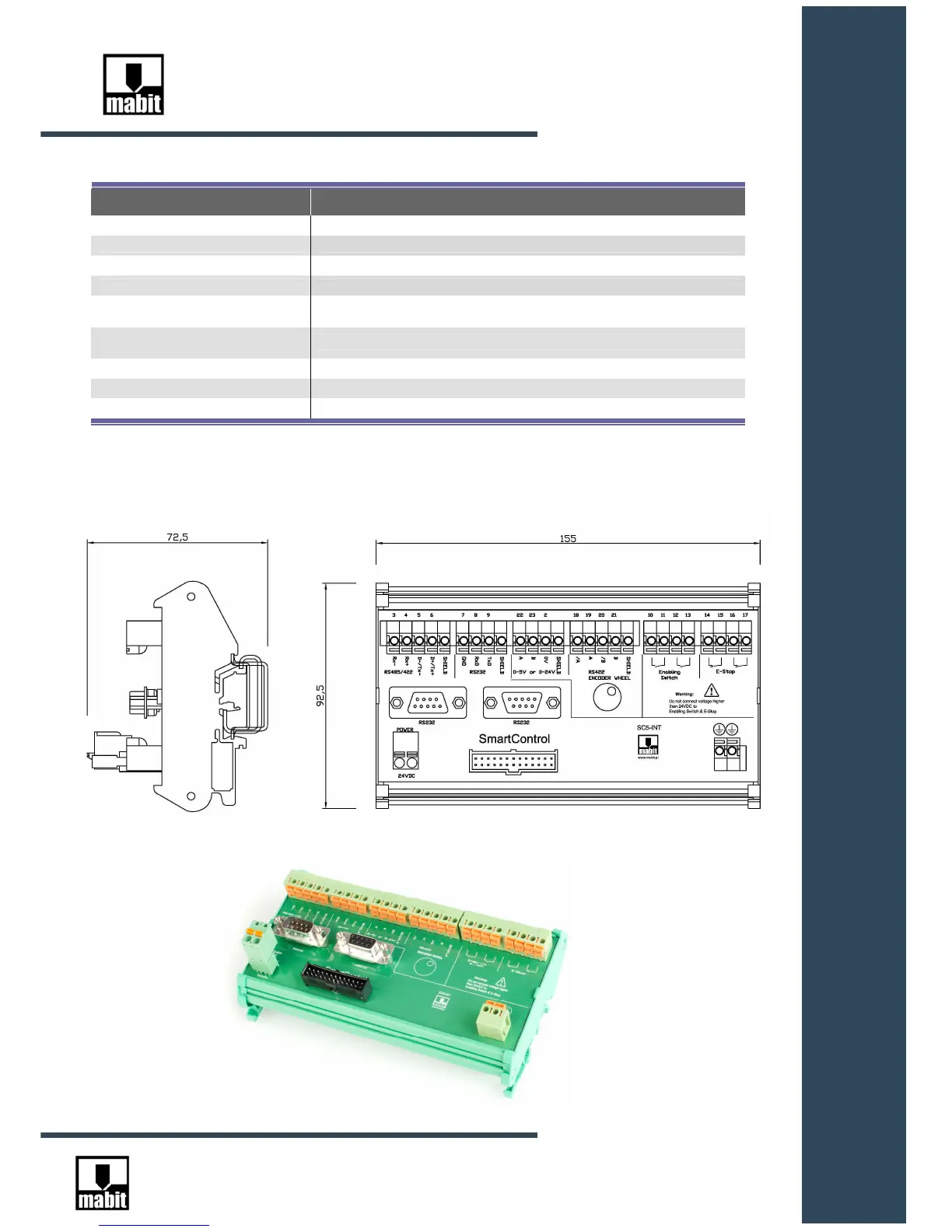

3.6. Technical data of interface separating signals SC5-INT
SC5-INT
Installation DIN rail
Height 92,5mm
Width 155mm
Depth Max 72,5mm
Section of wires for spring clips AWG22 – AWG16 0,34mm² – 1,5mm²
Section of wires for 24VDC power
supply plug
AWG26 – AWG12 0,34mm² – 2,5mm²
Socket for connecting SmartControl Male, 26 pin, type IDC ( see cables SC5-CAB…. )
Socket RS23 no.1 Male, 9 pin, D-sub
Socket RS23 no.2 Female, 9 pin, D-sub
