147762 14 Revision C

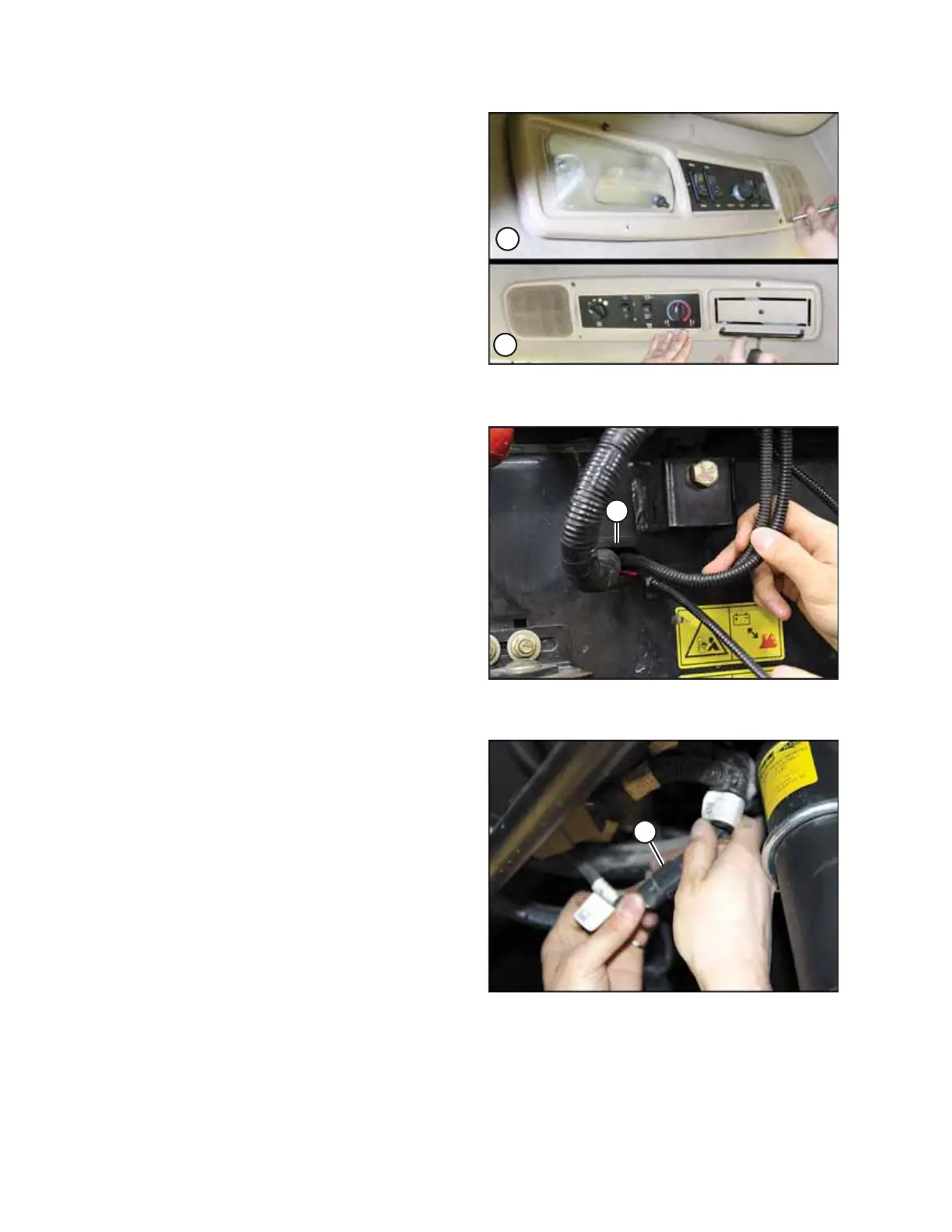

Figure 3.15: Headliner Switch Panels
A - Left Switch Panel B - Right Switch Panel
17. Reinstall the left and right headliner switch panels.
Figure 3.16: Windrower Frame Directly below the
Right Rear Cab Post
18. Below the right rear cab post, feed the loose end of the
new auxiliary lights roof harness through port (A) on the
windrower frame.
Figure 3.17: Connectors P2C and C3B
19. Locate connector P2C (A) on the inside of the frame at the
bottom of the right rear cab post. Disconnect this
connector.
INSTALLATION INSTRUCTIONS
