MacDon M155 - Specific Safety Topics

147762 15 Revision C
1013957
A

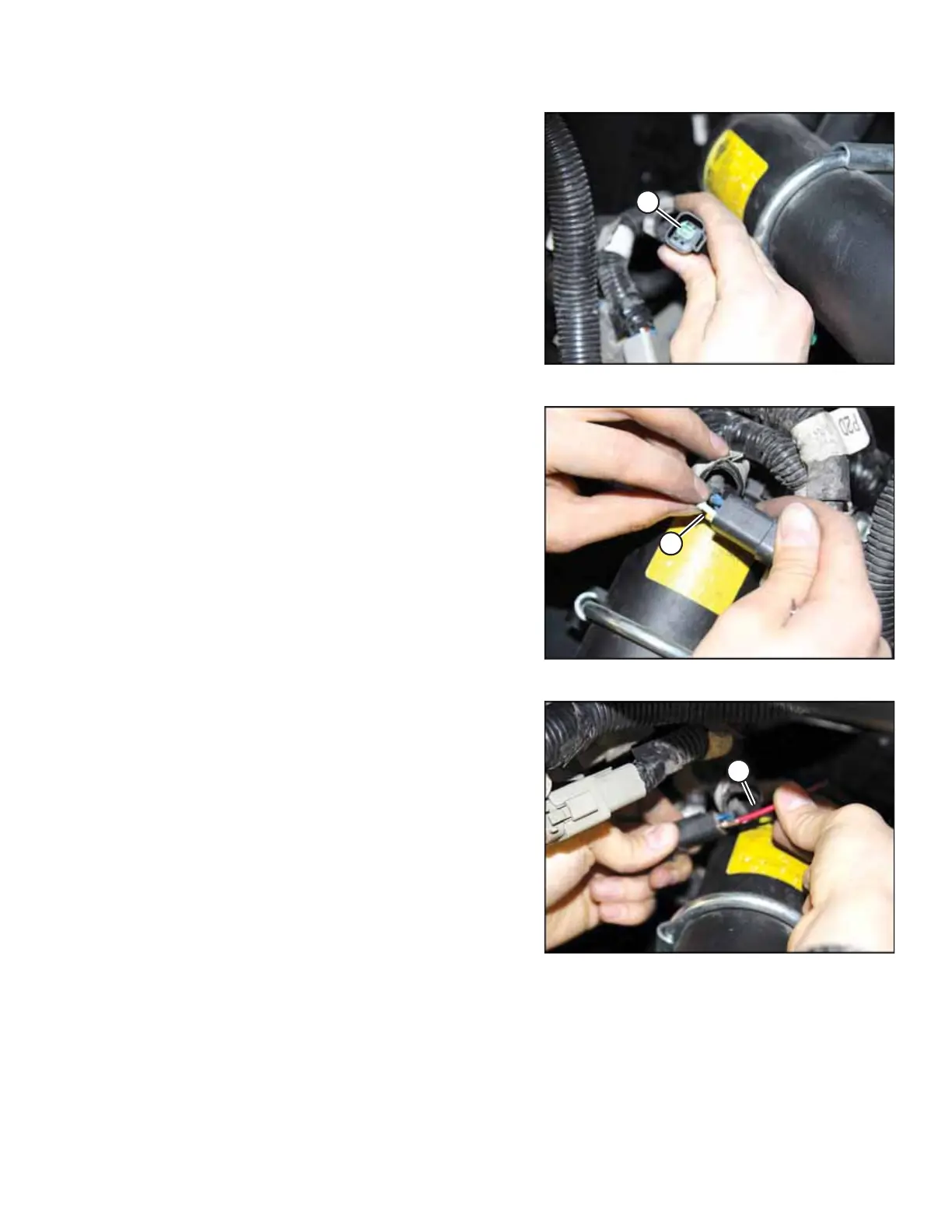

Figure 3.18: P2C Connector
20. Using a small screwdriver, remove terminal lock (A) from
the connector.
1013956
A
Figure 3.19: P2C Connector
21. Remove plug (A) from position 4 on the connector.
1018684
A
Figure 3.20: Deutsch Pin and P2C Connector
22. In place of the plug, insert Deutsch pin (A) of the auxiliary
lights roof repair harness.
23. Reinstall the terminal lock.
INSTALLATION INSTRUCTIONS
