INSTALLATION INSTRUCTIONS
9. Reattach CAC tube (A) to connector (B), if it was
removed. Follow these steps:
a. Replace C AC tube (A) into CAC connector (B),
ensuring that CAC tube is inserted all the way into
connector.
b. Position clamp (C) snug against bead on CAC
tube. Insert a .018 in. (.46 mm) feeler gauge into
middle coils of clamp and tighten bolt on clamp
until coils are snug on gauge.

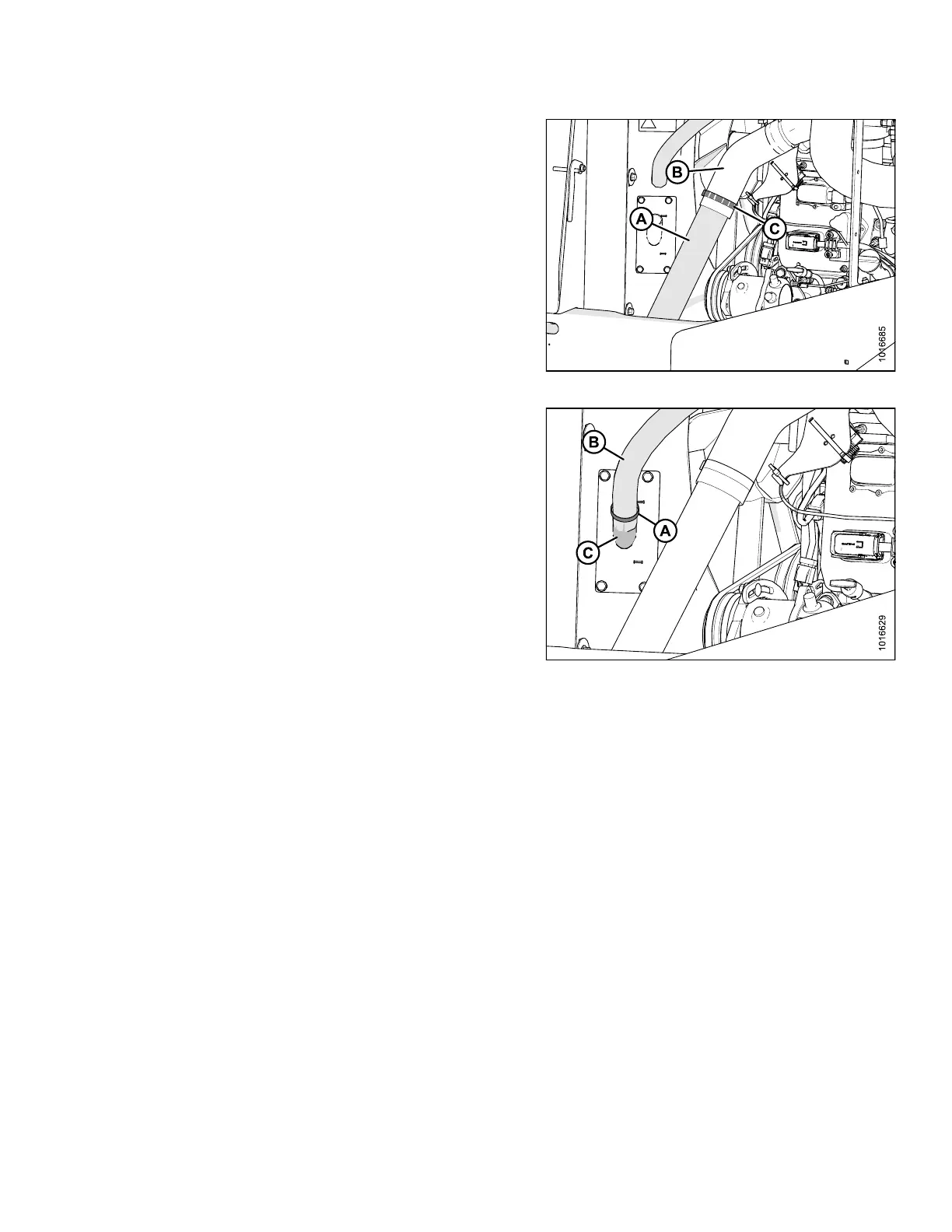

Figure 3.6: C AC Connectors
10. Reinstall the aspirator duct (B) on the new aspirator
assembly (C) and tighten clamp (A) until snug.
Figure 3.7: Aspirator Duct and CAC Connectors
167730
11
Revision B
