INSTALLATION INSTRUCTIONS
37. Position DEF tank cover (B) on the DEF tank (C).
38. App ly anti-seize compou nd on bolts (A).
39. Secure DEF tank cover (B) with bolts (A) and torque to
11–13 ft·lbf (15–18 N·m).
40. Close the maintenance platform.

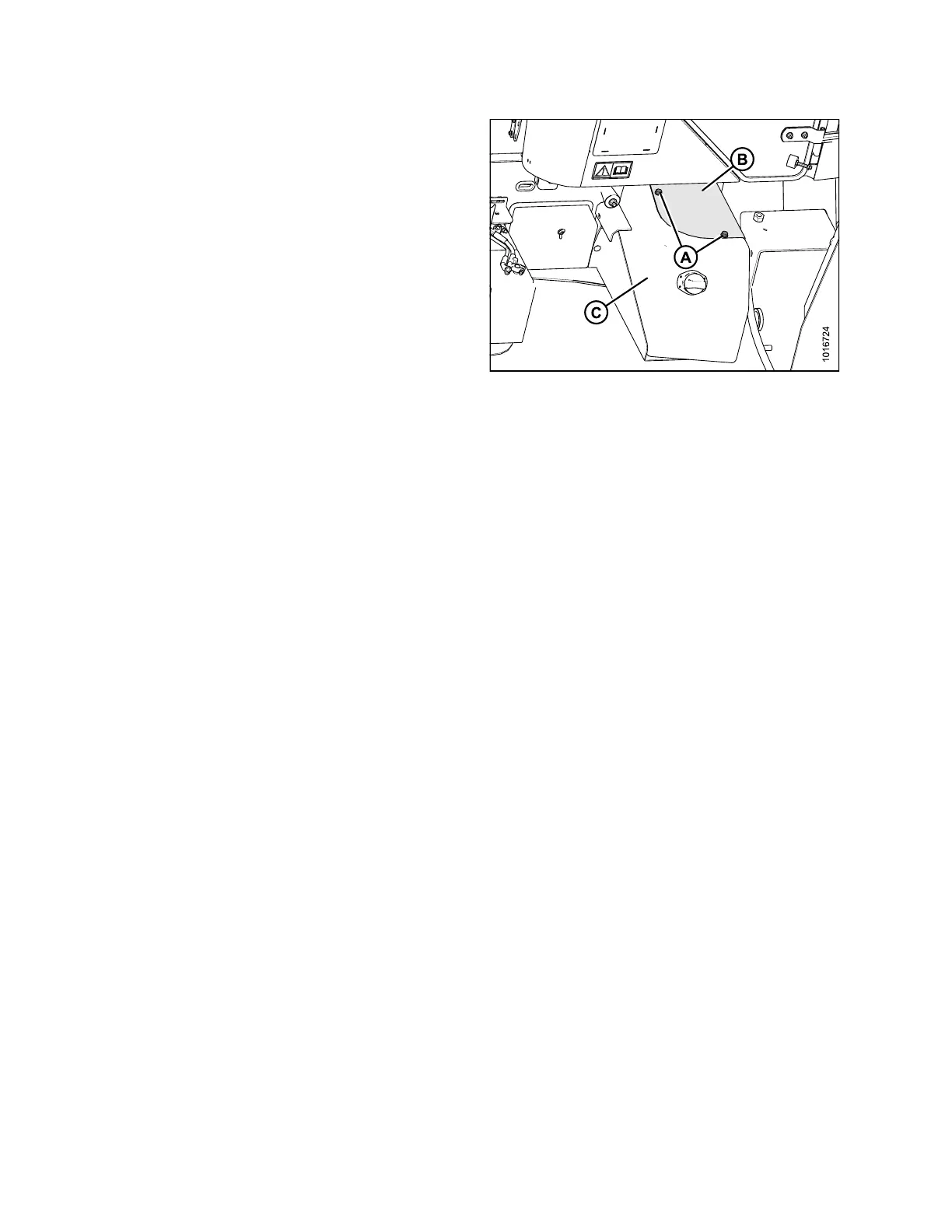

Figure 3.43: DEF Tank
167730 26 Revision B
To Next Page
