INSTALLATION INSTRUCTIONS
10. Reinstall the terminal lock (A).

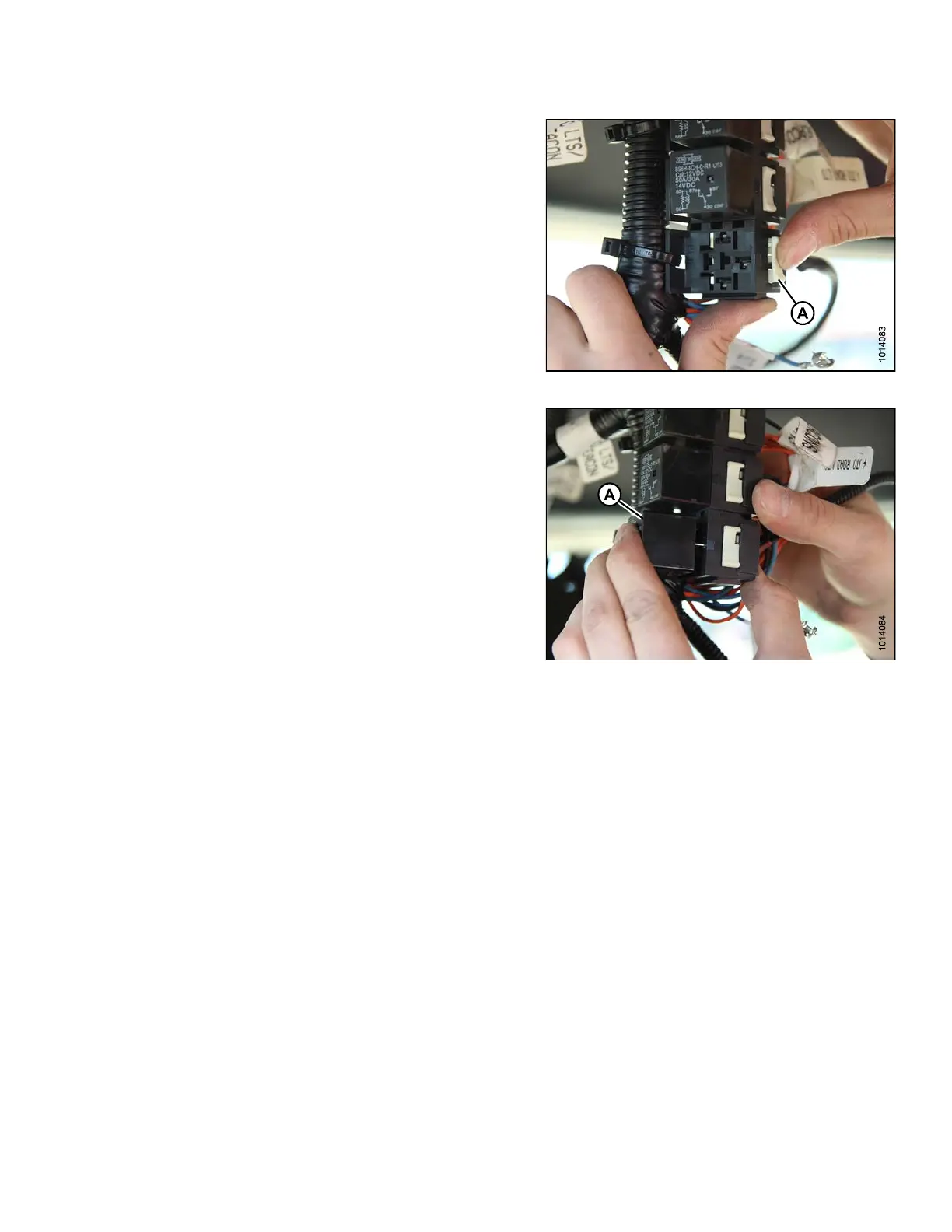

Figure 3.49: Auxiliary Lights Relay and Socket
11. Press the relay (A) in place.
12. Reinstall the left headliner switch panel.
13. Verify lighting wor ks correctly. Refer t o Checking
Operation of Lights in Instruction MD #147762,
Auxiliary Lighting Harness Repair kit or win drower
operator’s manual for instructions.
Figure 3.50: Auxiliary Lights Relay and Socket
167730 29 Revision B
