ASSEMBLING THE WINDROWER
3. Locate plug (A) on the top of the header drive pump
housing from above the machine.
4. Loosen plug (A) to bleed the pump housing. Retighten
theplugonceoilstartstorunout.

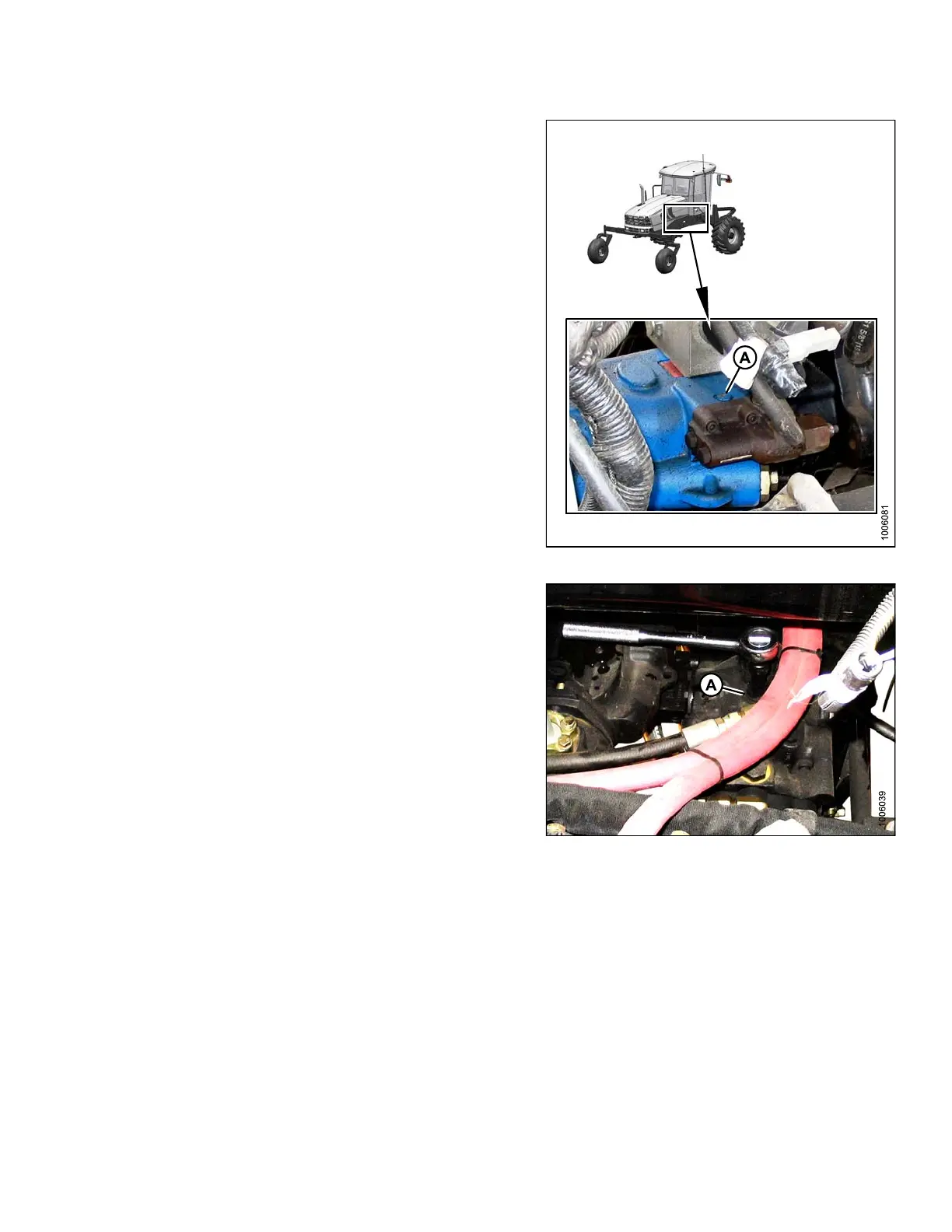

Figure 3.
122: Header Drive Pump Housing
5. Locate plug (A) on the top of the traction drive pump
housing from above the machine.
6. Loosen plug (A) to bleed the pump housing. Retighten
theplugonceoilstartstorunout.
7. Replace the hydraulic oil reservoir filler ca p .
Figur
e 3 .123: Traction Drive Pum p H ou sing
147962 81 Revision A
