ASSEMBLING THE W INDROWER
8. Open the left-hand (cab-forward) platform.
9. Disconnect the brake engage solenoid plug (PV3) (A)
at the valve block on the left-hand side of
the windrower.

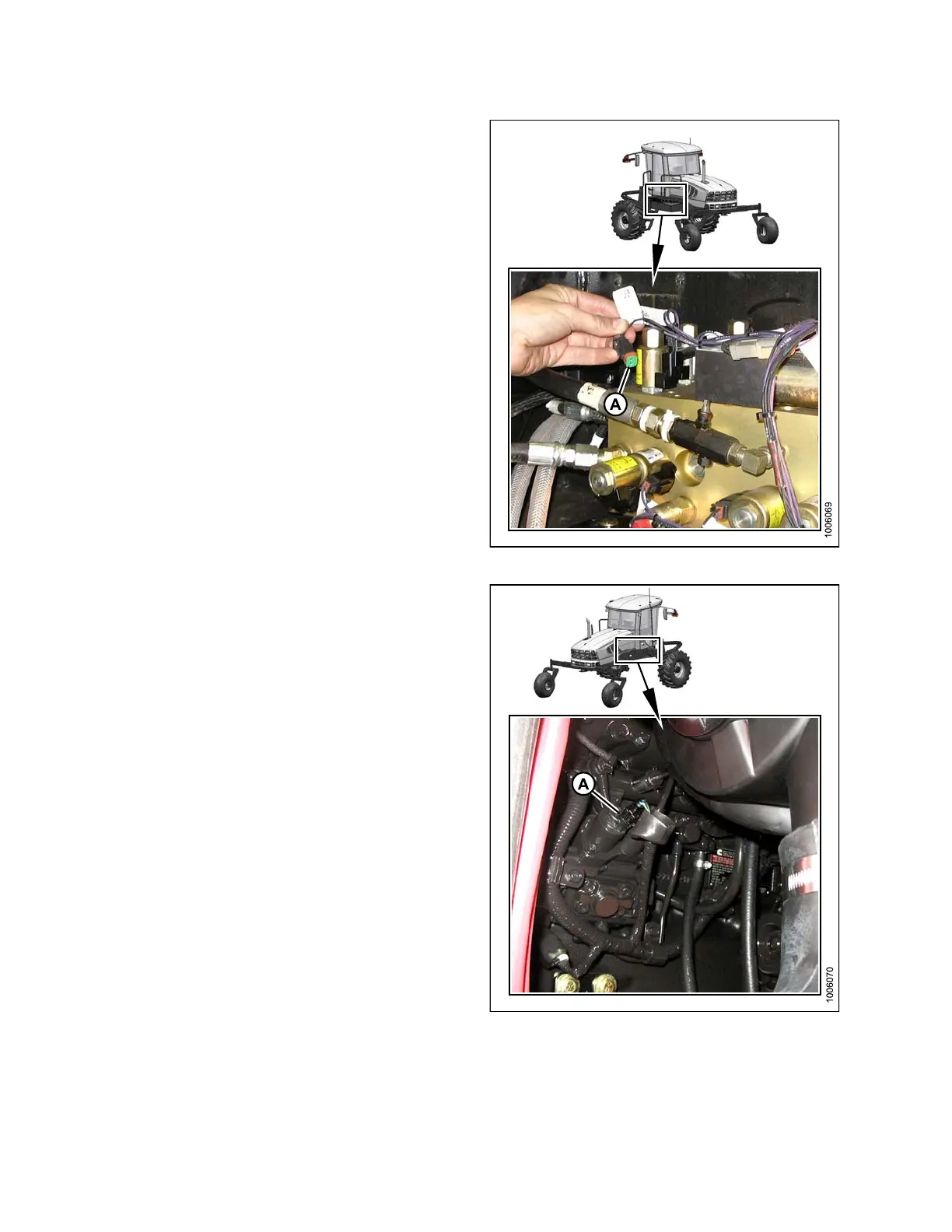

Figure 3.
124: Valve Block
10. Disconnect the electrical connection (A) at the fuel
pump on the right side of the engine.
Figure 3.125: Fuel Pump Location
147962 82 Revision A
