TYRES

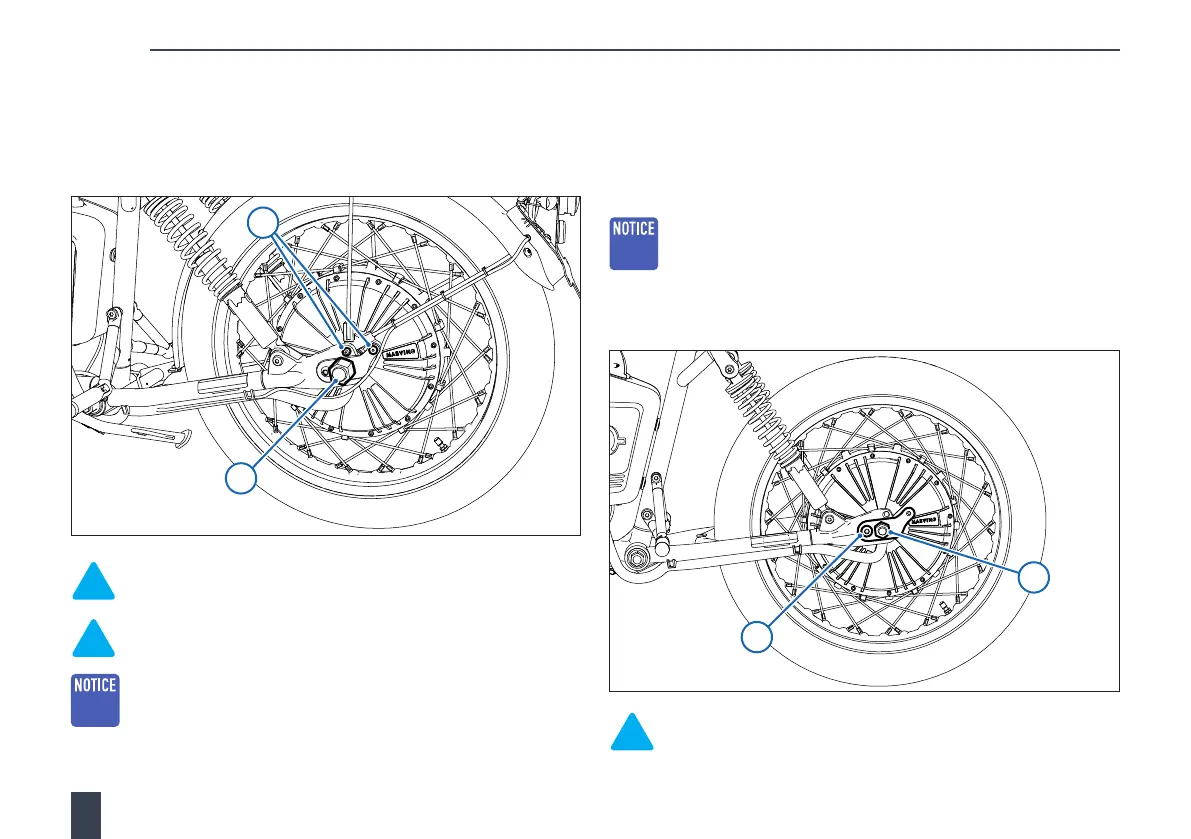

13. Remove both axle nut covers on the rear wheel axle.
14. Remove the 2 bolts (T30 Torx™) and washers securing the rear
mudguard supports to the swinging arm and detach the rear
mudguard and light assembly.
Note: Left-hand shown, right-hand similar.
Note: When refitting, tighten to 10 Nm.
NOTICE: Make sure the rear mudguard and light assembly
are not damaged when being repositioned.
15. Carefully displace the rear mudguard and light assembly from
around the rear wheel and swinging arm and reposition to one
side.
16. Secure the rear mudguard and light assembly to one side using
string or a securing strap.
NOTICE: Make sure the rear mudguard and light assembly
are not damaged when being repositioned.
17. Undo, but do not remove, both axle nuts (27 mm hexagonal) on
the rear wheel axle.
Note: Left-hand shown, right-hand similar.
