MAINTENANCE WORK
AIR FILTER
Maintenance manual T225/T230 61
Replacing filter cartridge

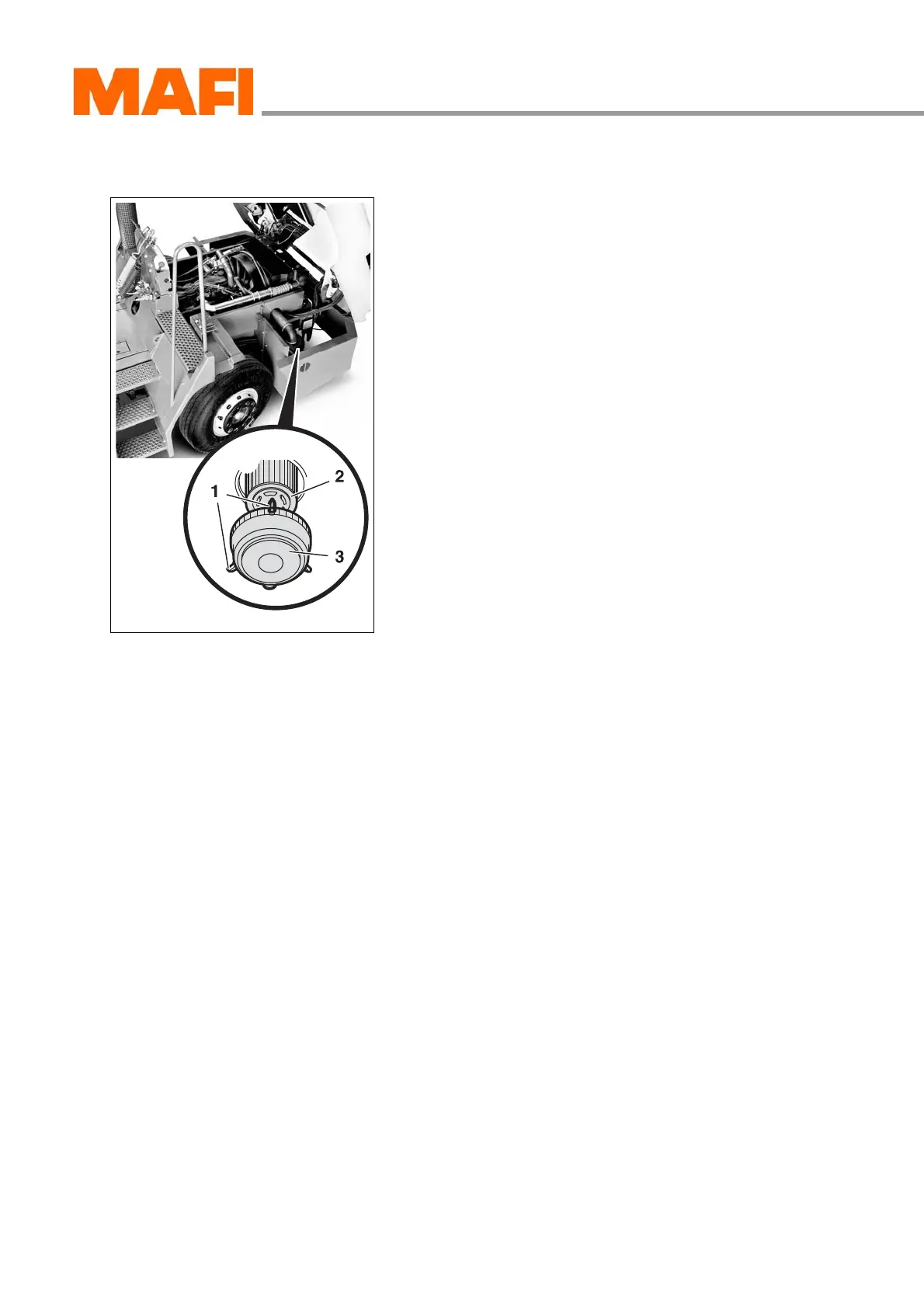

Fig. 33: Replacing filter cartridge
1 Clamps
2 Filter cartridge
3 Housing cover
X
Stop the engine and withdraw the ignition key.
X Clean the area around the housing cover 3 of the air filter.
X Loosen the clamps 1 and remove the housing cover 3.
X Clean the housing cover.
X Pull out the filter cartridge 2.
X Clean the inside of the housing with a lint-free cloth, paying
special attention to the sealing surfaces.
X Insert the new filter cartridge 2 while making sure it is
positioned properly.
X Press the filter cartridge 2 into the housing.
X Place the housing cover 3 on top and tighten it using
clamps 1.
