MAINTENANCE WORK
HYDRAULIC SYSTEM
Maintenance manual T225/T230 85
Replacing hydraulics filter

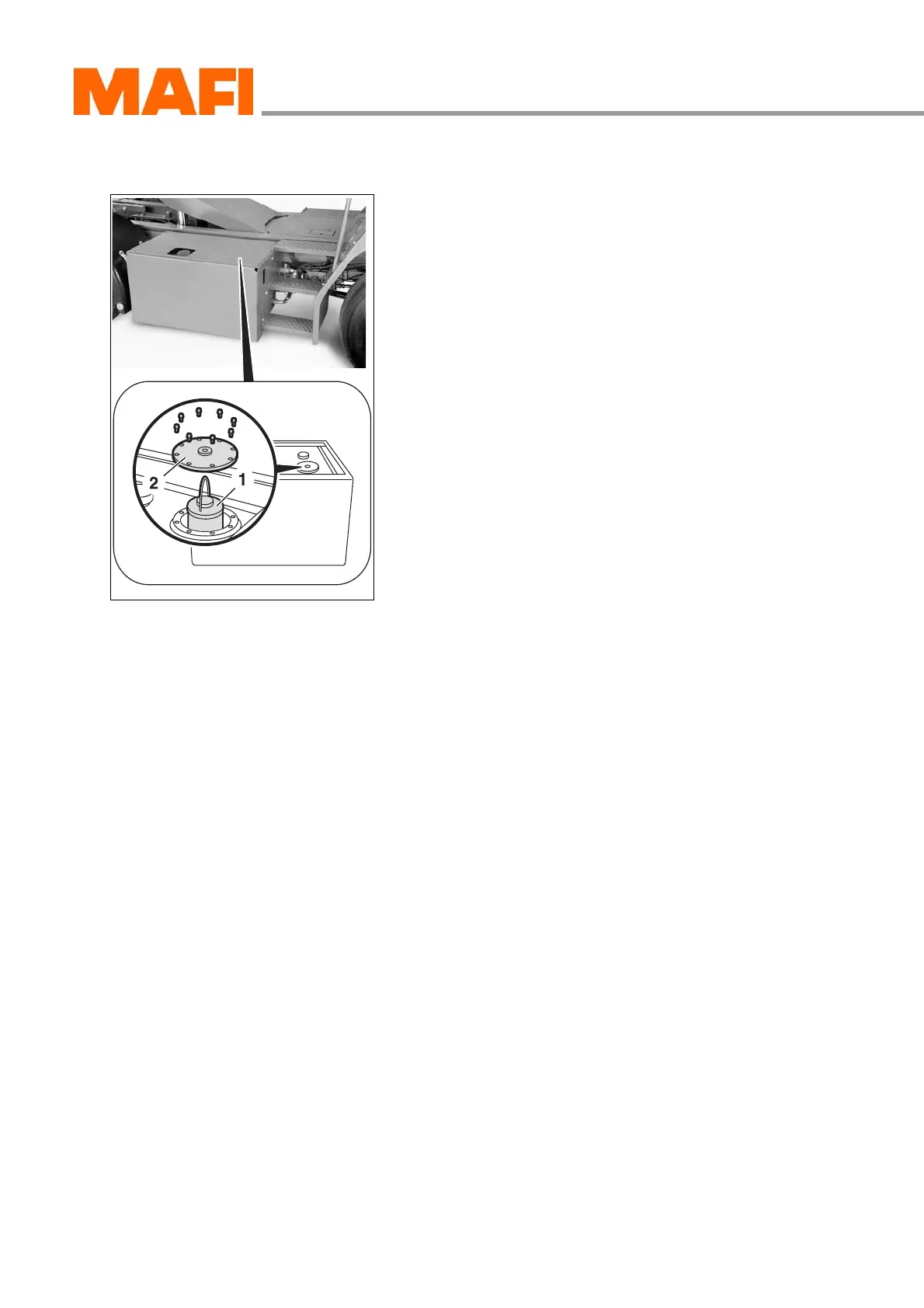

Fig. 56: Oil filter
1 Filter cartridge
2 Filter housing cap
X
Park the MT on level ground.
X Stop the engine and withdraw the ignition key.
X Loosen the bolts for the filter housing cover 2 and remove
the filter housing cover 2.
X Remove the filter cartridges 1.
X Clean the magnet.
If metal chips are found on the magnet, have technicians
inspect the hydraulic system.
X Insert a new filter cartridge 1.
X Replace the O-ring at the filter housing cap 2.
X Tighten the bolts for the filter housing cover 2 onto the filter
housing.
