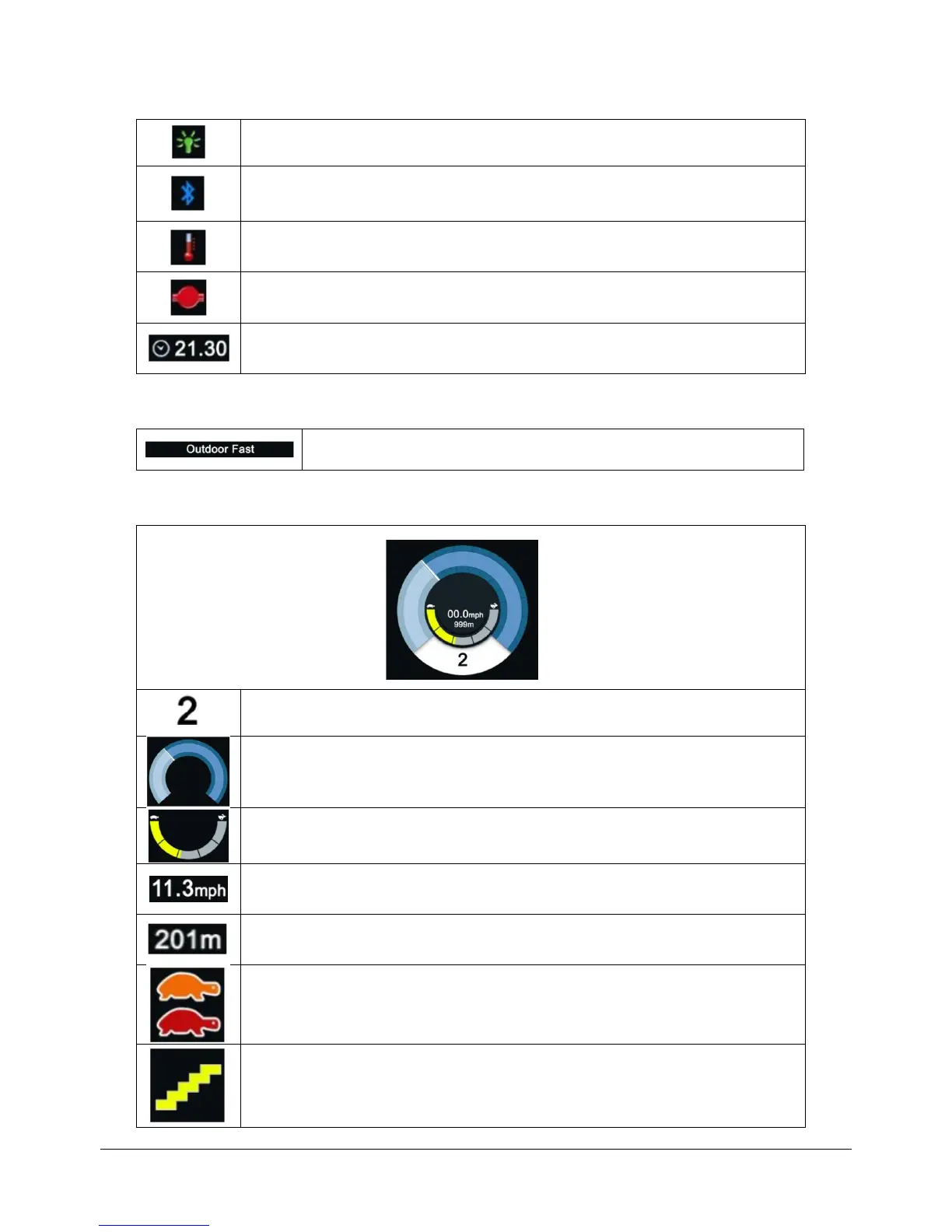

Information Bar
Focus symbol: When multiple controllers are installed, the one currently in control
of your power chair will display this symbol
Bluetooth: This symbol appears when a Bluetooth Module is connected to the
system. The symbol is blue when paired with a Bluetooth device, and white when
not paired
Motor Temperature: This symbol means your control system has reduced power
to the motors to protect them against heat damage
Control System Temperature: This symbol means your control system has reduced
its own power to protect itself against heat damage
Clock: This displays the current time digitally. The clock is user adjustable
This displays text describing the operating condition of the control
system (e.g. Profile Name, Mode Name or Axis Name)
Current Profile: the currently selected Profile
Speed Indicator: gives a graphical display of the wheelchairs speed
Maximum Speed Indicator: displays the current maximum speed setting
Digital Speed Display: displays your power chair’s actual speed
Odometer: displays the total distance the wheelchair has travelled or the trip
distance since the last reset
Inhibit: If the speed of the wheelchair is being limited, this orange symbol will be
displayed.
If the wheelchair is being inhibited from driving, this red symbol will be flashing
Latched Drive: symbol displayed if the control system is in latched drive
