Learning an IR Code
To teach the CJSM-BT an IR Code, enter IR Setup and select an appliance
Select the command to be learnt (e.g. TV > Channel Up)
Select Learn Code, by using the Right button while the Command is highlighted

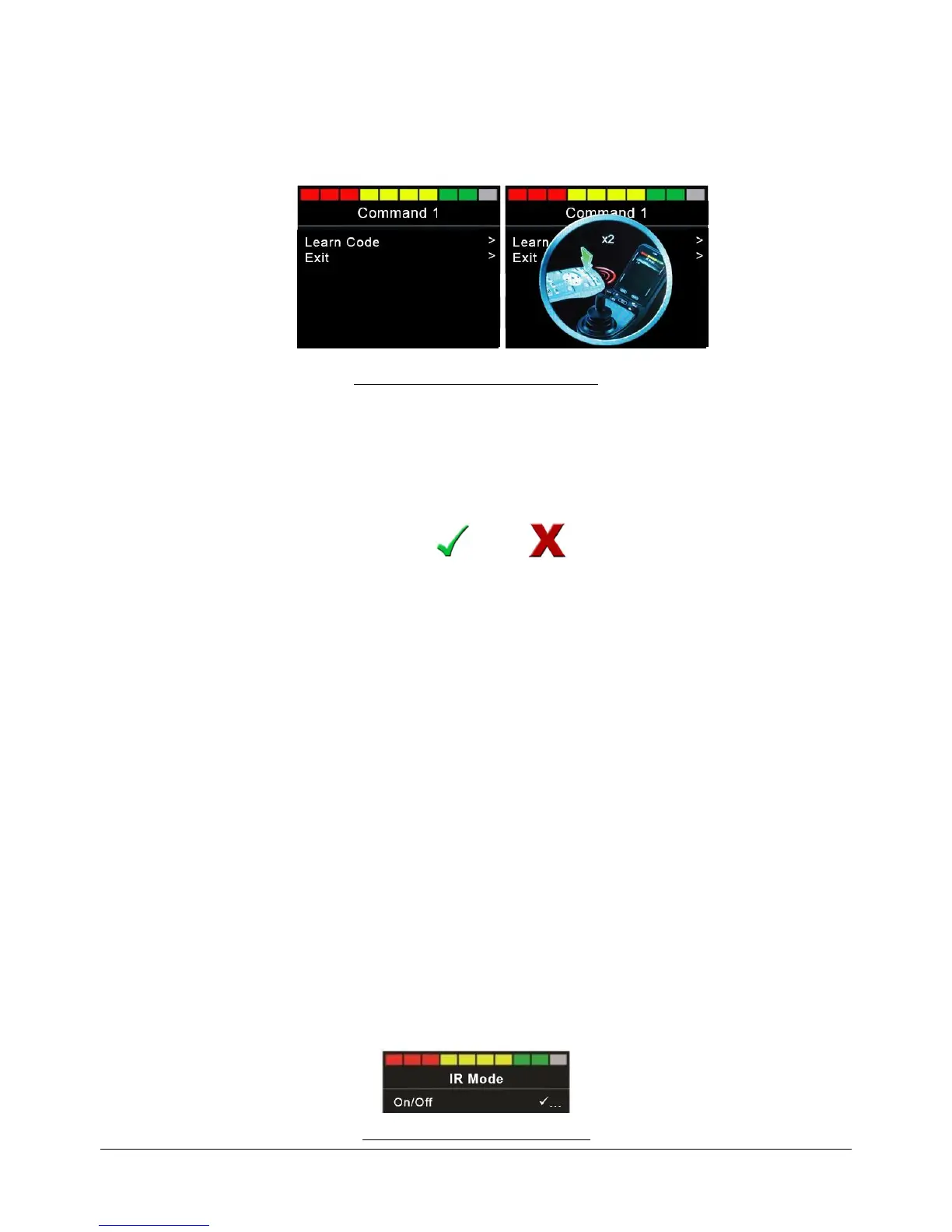

Figure 17 – Learn Infra Red Code Screens
Point the TV remote control at the CJSM2-BT’s Receiver LED and press the ‘Channel Up’
button on your TV remote twice. A ‘beep’ will be heard after each press; after the first press,
the ‘2x’ on the LCD screen will change to ‘1x’ to ask you to confirm the code by pressing the
‘Channel Up’ button once more
A check denotes a successful learn operation; A cross denotes an unsuccessful learn
operation (try again)
Once the code is learnt, select ‘Exit’ to return to the TV commands menu.
there is now a tick beside the newly learnt command, as it now has a stored IR Code
Note: The first time an IR Code has been learnt, turn the CJSM-BT off and on to ensure correct
operation
Learning an IR Code sequence
An IR Code ‘sequence’ allows one CJSM-BT command to do many IR commands at once. E.g.
simultaneously turning on a DVD player and a TV
To create a Sequence:
Select the command to use as the sequence initiator. In this example, TV > On/Off.
Select Learn Code, by using the right button while the command is highlighted.
Point the TV remote control at the CJSM2-BT’s receiver LED and press the TV remote’s
On/Off button twice.
After each successful learn operation a check momentarily appears on the screen, select
Learn Code again.
Point the DVD remote control at the CJSM2-BT’s Receiver LED and press the On/Off button
twice.
After each successful learn operation a check momentarily appears on the screen, select
Learn Code again to add to the sequence or select exit if finished.
Now the On/Off command will have a tick and 3 dots beside it, showing a learnt sequence
Figure 18 – IR Learnt Sequence Screen
