6. SERIAL PRINTER
6-1. Descriptions of Serial Printer (RS232c)
6-2. Descriptions of Serial Port

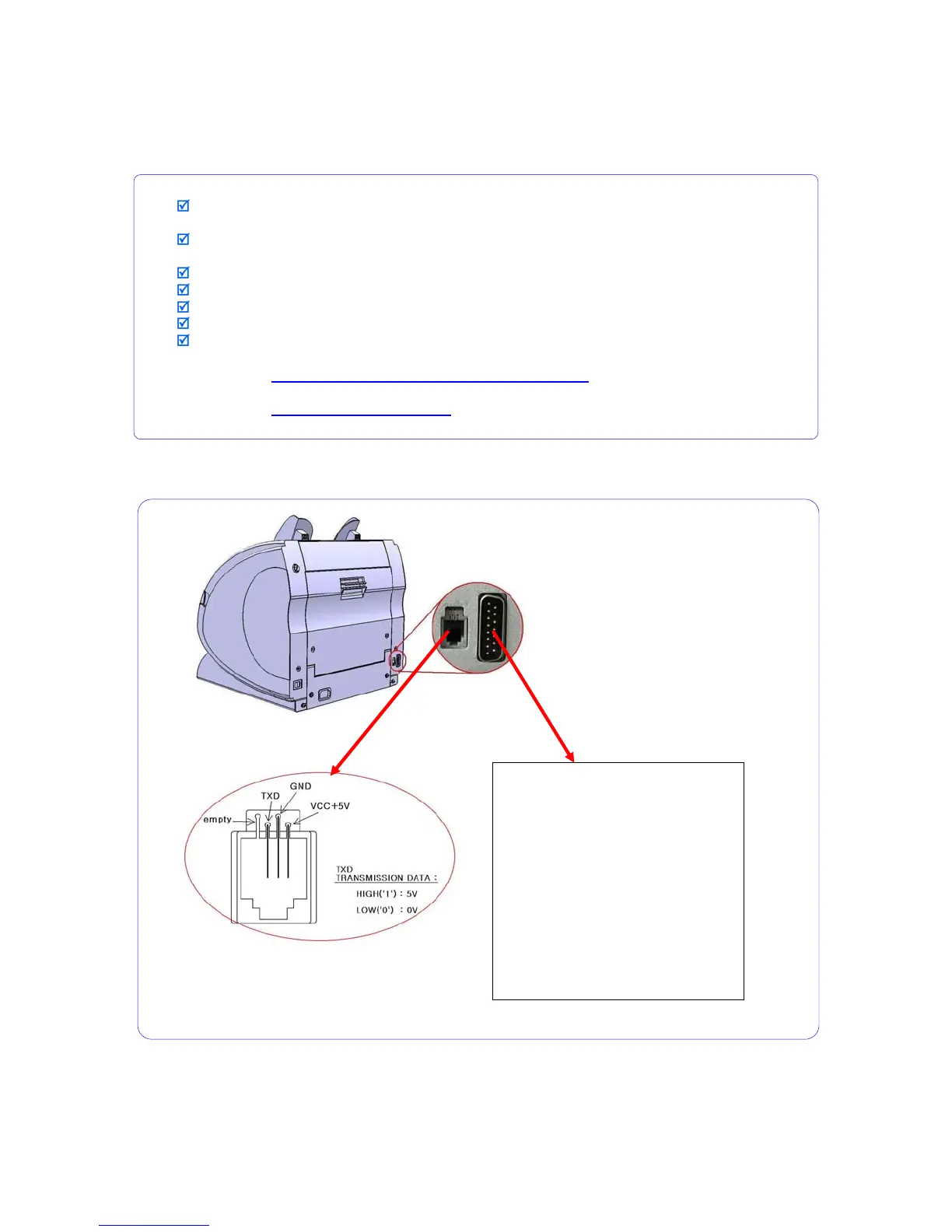

There are two types of interface.
1. SPI (Serial Peripheral Interface)
- For Upgrade
- PIN1: GND
- PIN2, 3, 4, 5, 6, 7, 9, 10, 11, 13,
14, 15: for SPI
2. RS232C
- For PC communication
- For serial printer
- For other devices with RS232C
- PIN1: GND
- PIN12: TXD
- PIN8: RXD
For only external display
Emulation MODE : EPSON or STAR
( EPSON Emulation MODE is a Default Value of Factory )
Baud Rate : 2,400 bps ~ 115,200 bps
( 115,200 bps is a Default Value of Factory. )
Data Bits : 8 bits
Stop Bits : 1 bit
Handshaking : DTR/DSR
Parity Check : Disable
Available Serial Printer :
SAMSUNG : SRP-370
Web Site : HTTP://WWW.SAMSUNGMINIPRINTERS.COM/
EPSON : TM-T88III, etc.
Web Site : HTTP://POS.EPSON.COM/
