2 Mechanical Installation
MAGNETEK HPV1000 AC Elevator Drive Technical Manual 3
2 Mechanical Installation

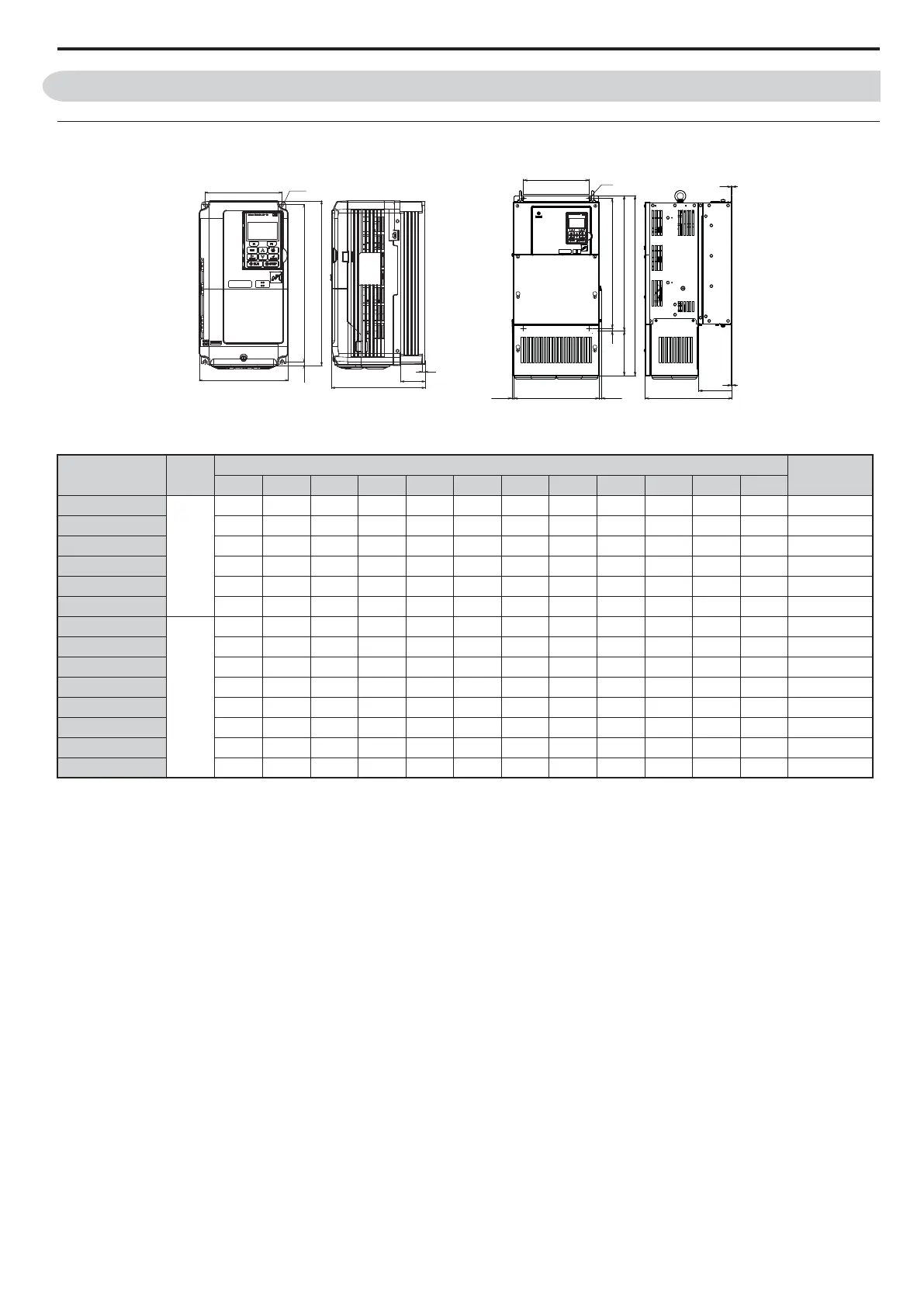

 Dimensions
Model
HPV1000
Fig.
Dimensions (mm)
Weight
(kg)
W H D W1 H0 H1 H2 H3 D1 t1 t2 d
4009-BA-N02
1
140 260 164 122 – 248 6 – 55 5 – M5 3.5
4015-BA-N02 140 260 167 122 – 248 6 – 55 5 – M5 3.9
4018-BA-N02 140 260 167 122 – 248 6 – 55 5 – M5 3.9
4024-BA-N02 180 300 167 160 – 284 8 – 55 5 – M5 5.4
4031-BA-N02 180 300 187 160 – 284 8 – 75 5 – M5 5.7
4039-BA-N02 220 350 197 192 – 335 8 – 78 5 – M6 8.3
4045-BA-N02
2
254 465 258 195 400 385 7.5 65 100 2.3 2.3 M6 23
4060-BA-N02 279 515 258 220 450 435 7.5 65 100 2.3 2.3 M6 27
4075-BA-N02 329 630 258 260 510 495 7.5 120 105 2.3 3.2 M6 39
4091-BA-N02 329 630 258 260 510 495 7.5 120 105 2.3 3.2 M6 39
4112-CA-N02 329 630 283 260 550 535 7.5 80 110 2.3 2.3 M6 43
4150-CA-N02 329 630 283 260 550 535 7.5 80 110 2.3 2.3 M6 45
4180-CA-N02 456 868 330 325 705 680 12.5 163 130 3.2 3.2 M10 85
4216-CA-N02 504 1038 350 370 800 773 13 238 130 4.5 4.5 M12 103
<(*
W1
H
H1H2
W
D
D1
t1
4-d
Figure 1
H1
H2
H0H3
H
W1
W
D
D1
t2
4-d
Max 10Max 10
Figure 2
