PM Startup
PM Operation Set-up
Enter / verify that the drive is set to run in ‘PM Closed Loop Vector’ in the Drive Mode menu (U8).
Option Card
The drive will need an option card to run in PM mode, and for EnDat encoders this will be the PG-F3 card. Confirm that
the encoder board is installed in the drive.
Encoder Wiring
The encoder should be wired to the drive as follows:

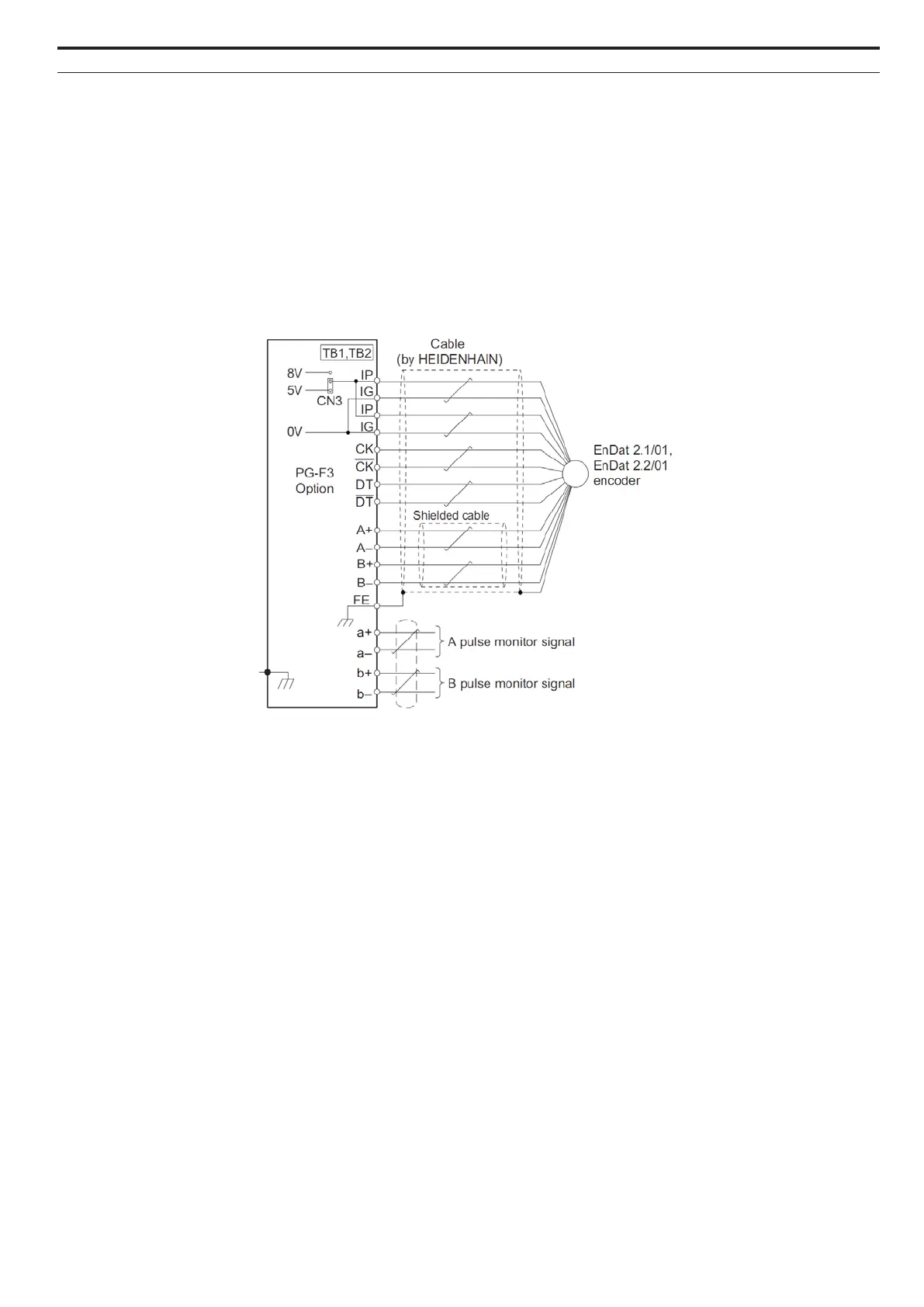

Figure 6
Figure 9 CL: PG-F3 Encoder Connections
• IP is the +VDC, and IG as the common.
• The encoder voltage is selected via the jumper CN3 as 5V.
• Note that the encoder is wired in to the upper case terminals. The lower case terminals are an output from the drive and
won’t necessarily be used.
