8 Appendix
72 MAGNETEK HPV1000 AC Elevator Drive Technical Manual

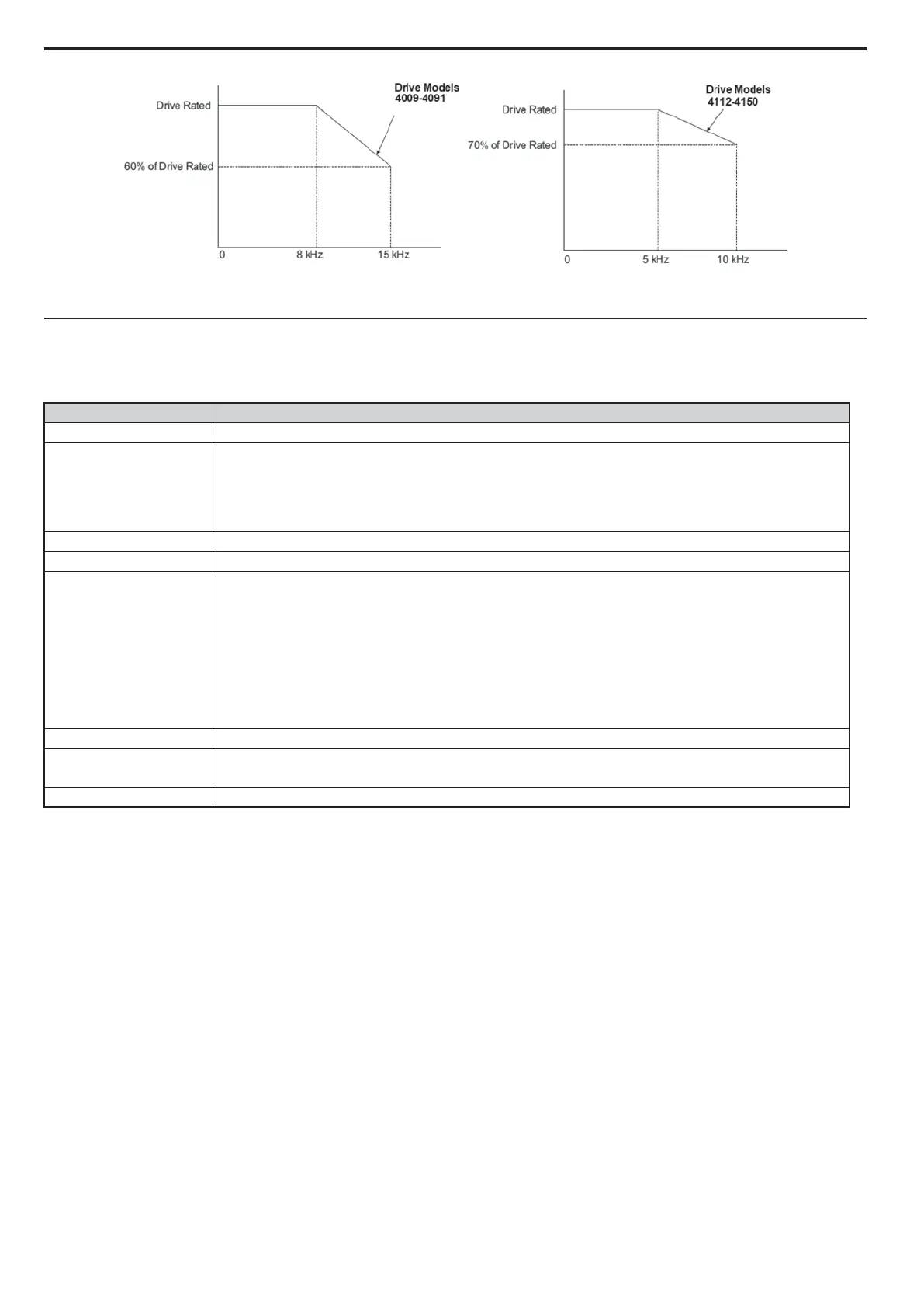

Figure 11
Figure 14 Rated Output Current
Installation Environment
For optimum performance life of the drive, install the drive in an environment that meets the conditions listed below.
Environment Conditions
Installation Area Indoors
Ambient Temperature
IP20 enclosure: -10 to +50°C
Drive reliability improves in environments without wide temperature fluctuations.
When using the drive in an enclosure panel, install a cooling fan or air conditioner in the area to ensure that the
air temperature inside the enclosure does not exceed the specified levels.
Do not allow ice to develop on the drive.
Humidity 95% RH or less and free of condensation
Storage Temperature -20 to +60°C
Surrounding Area
Install the drive in an area free from:
• oil mist and dust
• metal shavings, oil, water or other foreign materials
• radioactive materials
• combustible materials (e.g., wood)
• harmful gases and liquids
• excessive vibration
• chlorides
• direct sunlight
Altitude 1000 m or lower, up to 3000 m with derating (for details refer to the Technical Manual)
Vibration
10 to 20 Hz at 9.8 m/s
2
20 to 55 Hz at 5.9 m/s
2
(HPV1000-4009 to 4150)
Orientation Install the drive vertically to maintain maximum cooling effects.
