4 Keypad Operation
10 MAGNETEK HPV1000 AC Elevator Drive Technical Manual
Figure 2

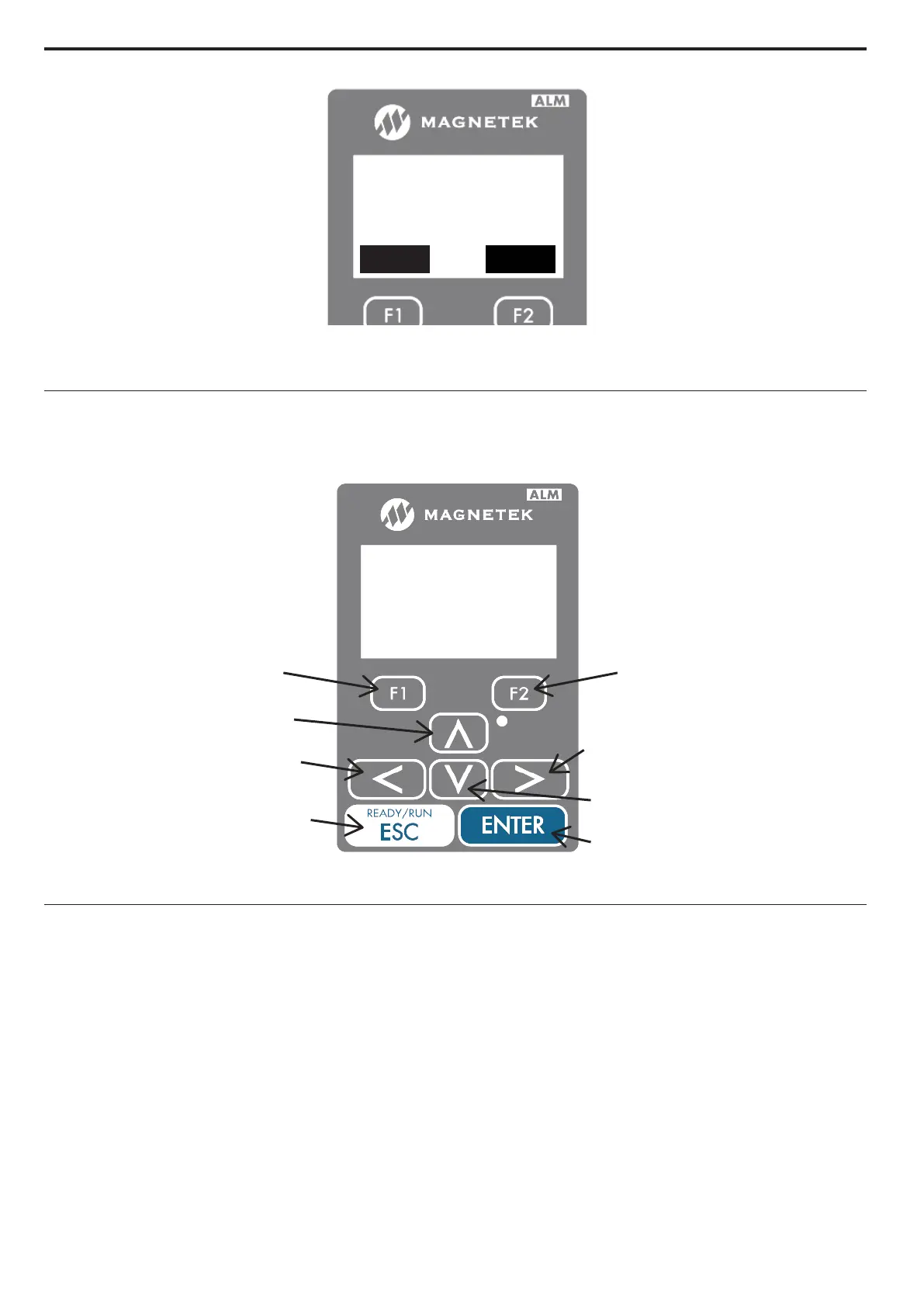

Figure 5 Alarm/Fault Splash Screen
To remove the splash screen, press the F2 key to select the reset.
Operator Keys
The Operator has eight functional keys as shown below:
Figure 3
Figure 6 Operator Keys
Menu Navigation
The menu operates on three levels: the menu level, the sub-menu level and the entry level. At the menu level, it allows
the user to navigate between menus or sub-menus. At the sub-menu level, it allows users to navigate between sub-menus
or menu items. At the entry level, it allows the user to change values or select different options.
PF
Input Pha Loss
RESET
F1 Key F2 Key
Up Key
Left Key Right Key
Escape
Key
Down Key
Enter Key
To Next Page
