Flex 4EX2 / 6EX2 MRX CE Instruction Manual

November 2018

Page 14 of 44

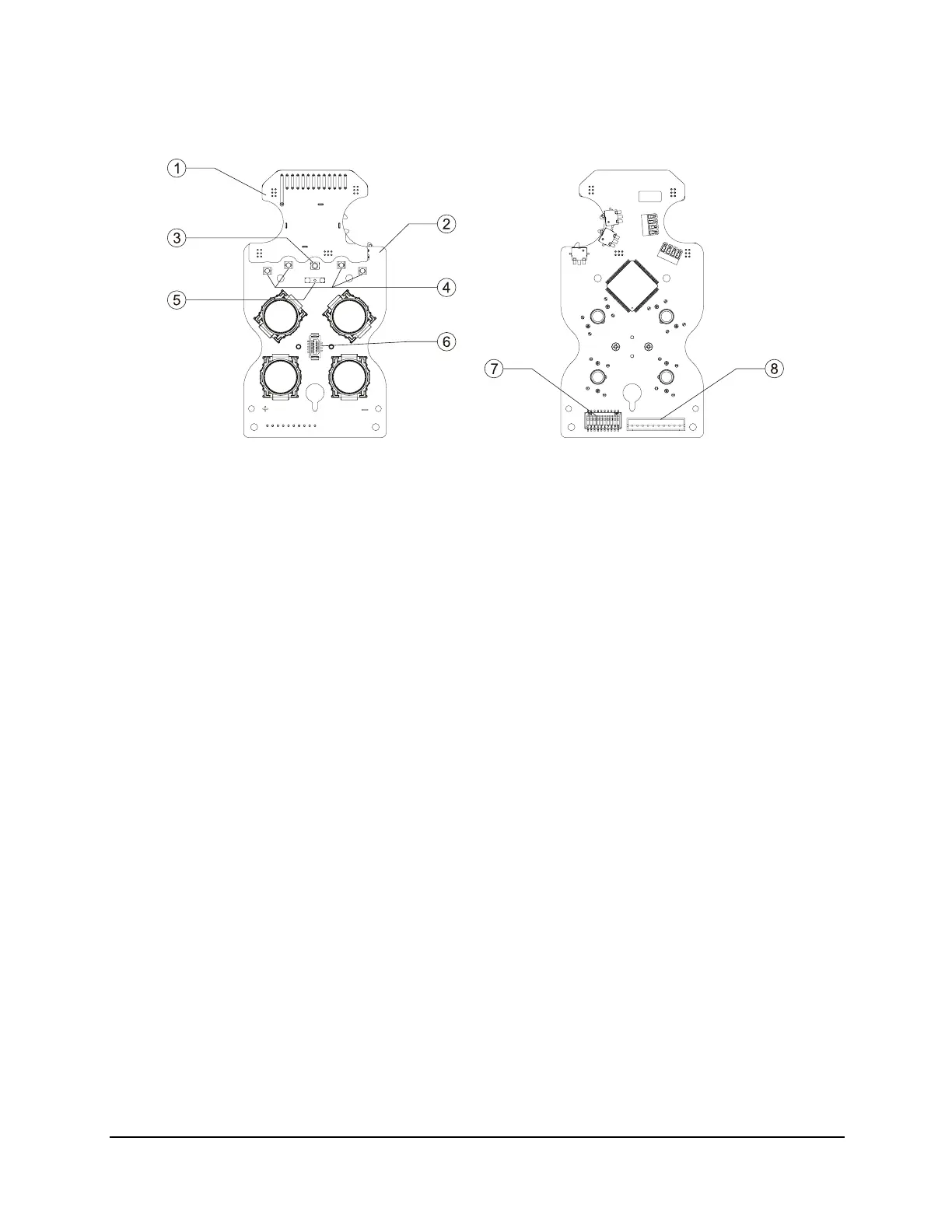

3.1.3 4EX2 Internal Illustration

* The programming port is only used for updating the transmitter firmware. It is not used with the IR

Programmer. For more information, contact Magnetek field service.

1. RF Transceiver Board 5. Infrared Sensors

2. Encoder Board 6. I-Chip Slot

3. Status LED Indicator 7. Function Dipswitch

4. LED 1/2/3/4 Indicators 8. Programming Port*
