Flex 4EX2 / 6EX2 MRX CE Instruction Manual
November 2018
Page 22 of 44
4.1.5 Transmitter Inactivity Timer Settings
Set how long the transmitter enters the sleep mode when not in use (pushbutton not
pressed). When transmitter goes into sleep mode the receiver MAIN relays are
deactivated.
4.1.6 Transmitter Output Power Settings
1mW offers the shortest operating range with lowest battery consumption while 10mW
offers the longest operating range with highest battery consumption. Default is 2mW.

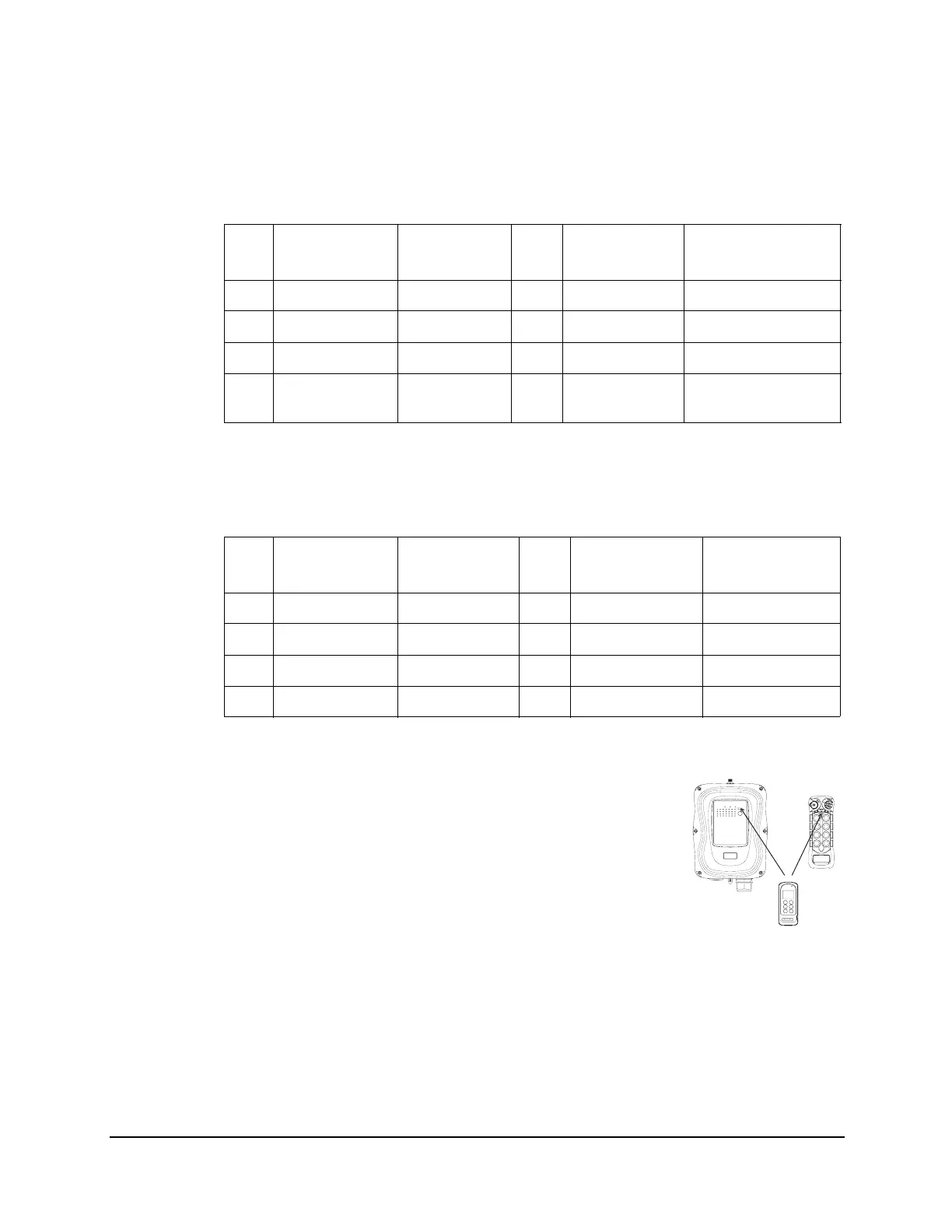

4.1.7 Infrared Programming
Other custom functions and settings not listed in this manual
can be programmed via the infrared IR programmer unit, such
as the system serial number, frequency range, relay output
status feedback, new and updated functions, and many others.
Please contact Magnetek field service for more details.
4.1.8 Pushbutton Function Settings
1. Rotate the power switch key to OFF ( 0 ) position.
2. With the STOP button elevated, press and hold PB3 and PB4 at the same time.
3. Rotate the power switch key to ON ( I ) position.
4. Release PB3 and PB4 at the same time. The system will enter Pushbutton Function
mode.
Dipswitch
Settings
Time
Dipswitch
Settings
Time
1 xxx000xxxx 1 minute 5 xxx100xxxx 10 minutes
2 xxx001xxxx 20 seconds 6 xxx101xxxx 30 minutes
3 xxx010xxxx 3 minutes 7 xxx110xxxx 60 minutes
4 xxx011xxxx 5 minutes 8 xxx111xxxx
Constant On (sleep
mode disabled)
Dipswitch
Settings
Output Power
Dipswitch
Settings
Output Power
1000xxxxxxx 1mW 5 100xxxxxxx 5mW
2001xxxxxxx 2mW 6 101xxxxxxx 6mW
3010xxxxxxx 3mW 7110xxxxxxx 8mW
4011xxxxxxx 4mW 8111xxxxxxx 10mW
