Flex 4EX2 / 6EX2 MRX CE Instruction Manual
November 2018
Page 16 of 44
3.2 Receiver

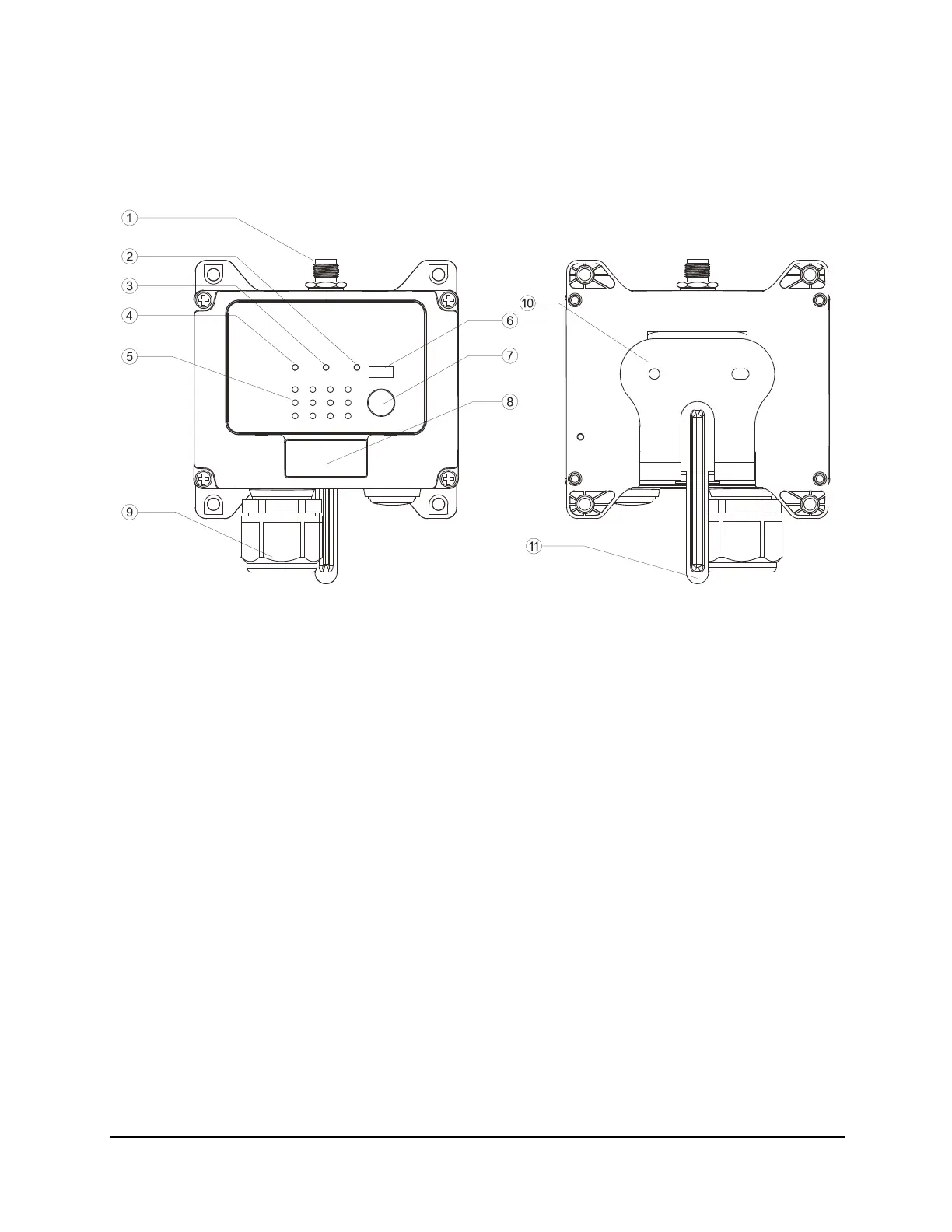

3.2.1 4EX2 and 6EX2 External Illustration
1. External Antenna Port (optional) 7. Remote Pairing Button
2. COM LED Indicator 8. System Information
3. Status LED Indicator 9. Cord Grip
4. Power LED Indicator 10. Mounting Bracket (optional)
5. Output Relay LED Indicators 11. Mounting Bracket Release
6. Infrared Sensors
