Use the following table to properly set the dip switches for the correct battery type (see Figure 9
for dip switch view):
Battery P/N Battery Type Dip switch 1 Dip switch 2
BT129-0 4.5V Alkaline Off Off
BT128-0 3.6V NiMH Off On

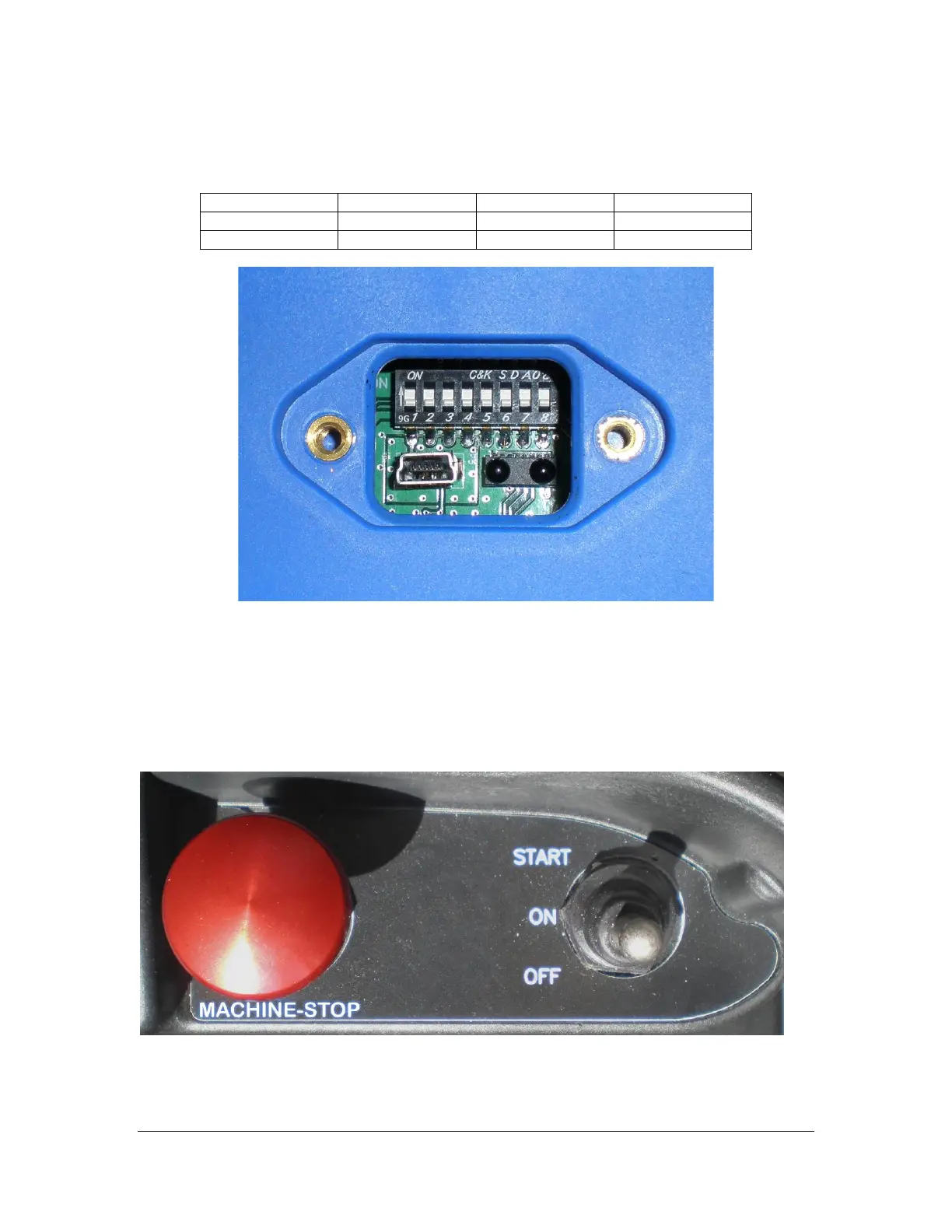

Figure 9: Dip Switch Block as Viewed through USB/IR Port
NOTE: The dip switch block switches are oriented so that the Off position is next to the number
designator and the On position is up or away from the number designator.
3.2 TURNING THE TRANSMITTER ON AND OFF
The XLTX uses both a three position toggle switch labeled OFF-ON-START and a Machine Stop
switch to turn the transmitter on or off.
Figure 10: Machine Stop Switch and OFF-ON-START Toggle
To Next Page
