7.4 CAN CONNECTOR RECEPTACLE PIN-OUT DETAILS
The CAN connector receptacle located on the transmitter has specific pin assignments. It is very
critical that these pin assignments are matched in the CAN cable assembly.

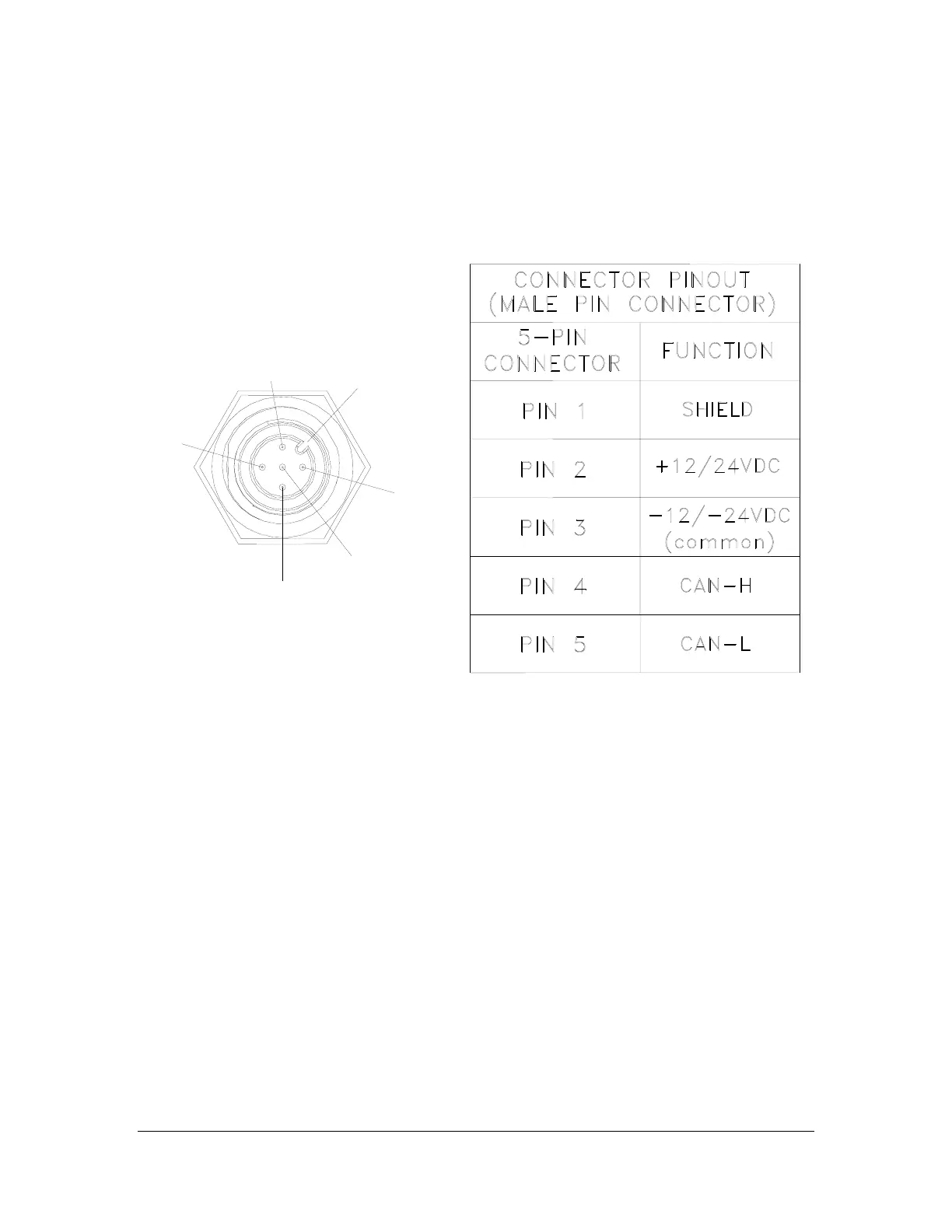

Figure 14: CAN Connector Pin Out Details
1
2
3
4
5
Keyway
