Battery Charger Instruction Manual – December 2015
10

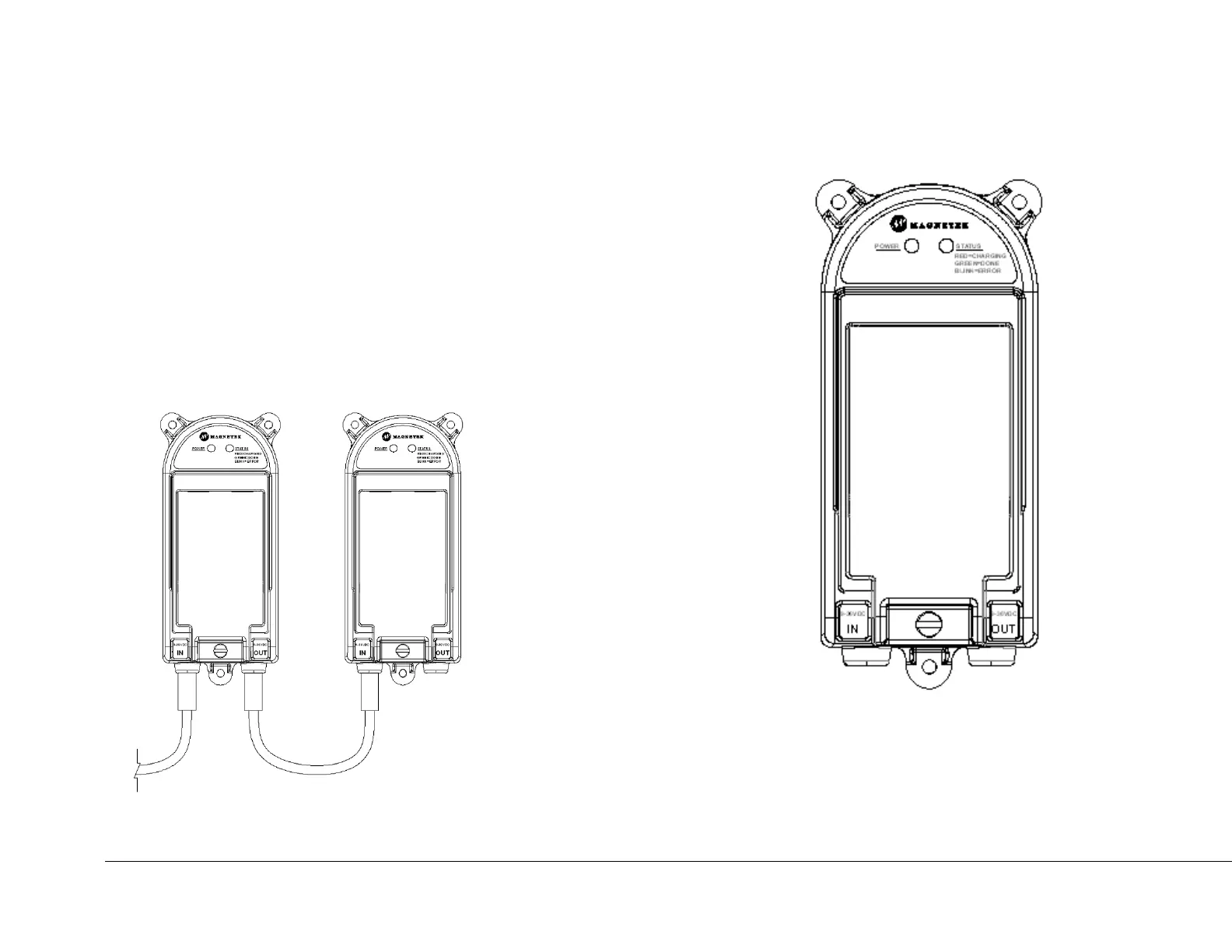

3) MULTIPLE CHARGERS (Max. 2)
1. You can only use up to two chargers with one power
supply. Using more will damage the charger and/or power
supply. This will also void the warranty.
2. Plug charger power supply adapter into 100 -240VAC 47-
63Hz power source. Plug the adapter jack in the charger
base connection labeled “IN”. The “POWER” light will come
on BLUE, indicating the unit is receiving power.
3. In the charger that has the power supply adapter, plug the
parallel cable (178-00203) in that charger base connection
labeled “OUT”.
4. In the next charger, plug the other end of the parallel cable
into the charge base connection labeled “IN”. The “POWER”
LED will light BLUE, indicating the unit is receiving power.
Battery Charger Instruction Manual – December 2015
3
BATTERY CHARGERS:
195-50363-0010: Battery Charger w/AC Power Adapter for
BT128-0 battery
195-50363-0020: Battery Charger w/DC Power Adapter for
BT128-0 battery
195-50363-0030: Battery Charger w/parallel cable for BT128-0
battery
