Engineered XLTX Transmitter Instruction Manual
December 2016
Page 31 of 49
5.4 PROGRAMMING WITH RCP
Read the section of the XLTX manual regarding additional operational features to familiarize
yourself with the features listed below. The XLTX transmitter can be programmed using the
optional RCP (Radio Control Programmer) software.
Magnetek RCP software makes the programming of the XLTX transmitter easier and allows the
programmer to store all of the XLTX settings in files for later use or reference. The RCP software
also allows the programmer to customize the XLTX transmitter display with language descriptions
that are project or machine-specific. Help is provided for each function at the bottom of the RCP
screen. The RCP software allows you to select frequency, access code, transmitter power, as
well as CAN configuration. Follow the steps below:
Install the RCP Software
Install the RCP software onto your computer. The software is self-installing; simply insert the
jump drive into any available USB port and follow the onscreen prompts. Refer to the installation
instruction sheet for help. You will be prompted to enter an activation code. The code can be
found on the jump drive’s outer case and on the installation instructions. The software cannot be
used without this code.
Run the RCP Software

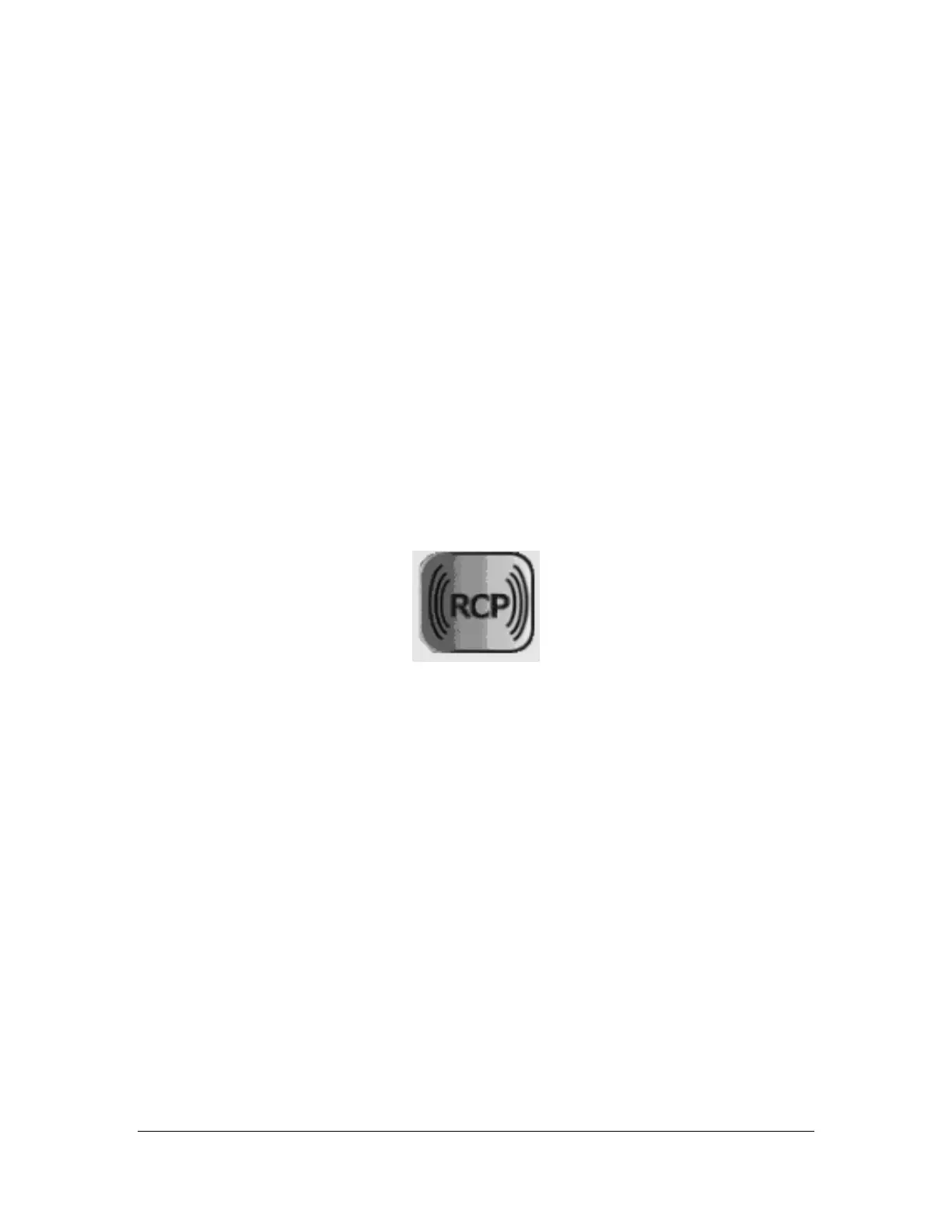

After installation of the RCP Software, double click the RCP icon to launch the program.
Click on New Project or Open Project
Select “New Project” if you are creating a new program file. Select “Open Project” if you want to
retrieve an existing program file. A list of recent projects will appear under “Open Project.”
Clicking on one of these will open that project. It is recommended that you create a folder in
which to save all programming files.
