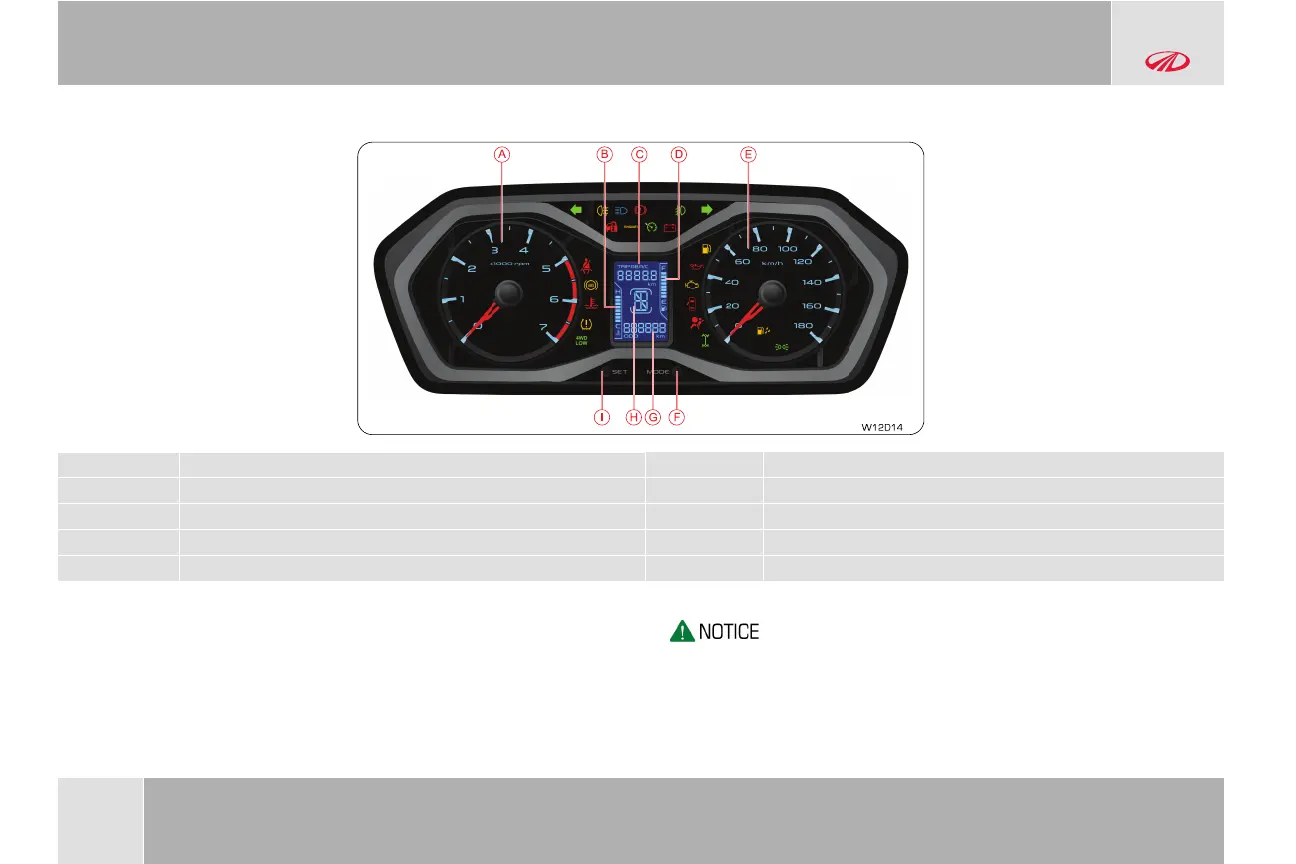

8.32 Instrument Cluster - Type 2
A
I GH F
W12D14
B
D
EC
A
Tachometer / RPM Gauge
F Mode Button
B
Temperature Gauge
G Odometer
C
Trip Meter
H Gear Indicator
D
Fuel Gauge
I Set Button
E
Speedometer
8.33 Instrument Cluster Gauges
The instrument cluster comprises of the tachometer, speedometer,
trip meter (A & B), SET button, MODE button, odometer, fuel gauge,
coolant temperature gauge, warning lamps and telltale indicators.
All the gauges have pre-check (All the gauges will show full
deflection and will come back to zero). In case of signal missing
FEATURES AND CONTROL
