directing air flow towards both the face and feet of passengers
at the same time
• Foot Mode — air is discharged from the two foot vents and rear
vents. This mode is most suitable for directing air flow towards
the feet of passengers seated on front seats
• Foot-Defrost Mode — air is discharged from the foot vents, side
defrost vents, rear vents and windshield defrost vents. This
mode is most suitable for directing air flow towards the feet of
passengers while defrosting or de-misting/defogging. Keep the
air re-circulation in fresh air mode
• Defrost Mode — air is discharged from the side defrost vents
and windshield defrost vents. This mode is most suitable for
directing air flow towards the front windshield to ensure
defrosting or de-misting / defogging. Keep the air re-circulation
in fresh air mode

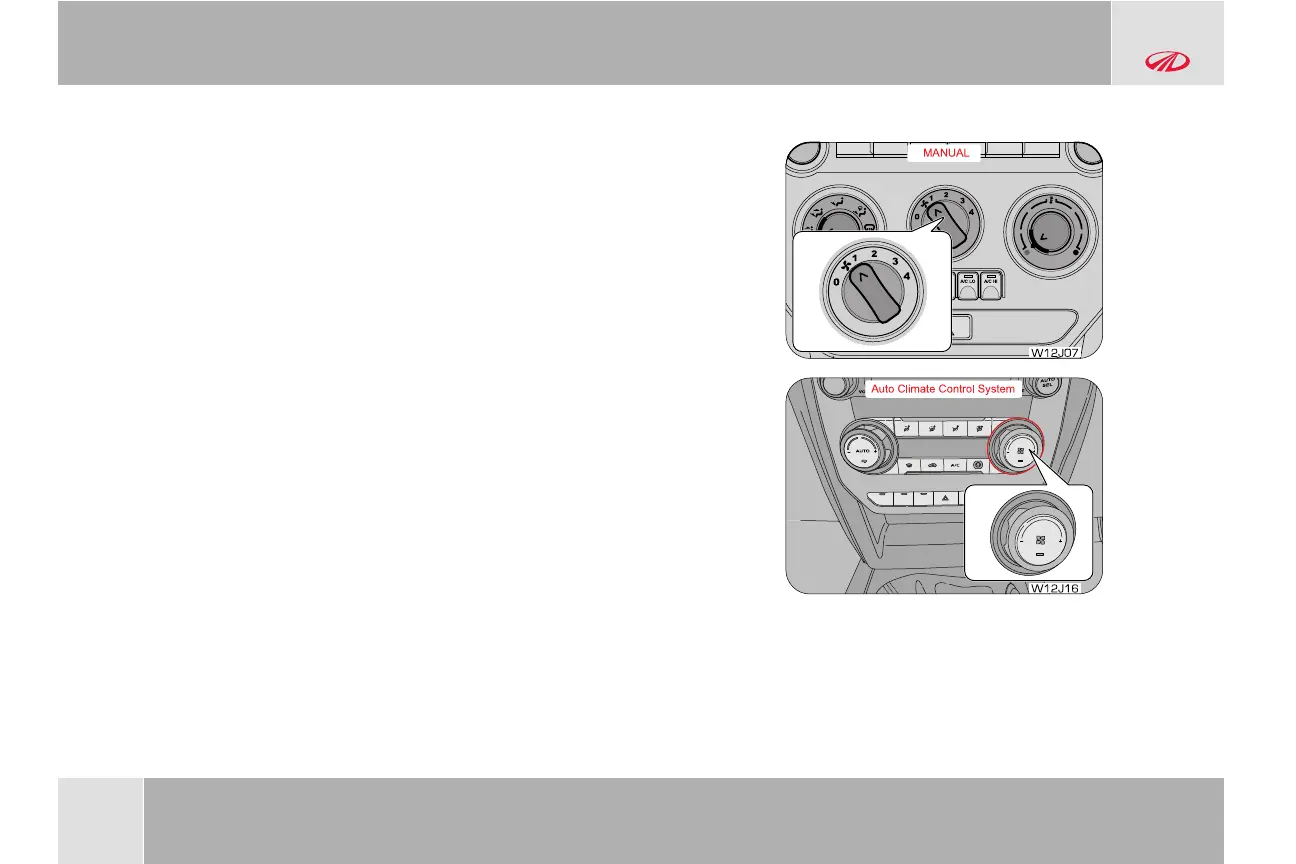

10.8 Blower Speed Control
A/C LO A/C HI
W12J07
MANUAL
W12J16
Auto Climate Control System
The blower force-circulates air through the HVAC unit and
distributes it throughout the passenger compartment.
Blower is off` when the blower speed control knob is set in the ‘0’/
‘—’ position. To switch-on the blower, rotate the control knob
clockwise to position ‘1’/‘+’. To increase the blower speed, rotate
