© Copyright Mahindra & Mahindra Ltd. 012016
10-5

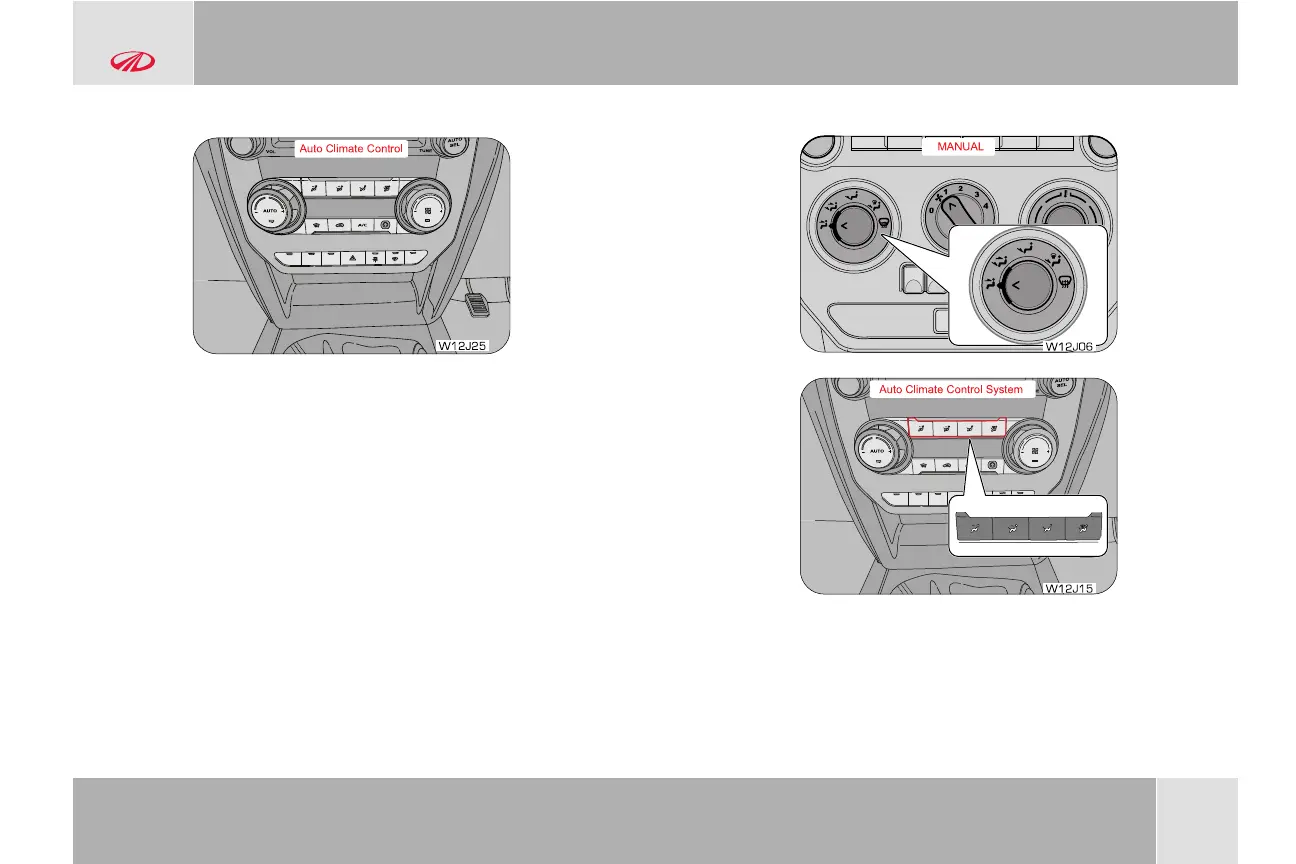

10.6 Automatic Climate Controller
Auto Climate Control
W12J25
Your vehicle comes with an Automatic Climate Control system
which automatically maintains the desired comfort level in the
vehicle as directed by set temp. The temperature ranges from low
(17
o
C) to high (32
o
C). The system automatically maintains the air
flow, air mode and set temperature according to the outside
temperature conditions. You can exit the auto mode by pressing
the Auto switch or by changing the mode or by blower speed or by
pressing full defrost. The controller has an LCD panel which shows
the blower speed, set mode, set temperature, auto and AC status.
Mode and AC status is indicated by the LED glow on the respective
switches.
10.7 Air Distribution Control
The air flowing out of various vents can be controlled by the air
distribution control knob/button.
Following are the five different distribution modes to choose from:
A/C LO A/C HI
W12J06
MANUAL
Auto Climate Control System
W12J15
• Face Mode — air is discharged from the center vents, rear vents
and side vents. This mode is most suitable for directing air flow
towards the face of the passengers
• Face-Foot Mode — air is discharged from the center vents, side
vents, rear and foot vents. This mode is most suitable for
HEATING, VENTILATION AND AIR-CONDITIONING SYSTEM (HVAC)
To Next Page
