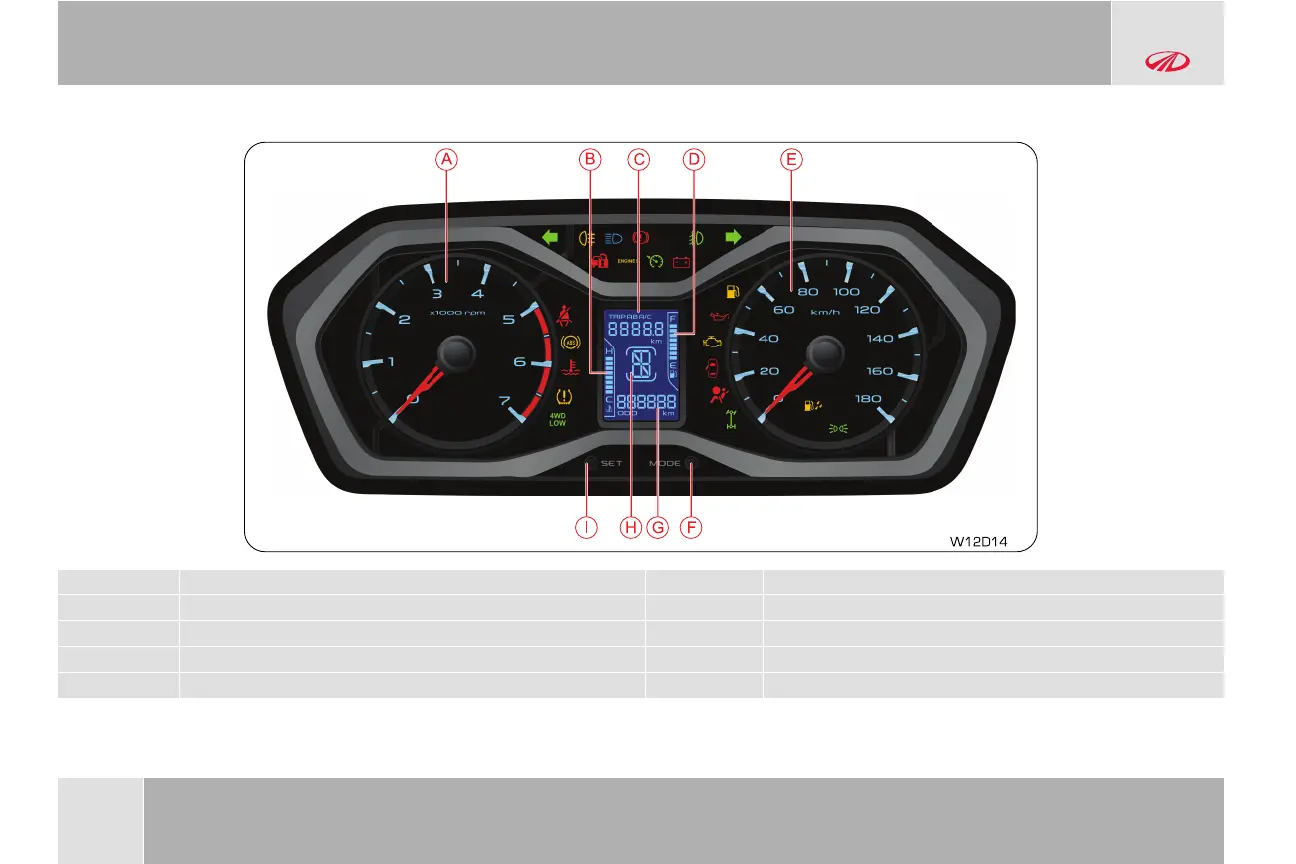

4.2 Instrument Cluster - Type 2
A
I GH F
W12D14
B
D
EC
A
Tachometer / RPM Gauge
F Mode Button
B
Temperature Gauge
G Odometer
C
Trip Meter
H Gear Indicator
D
Fuel Gauge
I Set Button
E
Speedometer
INSTRUMENT CLUSTER OVERVIEW
